Addressing Industrial Storage Pain Points
● A recent client required a solution for:Storing 4,000×1,300mm panels
● Crane-accessible drawer loading/unloading
● 1,000kg per drawer capacity
● High-density vertical storage in limited floor space
The CFS metal sheet rack vertical met these demands through precision engineering. Technical Specifications for Heavy-Duty Performance
| Feature | Detail | Advantage |
| Panel dimensions | 4,000×1,300mm capacity | Accommodates aerospace/shipbuilding materials |
| Configuration | 12 roll-out drawers | 40% space savings vs horizontal racks |
| Load capacity | 1,000kg/drawer | Supports industrial metal sheets |
| Frame design | 60×3mm steel tubing | 1,820kg structural integrity |
| Operational clearance | 10,080mm recommended | Full crane access without obstructions |
Intelligent Space Optimization

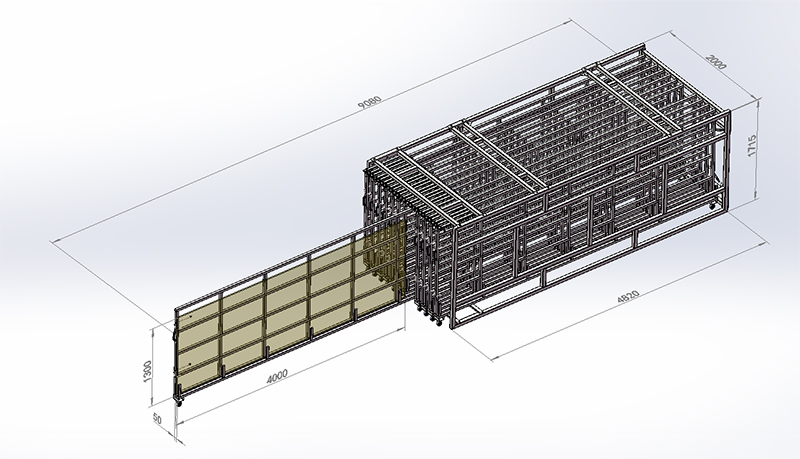

● The roll-out vertical sheet rack design enables:Extended operation length: 9,080mm (10,080mm clearance ideal)
● Compact retracted footprint: 4,820×1,715mm
● Vertical storage density for large-format materials
Crane-Ready Safety Features
● Full-extension drawer system with 100mm safety margins
● Reinforced 40×2mm steel drawer guides
● Visual load indicators & anti-slip surfaces
● Dedicated panel slots to prevent edge damage
Global Logistics Readiness
● Pre-assembled units (5,100×1,900mm) ship in standard 20ft containers
● Mobile wheeled base simplifies positioning
● Protection options:
Economy: Reinforced stretch wrap ($13/sqm equivalent)
Premium: Custom crating for international transport Why Manufacturers Choose CFS Vertical Racks
1. Workflow Integration Direct compatibility with overhead cranes
a. Eliminates manual lifting injuries
2. Material Preservation Scratch-resistant surfaces
a. Organized inventory management
3. Durability 10,000+ cycle testing certification
a. Corrosion-resistant finishes
Ideal Applications
● Metal fabrication plants
● Aerospace component storage
● Shipbuilding plate organization
● Automotive stamping material handling
Implementation Best Practices
1. Verify 10.5m ceiling clearance for crane operations
2. Install on leveled concrete floors
3. Schedule bi-annual roller mechanism maintenance
Transform Your Material Storage
● The CFS sheet metal flat stock vertical storage rack system redefines industrial efficiency, offering:72-hour ROI through reduced handling time
● OSHA-compliant safety enhancements
● Scalable configurations up to 24 drawers
Engineered for manufacturers prioritizing space optimization and workflow safety, this vertical storage solution enables smarter material management. Contact CFS engineers to design a custom rack system for your panel dimensions and throughput requirements.
