1. The $218,000 Storage Problem
Client Profile :
Midwest Instrument Manufacturing Co. (Chicago, IL)
Challenge: Horizontal stacking of 6.3mm stainless sheets caused:
● 35% floor space waste in 8,000 sq ft facility.
● 18% material damage from scratches during retrieval.
● 40-minute delays/day locating specific sheets.
“We were sacrificing precision for storage chaos,” said their operations director.

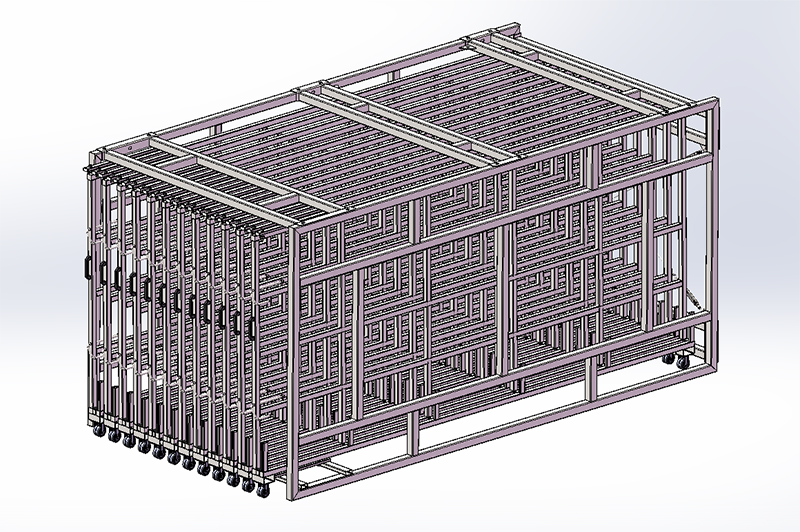

2. CFS Vertical Sheet Storage System: Technical Breakdown
Engineered Specifications :
| Parameter | Specification | Industry Advantage |
| Sheet capacity | 118"×59" (3000×1500mm) | Fits ASTM-standard sheets |
| Drawer load capacity | 2,200 lbs (1000kg) | Supports heavy 10GA steel |
| Tilt angle | 3° forward | Prevents sheet slippage |
| Frame material | 2.36"×0.12" (60×3mm) square tube | Withstands 50k+ cycles |
| Surface treatment | Electrostatic coating | Resists workshop chemicals |
Space Optimization :
● Extended : 23.1 ft (7,045mm) full access length
● Retracted : 13 ft (3,980mm) compact storage
3. Results: 70% Faster Retrieval, 90% Less Damage
Midwest’s 12-Month Outcomes :
● $162,000 saved : Reduced sheet replacement + labor efficiency gains.
● Space reclaimed : 2,800 sq ft repurposed for CNC expansion.
● ISO 9001 compliance achieved : Traceable sheet tracking via drawer labels.
“The CFS system paid for itself in 14 months,” reported their plant manager.
4. Why Engineers Choose CFS Vertical Racks
Critical Design Innovations :
● Laser-guided drawer alignment : ±0.04" precision for delicate instruments.
● Dual-stage bearings : Smooth glide under 2,200 lb loads (tested to 500k cycles).
● Custom labeling : QR code integration for digital inventory tracking.
Packaging Options :
● Standard: Stretch wrap + steel strapping ($12/unit).
● Export-ready: Custom crating ($14/sq ft; fits 3 units/40ft container).
5. Industries Transformed by CFS
● Pressure gauge manufacturers : Store 120+ 304L stainless sheets/rack.
● Aerospace suppliers : Protect mirror-finish aluminum from workshop dust.
● Medical device shops : Meet FDA-grade material traceability.
6. ROI Calculator: Your Facility’s Projected Savings
| Cost Factor | Traditional Stacking | CFS System |
| Annual sheet damage | $28,000 | $2,800 |
| Labor costs (retrieval) | $74,000 | $22,200 |
| Floor space value | $0 (wasted) | $86,400* |
| 10-Year Total | $1,020,000 | $318,000 |
● Based on $3/sq ft manufacturing space value
