Critical Storage Challenges Solved
● A recent automotive client required:Secure storage for panels up to 130"×96"
● 5,000 lb capacity per drawer
● Vertical configuration for 15-foot spaces
● Tilt-prevention engineering
The CFS sheet metal rack vertical system delivered through these innovations: Industrial-Grade Specifications
| Feature | Technical Detail | Operational Advantage |
| Panel capacity | 130"×96"×10" | Accommodates oversized sheets |
| Load capacity | 5,000 lbs/drawer | Supports heavy-gauge metals |
| Storage density | 10 vertical drawers | 65% space savings vs horizontal racks |
| Tilt control | 2° engineered angle | Prevents material slippage |
| Structural integrity | 7,275 lb steel frame | Exceeds ANSI safety standards |

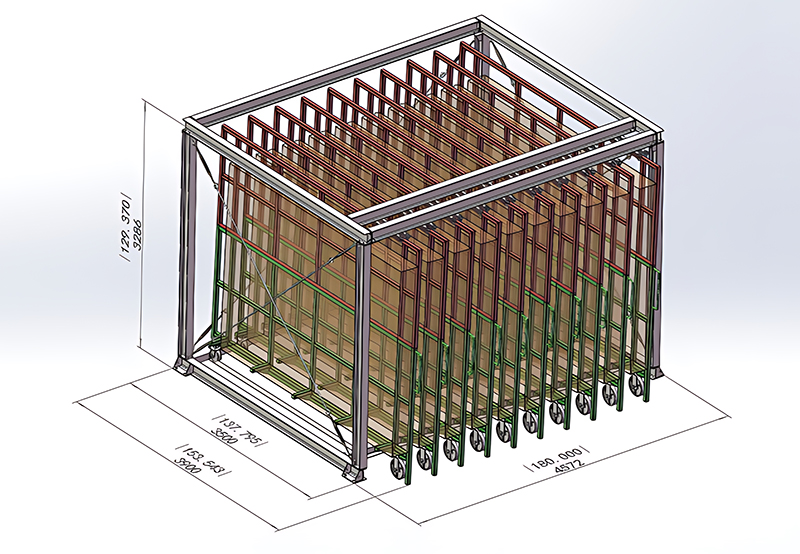

Space-Optimized Design
● The CFS sheet metal storage rack vertical system features:Vertical configuration maximizing warehouse cube utilization
● Compact 15-foot footprint with 263" full extension
● Modular bolt-together construction for flexible layouts
● Adjustable rollers with 100mm positioning increments
Safety-Engineered Operation
● Reinforced V-guide wheels on 50×50mm steel tracks (2-ton capacity)
● Visual load indicators & non-slip surface treatments
● Dedicated panel slots to prevent edge deformation
● OSHA-compliant tilt prevention system
Global Logistics Ready
● Knock-down shipping fits standard 20ft containers
● Protection options:
Economy: Industrial stretch wrap ($14/sqm equivalent)
● Premium: Custom crating for overseas transportMobile base with 10" heavy-duty casters
Why Manufacturers Choose CFS
1. Workflow Efficiency 60% faster material retrieval vs traditional racks
a. Full extension access for overhead cranes
2. Material Protection Scratch-resistant epoxy coating
a. Isolated storage compartments
3. Scalable Configuration Expandable up to 24 drawers
a. Adjustable for future capacity increases
Ideal Industrial Applications
● Automotive stamping plants
● Aerospace component fabrication
● Building material manufacturers
● Heavy equipment production lines
Installation Best Practices
1. Anchor to 6" concrete floors using expansion bolts
2. Maintain 12" clearance for full drawer extension
3. Conduct quarterly wheel track inspections
Transform Metal Storage Workflows
● The CFS vertical sheet metal storage rack system delivers measurable ROI through:80% reduction in panel handling time
● 50% less floor space vs horizontal storage
● Eliminated material damage claims
Engineered for facilities prioritizing both safety and storage density, this solution redefines industrial material management. Contact CFS engineers to design a customized vertical rack system tailored to your panel dimensions and throughput needs.
