Critical Operational Challenges Addressed
● A recent client in shipbuilding required:Secure storage for 120"×78" steel plates
● 100+ daily crane access cycles
● Choice between 1-ton and 2-ton drawer capacities
● 6-drawer vertical configuration

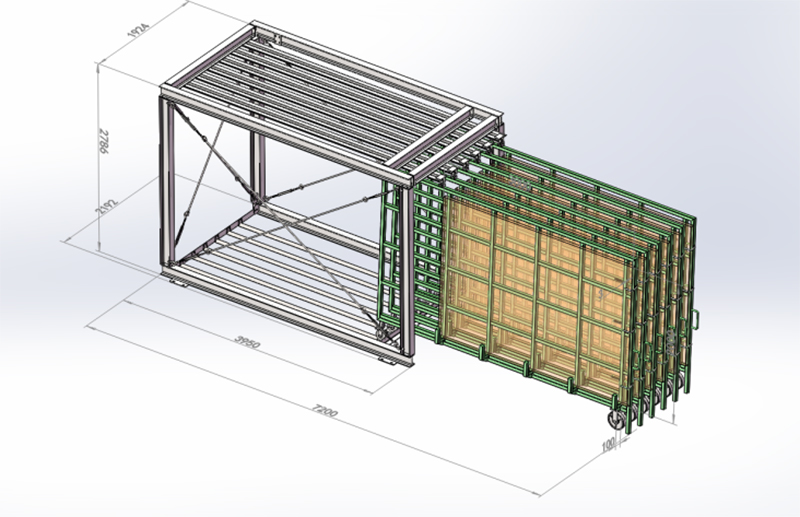

The CFS vertical roll-out sheet metal rack system delivered through these innovations: Precision Engineering Specifications
| Feature | 2-Ton System | 1-Ton System |
| Capacity/Drawer | 4,400 lbs | 2,200 lbs |
| Drawer Extension | 283" (7200mm) | 275" (7000mm) |
| Wheel System | Steel V-guide | Polyurethane dual-row |
| Frame Construction | 1" thick steel beams | 3/4" reinforced steel |
| Safety Tilt | 3° anti-slip | 2° secure angle |
Space-Optimized Vertical Design
● Compact 163" (4150mm) retracted footprint
● Vertical configuration saves 55% floor space vs horizontal racks
● Modular design adapts to existing facility layouts
● 6-drawer system stores 72 standard plates
Crane-Ready Operation Features
● Full 283" drawer extension for complete plate access
● 12" clearance margin for overhead crane operation
● Durable track systems withstand 200+ daily cycles
● Laser-aligned V-guide wheels eliminate binding
Safety-Engineered Components
● Triple anti-tip rail system (ASTM certified)
● Visual load capacity indicators
● Reinforced drawer stops prevent over-extension
● Powder-coated surfaces resist industrial wear
Global Logistics Solutions
● Knock-down shipping fits 40ft containers
● Protection packages:
Economy: Heavy-duty stretch wrap ($14/sqm)
● Premium: Custom crating for overseas transport30-day assembly support with 3D installation guides
Why Manufacturers Choose CFS
1. Workflow Optimization 50% faster plate retrieval vs traditional methods
a. Dedicated slots prevent edge damage
2. Scalable Configurations Expandable from 6 to 24 drawers
a. Compatible with all major crane systems
3. Cost Efficiency 18-month ROI through reduced handling time
a. Low-maintenance galvanized components
Ideal Industrial Applications
● Steel distribution centers
● Heavy machinery manufacturing
● Bridge component fabrication
● Energy sector plate processing
Implementation Best Practices
1. Anchor to 8" concrete floors using M20 bolts
2. Maintain 6-month lubrication intervals
3. Conduct annual structural inspections
Transform Plate Storage Workflows
● CFS vertical metal storage racks deliver measurable operational improvements:90% reduction in plate handling accidents
● 60% faster inventory rotation
● 40% space utilization improvement
Engineered for high-cycle industrial environments, these vertical roll-out sheet metal racks combine safety with operational precision. Contact CFS storage engineers to design a customized solution matching your plate dimensions and access frequency requirements.
