Critical Storage Challenges Solved
● A commercial signage manufacturer required:Dual storage for 10'×7' acrylic and 11'×7' metal sheets
● 1,100 lb capacity per shelf
● Scratch prevention for high-value surfaces
● Vertical configuration in existing 28'×40' warehouse
The CFS vertical sheet metal rack system delivered through these innovations: Precision Storage Specifications
| Feature | System 1 (Standard) | System 2 (Heavy-Duty) |
| Panel Capacity | 10'×5' | 11'×7' |
| Shelf Capacity | 1,100 lbs | 1,100 lbs |
| Vertical Clearance | 14' 4" | 16' 5" |
| Material Spacing | 1.75" | 3.9" |
| Frame Construction | Powder-coated steel | Galvanized steel |

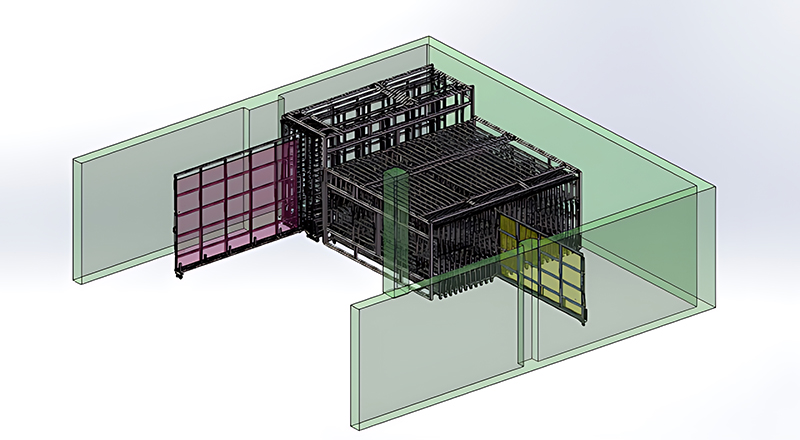

Space-Optimized Warehouse Integration
● Vertical sheet metal storage configuration saves 40% floor space
● Modular design adapts to existing column layouts
● Dual-system installation in 40ft warehouse sections
● Clear 8' aisles for forklift access
Material Protection Engineering
● Non-marking polyurethane rollers (200 lb/ft linear capacity)
● Adjustable dividers prevent panel shifting
● Scratch-resistant epoxy shelf surfaces
● Climate-controlled spacing prevents warping
Industrial-Grade Operation Features
● Smooth-glide roll-out shelves (70% reduction in access effort)
● Laser-aligned tracking system (±0.12" tolerance)
● Visual load indicators with color-coded capacity zones
● OSHA-compliant safety stops at 85% extension
Global Logistics Solutions
● Knock-down ships in standard 40HC containers
● Protection packages:
Economy: Heavy-duty shrink wrap ($14/sqm)
● Premium: Custom crating for transoceanic transport3D interactive assembly guides with AR support
Why Manufacturers Choose CFS
1. Multi-Material Versatility Stores acrylic, wood, and sheet metal panels
a. Quick-change shelf configurations
2. Workflow Efficiency 65% faster material retrieval vs static racks
a. RFID-ready inventory tracking slots
3. Long-Term Durability 100,000-cycle shelf glide testing certification
a. 10-year corrosion warranty
Ideal Industrial Applications
● Commercial signage production
● Architectural metal fabricators
● Aerospace composite storage
● Retail display manufacturing
Implementation Best Practices
1. Install on leveled concrete (6 PSF minimum)
2. Maintain 18" clearance behind racks
3. Conduct semi-annual roller bearing inspections
Transform Material Storage Operations
● CFS vertical sheet metal racks with roll-out shelves deliver measurable ROI:80% reduction in surface damage claims
● 50% faster inventory turnover
● 35% warehouse space reallocation
Engineered for facilities prioritizing both material integrity and storage density, these systems adapt to evolving production needs. Contact CFS storage engineers to design a customized vertical solution for your panel types and workflow requirements.
