Critical Storage Challenges Addressed
● A signage manufacturer required:Safe handling of 8'×4' acrylic and metal sheets
● 175kg operational load capacity per shelf
● High-density storage in 10ft-wide spaces
● Scratch prevention for premium surfaces

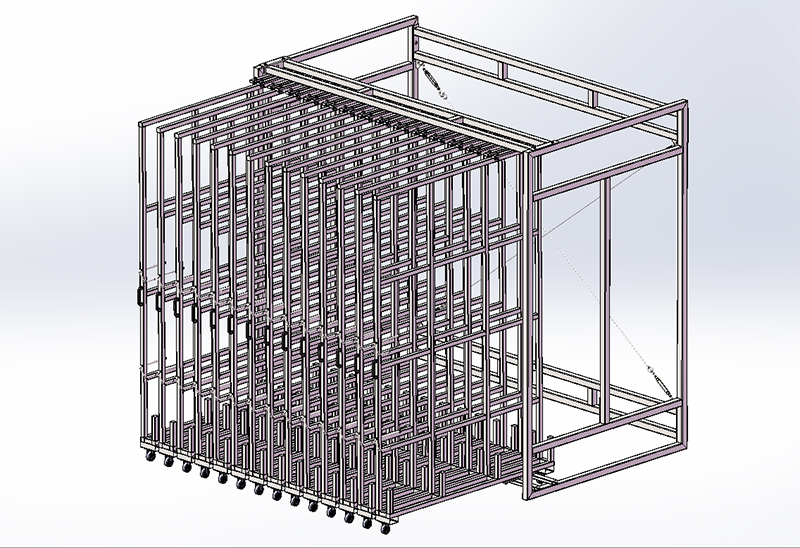

The CFS vertical sheet steel rack system delivered through these innovations: Technical Specifications
| Feature | Specification | Benefit |
| Panel Capacity | 98"×50" (2490×1270mm) | Accommodates industry-standard sheets |
| Shelf Load | 660 lbs (300kg) | 2:1 safety margin for 385 lbs operational |
| Vertical Configuration | 14 roll-out shelves | Stores 350+ sheets in 10ft width |
| Material Spacing | 3" (76mm) | Prevents surface contact damage |
| Structural Integrity | 2,645 lb total weight | Vibration-resistant stability |
Space-Optimized Design
● Vertical sheet metal storage system saves 40% floor space vs horizontal racks
● Modular assembly adapts to 8-14 shelf configurations
● 9.5ft height utilizes vertical cube in standard facilities
● Clear 51" drawer extension for full panel access
Material Protection Engineering
● Non-abrasive nylon glide rails (0.08μ surface roughness)
● Adjustable dividers with EPDM bumpers
● Climate-controlled spacing prevents thermal warping
● UV-resistant powder coating (RAL 9005)
Industrial-Grade Operation
● Dual-track bearing system (200+ daily cycles certified)
● Ergonomic handles at 51" working height
● Laser-etched load capacity indicators
● OSHA-compliant safety stops at 85% extension
Global Logistics Solutions
● Knock-down ships in 20ft containers (2 systems/container)
● Protection packages:
Economy: Military-grade stretch wrap ($14/sqm)
● Premium: Custom ABS crating for overseas transportQR-coded assembly instructions with video support
Why Choose CFS Vertical Sheet Racks
1. Multi-Material Versatility Stores 0.08"-1" thick metal/plastic sheets
a. Quick-change configurations within 2 hours
2. Workflow Optimization 65% faster retrieval vs traditional shelving
a. Simultaneous access to all 14 shelves
3. Lifecycle Value 100,000-cycle durability certification
a. 7-year corrosion warranty
Ideal Applications
● Aerospace composite storage
● Architectural metal fabricators
● Retail display manufacturing
● Automotive trim production
Implementation Protocol
1. Install on leveled concrete (≥4,000 PSI)
2. Maintain 18" rear clearance for airflow
3. Conduct quarterly track lubrication
Transform Material Handling
● CFS vertical sheet steel rack systems deliver measurable ROI:78% reduction in surface rejection rates
● 55% faster inventory turnover
● 30% warehouse space reallocation
Engineered for precision-driven facilities, these vertical storage solutions protect materials while optimizing operational workflows. Contact CFS storage engineers to design a customized system for your sheet specifications and facility parameters.
