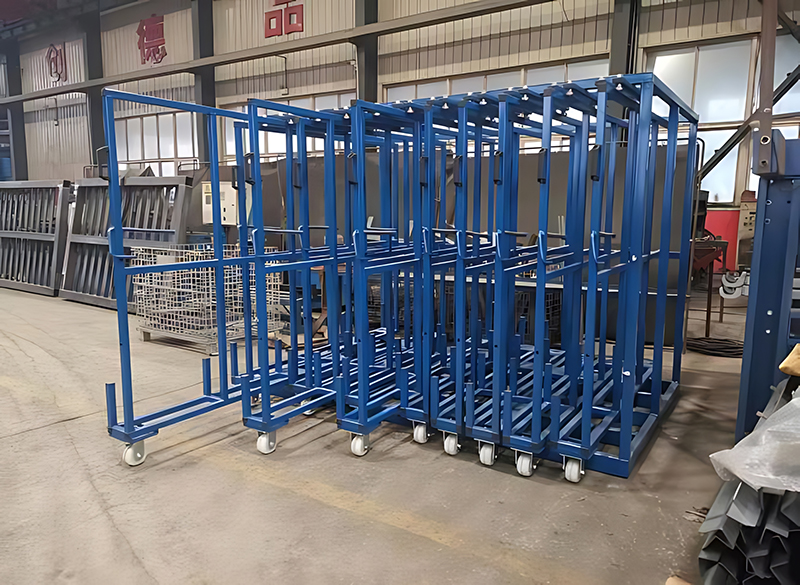

CFS engineers heavy-duty vertical storage racks that secure glass and metal sheets up to 9'×5', combining crane-ready access with industrial-grade protection. Our systems solve critical storage challenges for manufacturers prioritizing material integrity.
Critical Storage Requirements Met
● An architectural glass client required:Secure storage for 9'×4.5' panels
● 1,100 lb capacity per shelf
● Full crane accessibility
● Zero surface contact protection
The CFS vertical sheet storage system delivered through these innovations: Precision Engineering Specifications
| Feature | Specification | Industrial Benefit |
| Panel Capacity | 110"×55" (2800×1400mm) | Accommodates jumbo formats |
| Load Capacity | 1,100 lbs (500kg) | 2:1 safety margin for glass/metal |
| Vertical Configuration | 10 adjustable shelves | Stores 50+ panels per unit |
| Protection Spacing | 4" (100mm) | Eliminates panel-to-panel contact |
| Structural Integrity | 2,513 lb frame weight | Earthquake-resistant stability |
Material Protection Technology
● Multi-layer EPDM cushioning (70 Shore hardness)
● Spring-loaded retention bars with 220 lb tension control
● Anti-microbial PVC edge protectors
● Laser-aligned shelf tracking (±0.08" tolerance)
Industrial Operation Features
● Full 155" drawer extension for vacuum lifter access
● Quad-wheel guidance system (400+ daily cycles certified)
● Visual load indicators with color-coded zones
● OSHA-compliant safety stops at 90% extension
Global Logistics Configuration
● Ships knocked-down in 40ft containers (3 units/container)
● Protection packages:
Economy: Military-grade pallet wrap ($16/sqm)
● Premium: Custom ABS crating for transoceanic transportAR-assisted assembly via mobile app
Why Choose CFS Vertical Storage Racks
1. Multi-Material Versatility Stores glass, acrylic, and 12-gauge metal sheets
a. Quick-change configurations for mixed inventories
2. Workflow Optimization 55% faster material retrieval vs traditional racks
a. Simultaneous access to all 10 shelves
3. Lifecycle Value 100,000-cycle durability certification
a. 10-year structural warranty
Ideal Industrial Applications
● Automotive glass manufacturing
● Architectural metal cladding storage
● Aerospace composite handling
● Retail display fabrication
Implementation Protocol
1. Install on seismic-rated foundations
2. Maintain 24" operational clearance
3. Conduct bi-annual tension calibration
Transform Panel Storage Operations
● CFS vertical storage racks for sheet metal and glass deliver measurable ROI:90% reduction in surface damage incidents
● 60% faster production line feeding
● 35% warehouse space reallocation
