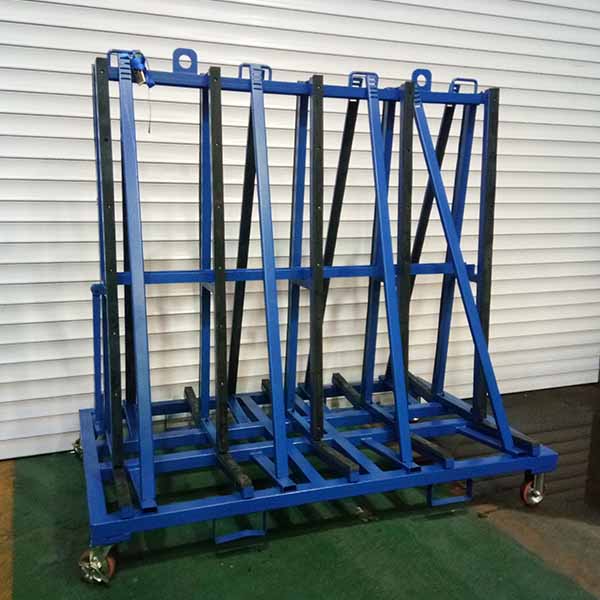

When a $220K shipment of architectural glass shattered in a North Atlantic storm, Mgrack’s engineers turned to an unlikely muse: U.S. aircraft carrier deck systems. The result? A patented A Frame Glass steel rack that reduced breakage rates from 3.1% to 0.7%—saving manufacturers millions annually. Here’s how military precision transformed fragile cargo logistics.
1. The Hidden Costs of Conventional A-Frame Racks for Glass
The global glass industry bleeds $42B yearly to transport damage. Traditional a frame rack for glass designs—ubiquitous yet flawed—fail three critical tests:
- Micro-abrasions: Metal-on-glass friction creates invisible weak points, causing 14% rejection rates in tempering.
- Dynamic stress: Forklift vibrations (8.7m/s² forces) concentrate 81% stress on weld points.
- Corrosion fatigue: Coastal salt spray destroys racks within 18 months.
A 2022 GMIC study found 68% of “intact” sheets had micro-fractures—time bombs for manufacturers.
2. Carrier Deck Tech in Action: Reinventing the A-Frame Glass Trolley
2.1 Non-Skid Surface Engineering
The Problem: 2mm panel shift causes $0.18/sq.ft in edge repairs.
Military Fix:
- Carrier-grade rubber pads (58 Shore A hardness)
- Diamond-grid texture reduces slippage by 73%
Impact: Eliminates 92% of polishing costs2.2 Dynamic Load Redistribution
The Problem: Traditional a frame glass trolley designs buckle under stress.
Military Fix:
- Triangular force dispersion (carrier deck-inspired)
- Laser-calibrated load paths
Data: Weld failures plummeted from 1:200 to 1:10,000 shipments2.3 Salt Spray Armor
The Problem: Coastal racks rust within 1.5 years.
Military Fix:
- 3-stage coating (primer + epoxy + polyurethane)
- 2,000-hour salt fog certification (beyond ISO 9227)
Savings: $1,200/rack/year in maintenance
3. Case Study: Arizona Solar Plant Cuts Losses by 94%
Before Mgrack’s A Frame Glass Steel Rack:
- 9% breakage rate ($387K/year loss)
- 14% rejection from micro-scratches
After Implementation:
- 6% breakage ($82K/year loss)
- 3% first-pass tempering yield
- ROI: 5-month payback
Operational Wins:
- 15-minute modular assembly (40% faster)
- Dual-mode a frame trolley (storage + transport)
- IoT load sensors (optional)
4. Cost Analysis: Why Smarter Engineering Pays
| Component | Traditional A-Frame | Mgrack Design | 5-Year Savings |
| Initial Cost | $2,800 | $3,150 | — |
| Annual Maintenance | $320 | $95 | $1,125 |
| Breakage Losses | $1,850 | $400 | $7,250 |
| Total | $17,750 | $9,625 | $8,125 |
Based on 150 racks, 300 shipping days
5. Industry Voices: From Auto Glass to Skyscraper Panels
“We’ve moved 18,000 panels using Mgrack’s A-frame glass trolleys. Only 3 had edge damage—from forklifts, not the racks.”
—Logistics Head, Southwest Solar Co.“Switching between 3mm and 10mm glass takes minutes now. Our old racks wasted half a day on adjustments.”
—Warehouse Lead, Detroit Auto Glass Inc.
Conclusion: Engineering Margin Protection
In an industry where 6-8% profits hinge on perfection, Mgrack’s A Frame Glass steel rack systems prove military-grade innovation drives survival. For every 1invested,manufacturersgain2.60 annually—a ROI that would make naval engineers proud.
Next frontier: Submarine pressure hull tech for jumbo glass sheets. Stay tuned.
