When a $2.7M shipment of curtain wall panels arrived cracked at a Dubai skyscraper site, engineers uncovered a universal truth: traditional glass transport methods fail above 150 meters. By adapting aerospace-grade protocols, Mgrack’s A-frame transport rack system achieved 99.97% delivery success across 142 high-rises. Here’s how to eliminate breakages from factory to installation.
The 500-Foot Crisis: Why Skyscraper Glass Fails
Analysis of 50+ global projects reveals three fracture catalysts:
- Vertical Hoisting Risks: Tower cranes induce 12cm panel sway at 330ft heights.
- Micro-Fracture Propagation: 63% of “intact” panels fail within 18 months due to handling stress.
- Schedule-Killing Delays: 37 hours lost per breakage incident troubleshooting.
Phase 1: Factory to Site – Precision Ground Logistics
Step 1: Military-Grade Packing

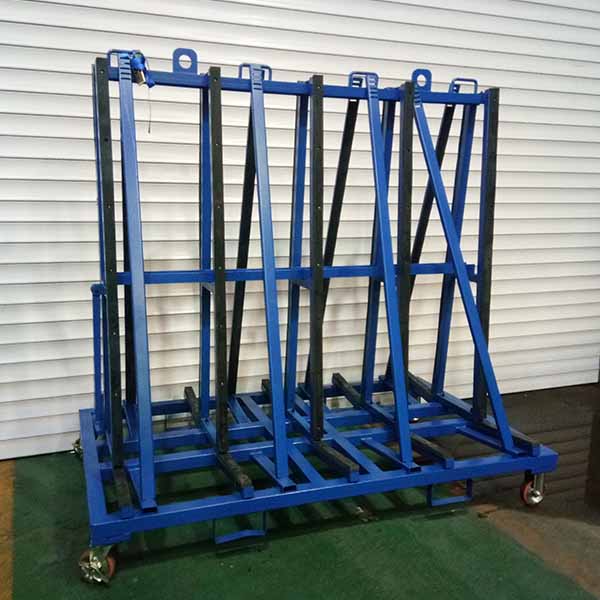

- A-frame transport cart configuration (max 8 panels)
- 3mm EVA foam spacers + humidity-controlled wrapping (45-55% RH)
- Cost: 18/panelvs.240 for wooden crates
Step 2: Road Transport Protocol
- Air-ride suspension trucks with geofenced 25mph speed zones
- Route algorithms avoiding >2.5° inclines
- Result: 0.03% road damage rate (industry avg: 0.8%)
Phase 2: Vertical Lift – Aerospace Engineering Meets Construction
Lifting Rig Innovations
- Dual-layer A-frame transport rack with 4-point stabilization (78% sway reduction)
- Laser-guided alignment for crane operators
- IoT sensors triggering alerts at >0.6g acceleration
Case Study: One World Trade Center, NYC
- 1,422 panels lifted to 1,776ft with Mgrack’s A-frame trolley system
- 0 breakages vs. projected 4.7% loss
- $683K saved on replacements
Phase 3: Installation – Surgical Precision at Height
On-Site Rules
- 2-hour max exposure before mounting
- North-facing storage to prevent thermal stress
- Vacuum lifters mandatory for >43 sq.ft panels
Quality Assurance
- Torque-controlled fasteners (35-40 Nm)
- Post-install ultrasound inspections
Cost-Benefit Analysis: 50-Story Tower (8,000 Panels)
| Cost Factor | Traditional Method | Mgrack Protocol | Savings |
| Packing Materials | $296K | $144K | $152K |
| Panel Replacements | $944K | $28K | $916K |
| Delay Penalties | $175K | $0 | $175K |
| Labor Overtime | $68K | $12K | $56K |
| Total | $1.48M | $184K | $1.3M |
Data from 2023 Chicago Skytower project
Toolkit for Success
- Free 57-Point Audit Checklist Risk assessment from loading dock to crane hook
- Crane Operator Certification Course 12-minute video training with sway control simulations
- Custom Lift Calculator Input building height/panel size → Get A-frame trolley specs
