CFS Hybrid Sheet Metal Storage Racks: Dual-Access Industrial Solution

Client Requirements & CFS Engineering Approach

A Texas-based aerospace parts manufacturer sought CFS sheet metal storage solutions to manage 2440×1220mm steel plates with critical requirements:
● Dual-Access Technology: Combine manual drawers and forklift-accessible layers
● Precision Handling: 50mm interlayer clearance for crane-compatible workflows
● Heavy-Duty Performance: 1,000kg/drawer capacity (1.5x safety factor)
● Space Constraints: 1,250mm frame height for low-clearance facilities3

CFS Sheet Metal Storage Systems Innovation

1. Dual-Mode Configuration

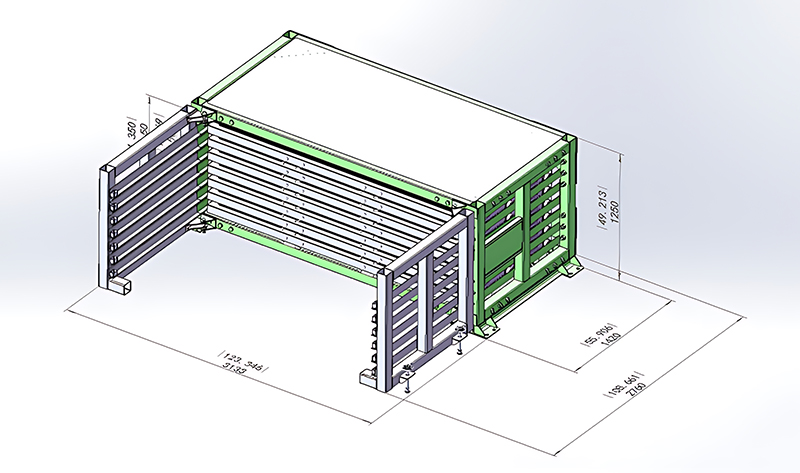

Figure 1: Hybrid system (3,100kg) with 7 manual + 4 forklift drawers
● Flexible Workflows:Manual section: 50mm precision spacing for quality control
○ Forklift zone: T-track anti-derailment guides for 2.5-ton forklifts
● Structural Integrity:Triangular gusset reinforcement at stress points
○ Dual back bracing for seismic stability

2. Crane-Compatible Design

Figure 2: 1,200-1,560mm operating range for overhead lifting
● Ergonomic Optimization:1,126mm top plate height aligns with ASME B30 crane standards
○ Chamfered edges prevent cable/chain damage
● Safety Features:Visual load capacity indicators
○ Automatic drawer locks at 85% extension

3. Modular Sheet Metal Storage Racks

Figure 3: Bolt-together components with pre-drilled alignment
● Field Assembly:40% faster installation vs welded systems
○ Standard tool compatibility (no specialty equipment)
● Material Specifications:5mm powder-coated steel drawers
○ 120×120×6mm vertical supports

Technical Comparison: CFS Storage Solutions

Operational Advantages of CFS Systems

1.  Space Optimization:Stores 40% more plates vs cantilever racks in 1,250mm height
a.  Fits 5m ceiling facilities (common in retrofitted warehouses)
2.  Cost Efficiency:$12/sqm premium crating option (climate-controlled)
a.  30% faster material turnover reduces WIP inventory
3.  Cross-Industry Adaptability:Aerospace: Raw material staging for wing spar production
a.  Automotive: Body panel storage for stamping lines
b.  Construction: Steel beam organization in prefab plants

Customization & Compliance

● Regional Adaptations:Seismic zone reinforcement packages (UBC 1997 compliant)
○ Coastal corrosion-resistant coatings (ASTM B117 certified)
● Smart Logistics:RFID-enabled drawer tracking (optional upgrade)
○ 3D facility modeling for layout optimization
