A Texas-based steel distributor required CFS sheet metal warehouse rack systems to manage mixed inventory (palletized/loose plates) with critical specifications:
● Dual-Mode Design: Simultaneous support for 2500×1300mm pallets and 2440×1220mm loose plates4
● Space Optimization: 2m vertical storage with 90-160mm layer spacing
● Heavy-Duty Performance: 1,500kg/drawer capacity (1.5x safety factor)8
● Ergonomic Handling: Vacuum lifter compatibility and crane integration
CFS Sheet Metal Storage Table Innovations
1. Adaptive Configuration Technology

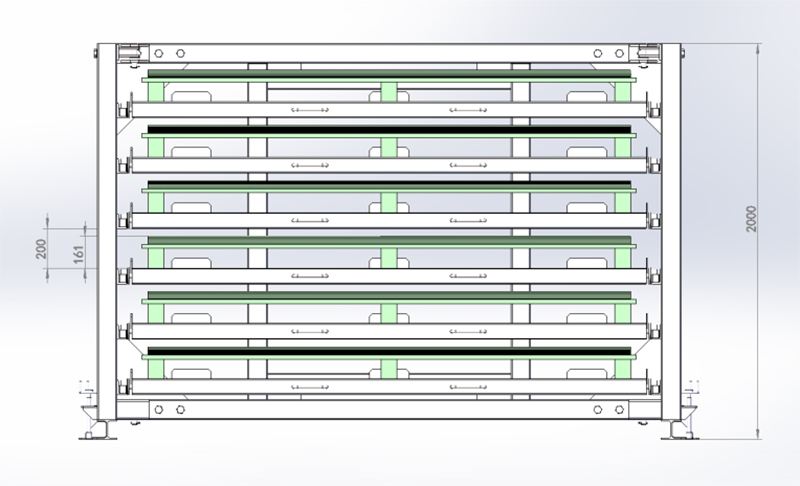

Figure 1: Palletized mode (1,830kg) with 160mm clearance
● Mode Switching:6-Drawer Pallet System: 200mm layer height for 160mm pallet+plate stacks
○ 10-Drawer High-Density: 90mm spacing for 41mm loose plates4
● Structural Engineering:Triangular gusset reinforcement at stress points
○ Dual back bracing system with seismic stability
2. Industrial-Grade Sheet Rack Storage System
Figure 2: T-track anti-derailment guides with screw-assisted braking
● Operational Safety:Automatic drawer locks at 85% extension (OSHA-compliant)
○ Visual load capacity indicators with color-coded thresholds
● Material Handling:40° drawer opening angle for vacuum lifter access
○ Chamfered edges prevent plate edge damage
Technical Comparison: CFS Storage Solutions
| Parameter | Palletized Mode | High-Density Mode |
| Configuration | 6 drawers | 10 drawers |
| Total Capacity | 9 tons | 15 tons |
| Top Handle Height | 1,673mm (5'6") | 1,803mm (5'11") |
| Shipping Efficiency | 2 units/20'GP | 2 units/20'GP |
Operational Advantages of CFS Systems
1. Space Optimization:Stores 35% more plates vs cantilever racks in 2m vertical space4
a. Compatible with 5m ceiling facilities (common in retrofitted warehouses)
2. Cost Efficiency:$12/sqm premium wooden crating option
a. 25% faster inventory turnover reduces WIP storage costs
3. Cross-Industry Adaptability:Automotive: Body panel staging for stamping lines
a. Construction: Steel beam organization in prefab plants
b. Aerospace: Raw material management for CNC machining
Customization & Compliance
● Material Specifications:5mm powder-coated steel drawers (RAL 9005 standard)
○ 120×120×6mm vertical supports with seismic packages
● Smart Logistics:RFID-enabled inventory tracking (optional upgrade)
○ 3D facility modeling for layout optimization
