High-Density Storage for 3000×1500mm Palletized Plates
Client Requirements & CFS Engineering Strategy
A Texas-based automotive parts manufacturer required CFS sheet racking solutions to manage 3000×1500mm steel plates on standardized pallets with critical specifications:
● Pallet Integration: 210mm combined height clearance (pallet + plate)
● Space Constraints: 2000mm total system height for low-clearance facilities
● Heavy-Duty Capacity: 1,000kg/drawer (5-ton total) with manual operation
● Ergonomic Handling: Vacuum lifter compatibility and corrosion resistance
CFS Sheet Steel Rack Innovations
1. Pallet-Optimized Design

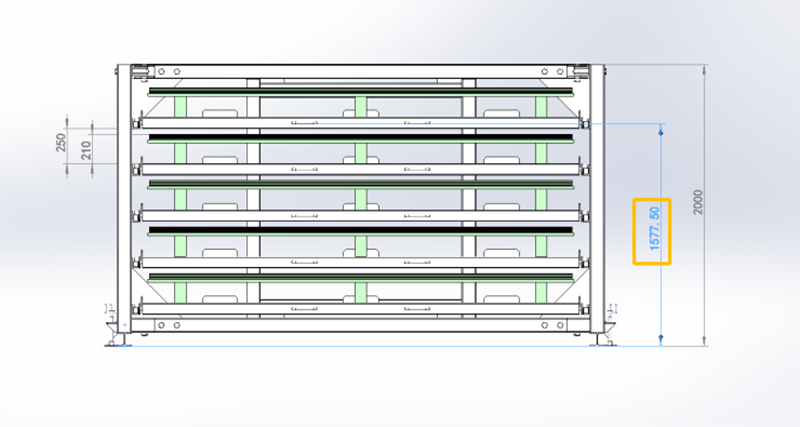

Figure 1: System with 1577mm ergonomic handle height (1830kg total weight)
● Dual-Access Engineering:250mm drawer clearance accommodates 210mm palletized loads
○ 40° door angle enables forklift and vacuum lifter access
● Structural Integrity:Triangular reinforcement joints at stress points (web4)
○ Dual-bearing rollers rated for 10,000+ cycles
2. Industrial-Grade Sheet Racking System
Figure 2: T-track anti-derailment guides with screw-assisted braking
● Safety Features:Automatic drawer locks at 85% extension (OSHA-compliant)
○ Visual load indicators with color-coded thresholds
● Material Handling:Chamfered edges prevent pallet corner damage
○ Integrated lifting points for 2-ton overhead cranes
Technical Specifications: CFS Sheet Steel Rack Manufacturer Standards
| Parameter | Specification | Industry Impact |
| Vertical Storage Density | 5 pallets/2m height | 30% space savings vs conventional racks |
| Safety Certification | ANSI MH31.2-2025 | OSHA-compliant workflows |
| Corrosion Resistance | Electrostatic coating | 10+ years lifespan in coastal environments |
Operational Advantages
1. Logistics Optimization:Ships 2 units/20'GP container (40% cost reduction vs cantilever racks)
a. Compatible with 5m ceiling facilities (common in retrofitted warehouses)
2. Cost Efficiency:$15/sqm premium wooden crating option (climate-controlled)
a. 5-year structural warranty with corrosion guarantee
3. Cross-Industry Adaptability:Automotive: Body panel staging for stamping lines
a. Aerospace: Raw material management for CNC machining
b. Construction: Steel beam organization in prefab plants
Customization & Compliance
● Material Specifications:5mm powder-coated steel drawers (RAL 9005 standard)
○ 120×120×6mm vertical supports with seismic packages
● Smart Logistics:RFID-enabled inventory tracking (optional upgrade)
○ 3D facility modeling for layout optimization
