CFS Dual-Size Sheet Metal Storage Rack System: Industrial Case Study

Client Requirements & CFS Engineering Strategy

A U.S.-based aerospace manufacturer required a CFS sheet metal storage rack system to manage dual plate sizes (1220×2440mm and 1524×3048mm) with critical specifications
● 1:Dual-Configuration Design: Simultaneous storage for mixed plate dimensions
● Forklift Integration: Full drawer access for standard 2.5-ton forklifts
● High-Density Capacity: 20 drawers per 4m unit (4000kg total per rack)
● Industrial Safety: 1.5x overload protection (1500kg tested per drawer)

CFS Sheet Metal Storage Rack Innovations

1. Dual-Size Optimization Technology

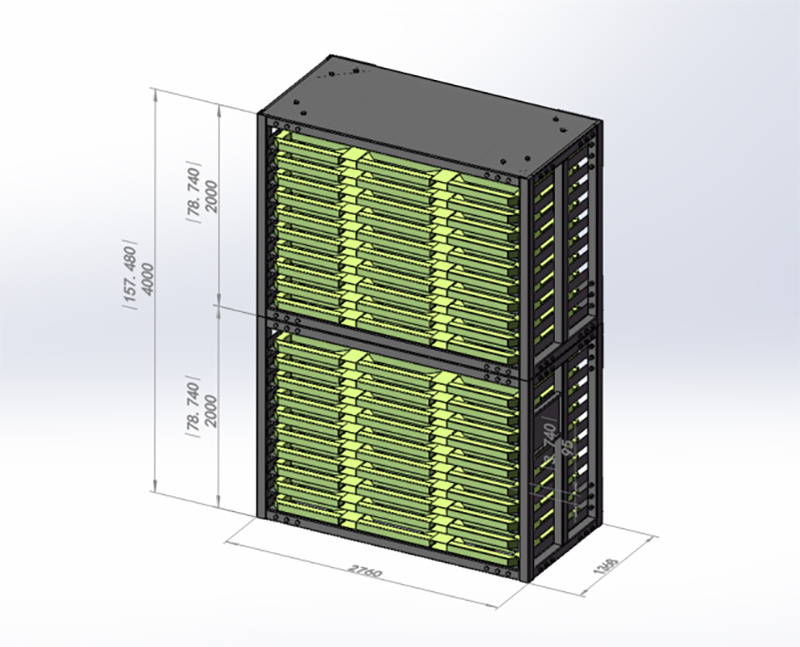

Figure 1: 2760×1368×4000mm system (2440×1220mm plates) – 4340kg
● Space Efficiency: Stores 20 plate stacks vertically with 95mm layer spacing (35% denser than pallet racks)1
● Modular Base Design: 230kg separable unit with quick-release mechanism for containerized shipping3
● Structural Reinforcements:Over-engineered drawer frames with chamfered corners
○ Uniform high-grade steel construction across both systems

2. Forklift-Accessible Sheet Metal Storage System

Figure 2: Precision-engineered forklift channels with visual alignment guides
● Operational Safety:Automatic drawer locks at 85% extension to prevent tipping2
○ Reinforced corner guards for collision protection
● Logistics Advantage:3-4 units/40'HQ container configuration3
○ Field-assembled design reduces installation time by 40%

3. Customizable Material Handling Solutions

● Surface Treatment: Electrostatic powder coating (RAL customization available)
● Packaging Options:Standard: Protective stretch film + steel strapping
○ Premium: Climate-controlled wooden crates (+$12/sqm)3

Technical Comparison: CFS Sheet Metal Storage Racks

Operational Advantages of CFS Systems

1.  Space Utilization:Stores 400+ standard plates in 4m vertical space
a.  Compatible with low-ceiling facilities (5m minimum height)
2.  Cost Efficiency:30% lower shipping costs vs traditional cantilever racks3
a.  5-year structural warranty with corrosion resistance guarantee
3.  Cross-Industry Adaptability:Aerospace: Raw material staging for wing panel production
a.  Construction: Steel beam and plate organization
b.  Heavy Equipment: Machined component inventory management

Customization & Compliance

● Regional Support: CFS engineers provide facility-specific 3D modeling for:Seismic zone reinforcement packages
○ Humidity-controlled coating variants
● Global Standards: Compliance with ISO 9001 and OSHA safety protocols5
