A Dual-Option Storage Solution for Heavy-Duty Loads

In complex warehouse environments, a single type of rack often fails to meet all operational needs. Different zones and workflows may require different forms of storage equipment, even if they handle the exact same goods. This case study demonstrates how we provided maximum operational flexibility for a client's 1.5-ton heavy-duty goods storage by offering two distinct, targeted designs: upright and inverted stacking racks.

The Challenge: Providing Two Stacking Modes for 1.5-Ton Palletized Goods

The client's storage needs were clear and demanded high load-bearing performance. Their core challenges were:

• Heavy-Duty Load: The unit dimensions of the goods were 1200x1200x1200mm, with a significant weight of 1.5 tons.
• High-Density Stacking: These heavy goods needed to be safely stacked three tiers high.
• Dual-System Requirement: The client explicitly required two types of racks—Upright Racks and Inverted Racks—to suit different operational flows and zone planning within their warehouse.

Our Two-Pronged Solution

Instead of a one-size-fits-all approach, we engineered two distinct, structurally optimized, and reliable heavy-duty rack solutions tailored to the client's needs.

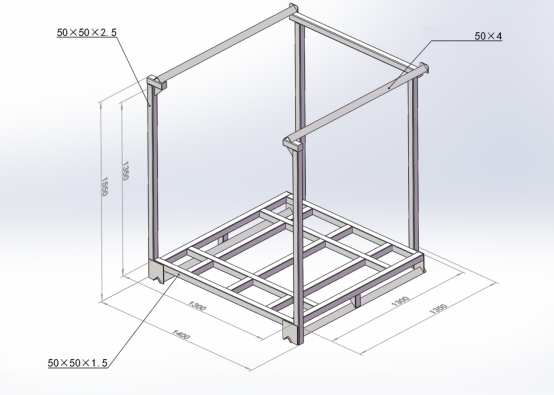

1. Solution A: The Upright Stacking Rack

This system, a classic post pallet design, consists of a pallet-style base and four demountable posts, ideal for scenarios where the rack itself needs to function as the load-bearing unit. It allows users to first place goods onto the rack base and then use a forklift to move and stack the entire unit (rack + goods). This model is perfectly suited for areas where frequent movement of the entire storage unit is required.

Robust Design: Through precise mechanical calculations, we selected materials like 50x50x2.5mm tubing for the posts to ensure they maintain excellent stability when loaded with 1.5 tons and stacked three tiers high.

2. Solution B: The Inverted Stacking Rack

This is a frame structure that is placed directly over palletized goods already on the floor (or a lower rack), providing a stable platform for the next level of goods. The advantage of this model is that achieving a three-tier stack of goods requires only two rack sets, which can offer greater cost-effectiveness in certain situations. Its nestable design for empty storage is also extremely space-efficient.

Equally Robust: Despite the different structural form, we designed it with an equally sturdy frame capable of supporting the 1.5-ton load, ensuring absolute safety during high-level stacking.

Conclusion: Expertise Comes from Providing the Best Choices

The core value of this case lies in the fact that we did not push a single product. Instead, we listened carefully to the client's need for different operational modes. By providing two equally robust and safe, yet functionally distinct, professional solutions, we gave them the freedom to choose the most suitable equipment, like a versatile post pallet system, for their specific workflows. This not only solved their heavy-goods storage problem but also enhanced the flexibility of their entire warehouse operation.

Are you unsure whether an upright or inverted rack system is right for you? Contact our experts for a comprehensive analysis and recommendation tailored to your needs.
