Engineered Pallet Protection: The Key to Durable Post Pallet Stacking Racks

A common yet critical issue when utilizing post pallet stacking racks for high-level storage is the potential for damage to the upper pallets. If the top bearing surface of the rack does not align precisely with the pallet's support feet, the pallet—especially wooden or plastic ones—can easily bend, crack, or even break under a heavy load, posing a serious safety hazard. This case study details how we provided a client in the United States with a solution that enables high-density storage while effectively protecting their pallets through a targeted design detail.

The Challenge: Ensuring Pallet Integrity While Achieving Stacking Goals

The client required an efficient post pallet stacking racks system to stack their 43"x43" (1100x1100mm) palletized goods. Each pallet load weighed up to 2,200 lbs (1000kg), and a three-tier stack was required. Based on experience and awareness of potential risks, the client's core concern was twofold:

• Pallet Safety: How to ensure that the pallet placed on top of the rack would not have its structural integrity compromised due to improper support while bearing its own weight plus the weight of the goods?
• Precise Match: The client provided a product catalog as a reference, indicating they needed a proven solution that would work reliably.

Our Engineered Solution: A Pallet-Centric Design

We understand deeply that a system of post pallet stacking racks supports not just the goods, but also the pallet that serves as their foundation. Therefore, our design went beyond the rack itself to incorporate the safety of the pallet as a core consideration.

1. A Frame to Meet Storage Needs

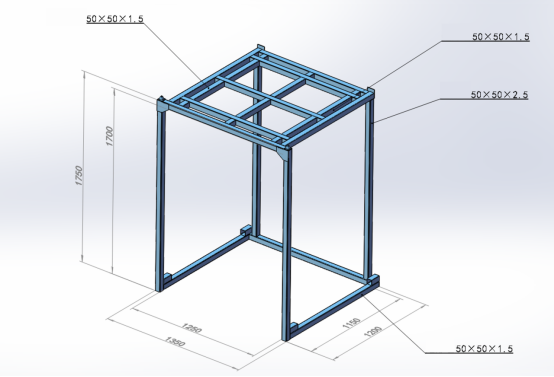

We first designed a rack frame with internal dimensions of 49" x 45" x 67" (1250x1150x1700mm), providing ample operational space for the client's 43" x 43" x 63" unit loads.

2. The Precisely Positioned Pallet Support Grid

This is the essence of the entire solution's design. Instead of using a standard, equally spaced top grid, we took a more detailed approach:

• Analyzed the Pallet Structure: We examined the precise positioning of the support feet (or blocks) on the bottom of a standard 43"x43" pallet.
• Customized the Support Cross-Members: Based on this analysis, we designed the top cross-member grid of the rack so that its support beams align perfectly with the pallet's feet.

The Value Delivered

• Precise Support: When the upper pallet is placed on the rack, its main load-bearing points are "caught" precisely by the rack's beams, transferring the weight evenly and effectively down to the rack posts.
• Prevention of Damage: This design fundamentally prevents the unsupported sections of the pallet from bending or breaking due to excessive force, significantly extending the service life of the pallets.
• Enhanced Overall Safety: A stable pallet is the foundation of a safe stacking system. By protecting the pallet, we enhance the reliability of the entire storage unit.

Conclusion: Professionalism in the Details, Value in the Design

A seemingly minor design adjustment—aligning the top cross-members with the pallet's support feet—has a huge impact on the long-term safety, reliability, and Total Cost of Ownership (TCO) of the entire storage system. It prevents additional replacement costs and potential safety risks arising from pallet damage. This case proves that our focus is not just on the rack itself, but on the health and efficiency of your entire logistics unit.
