Heavy duty A-frame rack for HVAC sheet metal skins

In HVAC manufacturing, protecting Class-A surfaces on pre-painted sheet metal skins is a daily battle. Scratched panels mean rework, delayed assembly lines, and wasted scrap. Stop stacking your finished enclosures flat on wooden pallets. Switch to a vertical, rubber-lined storage solution designed to protect your fabrication quality and optimize your MRO floor space.

Talk With An Expert

The Hidden Cost of Flat Stacking in HVAC Fabrication

For facility managers at major HVAC plants—whether you are producing commercial rooftop units or residential furnaces—handling the outer sheet metal skins is a logistical headache. These panels are often large, powder-coated, and prone to warping or scratching if mishandled.

The traditional method of laying these skins flat on wooden pallets is the enemy of efficiency. It consumes massive amounts of square footage in the fabrication shop and increases the risk of “rub marks” on the finish during transport to the assembly line. To solve this, industry leaders are adopting the Collapsible Glass Transport Pallet architecture—repurposed as a heavy-duty A-frame for metal panels.

Structure Meets Protection: Why A-Frames Work for Metal Skins

The Agrack system is engineered with a “Structure → Function → Value” logic that directly addresses the pain points of storing finished metal components.

1. Absolute Surface Protection

Unlike standard warehouse racking or makeshift wooden bucks, our racks feature 10mm thick rubber strips reinforced with internal steel plates. This is critical for HVAC manufacturers. When you place a freshly coated furnace panel onto the rack, it rests against a non-abrasive surface. The vertical orientation eliminates the pressure marks that occur at the bottom of a flat stack.

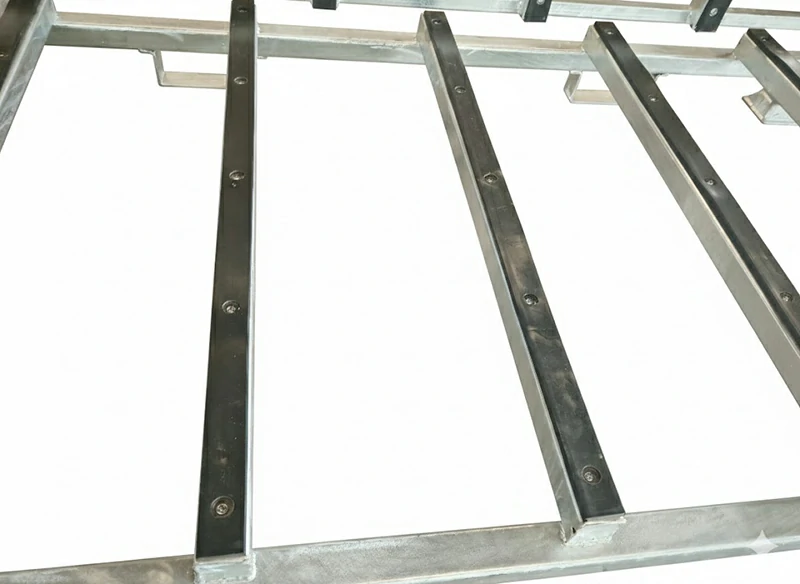

Reinforced rubber base prevents metal-on-metal contact, ensuring zero scratches on painted skins.

2. High-Density Vertical Stacking

Space is a premium in any manufacturing plant. This rack allows for stacking up to 3 units high when fully loaded. By moving your inventory upward, you can store three times the volume of sheet metal skins in the same footprint. This allows for better organization of MRO supplies and keeps the assembly line fed without cluttering the aisles.

Tripling storage density: Safe vertical stacking frees up valuable fabrication shop floor space.

Logistics Optimization: The Closed-Loop Advantage

Many HVAC manufacturers operate multiple facilities—stamping and coating might happen in Building A, while final assembly happens in Building B (or a different city entirely). The Agrack shines in these closed-loop logistics scenarios.

Once the sheet metal skins are offloaded at the assembly line, the empty racks often become a burden. Shipping empty, bulky racks back to the fabrication source is paying to “ship air.”

The Foldable Solution

Our heavy-duty A-frame racks feature a unique collapsible design. By removing the safety pins and lowering the backstop, the side columns fold down flat. In this state, you can stack empty racks up to 7 or 11 units high for return transport. This reduces return freight costs by over 80%, making the logistics of moving metal skins between plants economically viable.

Collapsed racks ready for return shipment, maximizing truckload efficiency.

Seamless Integration with Material Handling Equipment

Whether your facility relies on forklifts or overhead cranes, this rack is compatible. The base features integrated, reinforced forklift channels (available in 2-way or 4-way entry) for safe lifting. For bays serviced by overhead cranes, the heavy-duty lifting eyes (hooks) allow for stable hoisting of fully loaded racks.

Standard forklift compatibility ensures seamless integration into your existing MRO workflow.

Technical Specifications for HVAC Applications

FAQ: Storage Solutions for HVAC Manufacturing

1. Can this rack prevent scratches on pre-painted HVAC skins?

Yes. This is the primary advantage over standard pallets. The rack uses 10mm thick rubber strips reinforced with steel plates. Your powder-coated skins rest against the rubber, not steel, effectively eliminating contact scratches and abrasion during transport.

2. We store solar collector glass and metal skins. Can we use the same rack?

Absolutely. The Agrack was originally designed as a Collapsible Glass Transport Pallet. Its structural integrity and protective rubber lining make it the perfect dual-use asset for manufacturers like Rheem who handle both solar glass and heavy gauge sheet metal.

3. How much floor space can we save in the MRO warehouse?

By utilizing the vertical stacking capability (3 high when loaded), you can reduce your floor space usage by up to 66% compared to single-level storage. When empty, the collapsible design frees up even more space.

4. Is the rack compatible with standard warehouse forklifts?

Yes. The base includes standard forklift pockets designed for stability. We also offer 4-way entry options if your facility has narrow aisles or requires side-loading onto trucks.

5. Can these racks withstand the weight of heavy gauge steel panels?

Yes. Built from Q235 industrial steel, standard models handle loads between 2,200 lbs and 4,400 lbs (1000kg – 2000kg). They are engineered specifically for heavy industrial applications, unlike lightweight wire shelving.
