In the solar thermal manufacturing industry, the integrity of your tempered glass covers and absorber plates is non-negotiable. Scratched low-iron glass means reduced light transmission and efficiency drops. Yet, moving these heavy, oversized components from the tempering furnace to the assembly line—or shipping finished flat plate collectors to distributors—often results in costly breakage and “shipping air” on return trips. The AGrack system is engineered to solve the specific logistics loop of solar component manufacturing: heavy-duty protection for the glass, vertical density for the warehouse, and extreme collapsibility for the return truck.
The Logistics Challenge in Solar Thermal Manufacturing
Producing flat plate collectors involves handling large sheets of tempered glass and delicate absorber assemblies. Unlike standard architectural glass, these components are part of a strict assembly line cadence. You cannot afford to have a pallet of glass covers arrive with edge chips or surface scratches caused by vibration during transit. Furthermore, as production ramps up for the season, floor space becomes a premium asset. Traditional wooden A-frames or static L-bucks consume massive amounts of square footage even when empty, cluttering your facility and complicating factory MRO storage.
The Collapsible Glass Transport Pallet addresses these specific industrial pain points by converting static floor storage into dynamic, vertical, and compressible logistics assets.
High-density vertical storage: Stack 3 levels high (up to 2000kg/4400lbs per rack) to triple your warehouse capacity.
Structural Integrity: Protecting the Solar Glass Asset

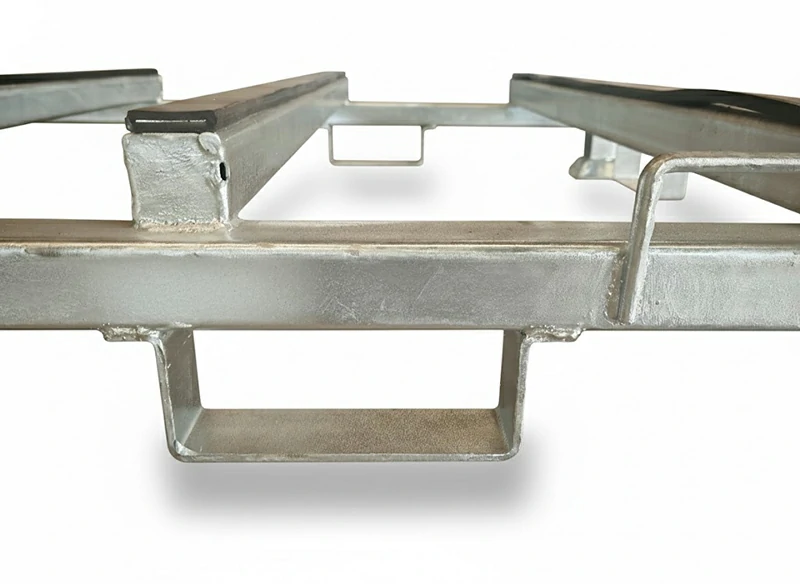

Standard steel racks can be brutal on glass. The AGrack distinguishes itself with a protection system designed for high-value manufacturing inputs. The base and backstops are lined with **10mm thick rubber strips containing internal steel plates**.
Why does this matter for solar collectors?
* **No Compression Damage:** The internal steel plate prevents the heavy weight of stacked solar glass (often 50-100 sheets per rack) from cutting through the rubber and contacting the steel frame.
* **Vibration Dampening:** The rubber composition absorbs the shock from forklift handling and truck transport, preventing the micro-fractures that lead to tempered glass shattering.
* **Secure Fixing:** Unlike glued pads that peel off in hot warehouses, our rubber is bolted with self-threading pins, ensuring your **solar collector glass handling** equipment remains MRO-compliant for years.
The “Return Logic”: Eliminating Freight Waste
For manufacturers like Rheem or other HVAC giants, the supply chain involves moving components between glass fabrication plants and assembly facilities. Using static racks means paying for a full truck to return empty metal air.
The **Collapsible Glass Storage Transport Rack** changes the math.
1. **Deployment:** You ship the rack full of glass to the assembly plant.
2. **Usage:** The rack serves as a feeder for the production line.
3. **Return:** Once empty, the sides fold down in seconds.
4. **Density:** You can stack up to **11 empty racks** into the same space as one full rack.
This capability transforms your logistics from a cost center into a streamlined operation, allowing a single 40HC container to return **112 folded racks**.
Operational Specifications for Heavy Industry
This is not a light-duty window cart; it is industrial equipment built for **solar panel manufacturing logistics**.
* **Load Capacity:** Up to 2000kg (4409 lbs). This handles the density of thick solar glass or stacked finished collectors.
* **Stacking:**
* **Open (Loaded):** Stack 3 high safely using the integrated stacking feet.
* **Closed (Empty):** Stack 7 to 11 high for storage or transport.
* **Material:** Q235 Carbon Steel with options for Powder Coating or Hot-dip Galvanizing (recommended for outdoor storage yards).
* **Handling:** Equipped with **forklift channels** for standard warehouse movement and optional crane lifting hooks (lifting eyes) for overhead gantry systems common in heavy manufacturing.
Streamlining the Assembly Line Feed
In a high-volume solar factory, efficiency is measured in seconds. The Window and Door Transport Stacking design allows forklifts to place materials directly at the start of the framing or glazing station. The open-front design allows operators or vacuum lifters to pick glass sheets one by one without obstruction.
Once the rack is empty, the operator simply pulls the safety pin, folds the sides, and stacks it aside. This clears the valuable floor space immediately, maintaining a Lean Manufacturing environment.
FAQ: Logistics & Storage for Solar Manufacturers
1. Can these racks handle the specific dimensions of standard flat plate solar collectors?
Yes. While we have standard sizes, the AGrack is a modular platform. We frequently customize the base width and post height to match the specific dimensions of solar absorber plates (e.g., 4×8 ft or 4×10 ft) to ensure a snug fit and prevent shifting during transport.
2. How does the rubber padding compare to wood blocks for protecting tempered glass?
Wood eventually splinters, rots, or compresses, leading to debris on the glass and reduced protection. Our rubber padding for racks is industrial-grade with a steel core, designed to last the lifetime of the rack without degrading, ensuring zero contamination of the solar glass surface.
3. Are these racks suitable for automated warehouse systems (AS/RS)?
We can engineer the base of the rack to be compatible with specific conveyor or AS/RS requirements. The rigid steel construction (Q235) provides the dimensional stability required for automated handling, unlike flexible wooden pallets.
4. We store raw glass outdoors before processing. Will these racks rust?
For outdoor storage, we recommend our Hot-Dip Galvanized finish option. This provides superior corrosion resistance compared to standard powder coating, protecting your investment against rain and humidity in the storage yard.
5. What is the return on investment (ROI) regarding shipping costs?
The ROI is typically realized within the first few logistic loops. By collapsing the racks, you reduce the required return truck space by approximately 80%. If you are currently shipping empty fixed A-frames back to your glass supplier, the savings on freight will pay for the AGrack fleet rapidly.
