Why ＂Invisible＂ Engineering Defines an Industrial Workshop Cart

Any industrial workshop cart can look strong. It has a steel frame and four wheels. But the difference between a cart that works and one that frustrates is in the "invisible" components. The daily usability of a pull-out cart is defined entirely by the small engineering details that you don't see—until they fail. Talk With An Expert

The Components That Separate "Industrial" from "Standard"

There's a reason your office file cabinet uses tiny ball-bearing slides and an industrial cart doesn't. Standard slides would bind, warp, and fail under a 300kg dynamic load. The usability of an industrial pull-out cart depends on two details that are built for force, not convenience.

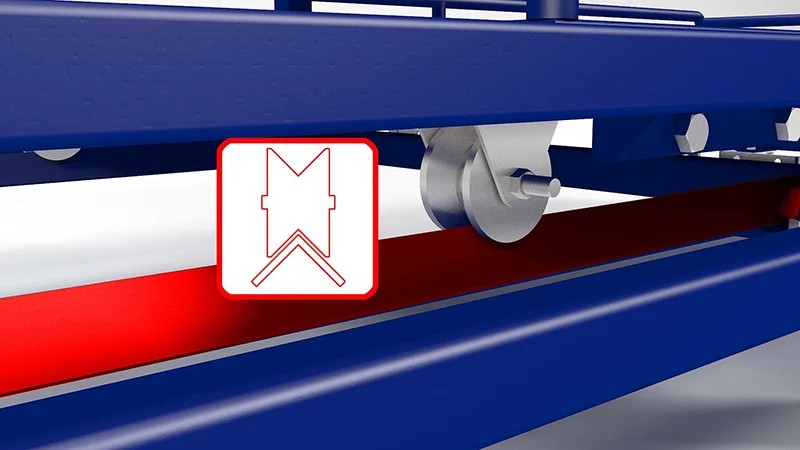

Detail 1: The Guide System (V-Wheel on Rail)

A 300kg shelf cannot just slide out on a flat piece of metal; it will wobble, bind, and jam. The solution is an industrial-grade guide system. By mounting a steel V-groove wheel (V-wheel) onto the shelf and running it along a dedicated, fixed angle steel rail, you create a system that is locked in place. This V-wheel engagement prevents all lateral "slop" or wobble. It's the invisible detail that ensures the 300kg shelf pulls out smoothly and evenly, every single time, without jamming.

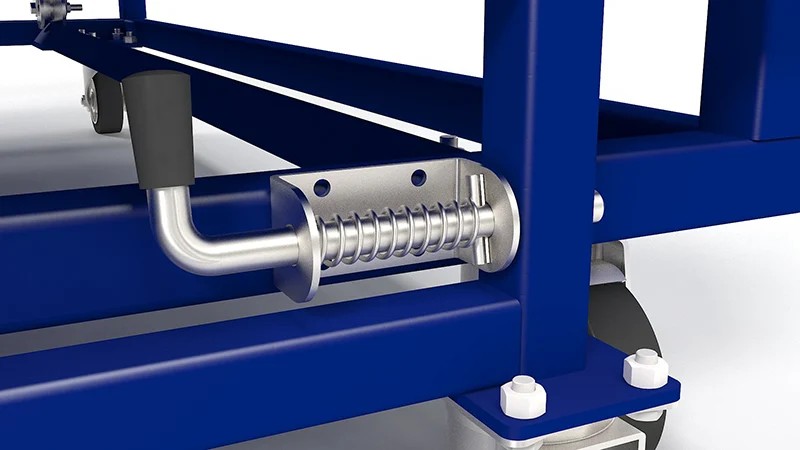

Detail 2: The Security System (Lining Latch Pin)

A pull-out shelf that is *smooth* creates a new problem: it can slide open during transport. A 300kg drawer accelerating on its own is a massive safety hazard. The solution is a dedicated security system. A heavy-duty, internal lining pin (latch) is a non-negotiable component. This pin physically locks the pull-out layer to the main cart frame, ensuring the 2 tier cart on wheels becomes one solid unit before it moves. This "invisible" detail is what makes the cart safe to operate.

Why These Details Determine Your Workflow

Without the V-wheel rail, the pull-out shelf would be unreliable. Without the latch pin, the cart would be unsafe. These small, robust components are the hidden engineering that makes the entire workflow possible. They provide the smooth, reliable extension for ergonomic loading and the secure, locked-in stability for safe transport. When evaluating equipment, look past the main frame and focus on these critical details—they are the true measure of industrial quality.

Frequently Asked Questions

Q: What is a "V-wheel on rail" system?

A: It's an industrial guide system where a V-grooved wheel is fitted to run along a matching angle steel track. This prevents the pull-out shelf from moving side-to-side (wobbling) and ensures a smooth, non-binding motion.

Q: Why not just use standard drawer slides?

A: Standard ball-bearing slides are designed for light loads (like a desk drawer). They cannot handle the dynamic stress of a 300kg industrial load and would quickly warp, jam, or fail.

Q: What is a "lining pin" or "latch"?

A: It's a heavy-duty, often spring-loaded pin that secures the pull-out shelf to the main frame. This is a critical safety feature that prevents the 300kg shelf from sliding open when the cart is moving.

Q: Are these components replaceable?

A: Yes, a well-designed industrial workshop cart is built for a long service life. Components like V-wheels, casters, and pins are designed to be replaceable for maintenance, extending the cart's total lifespan.

Q: Do these details really affect the 600kg load capacity?

A: Yes. The 600kg capacity (300kg per shelf) is only achievable because these components are designed to handle the forces. The V-wheel guides the load smoothly, and the latch secures it safely for transport.
