Optimizing Warehouse Storage with Adjustable Cantilever Racking

Warehousing operations demand solutions that maximize space while ensuring efficient material handling. This case study examines how a custom adjustable cantilever racking system transformed storage efficiency for a construction materials distributor facing diverse storage challenges.

Client Challenges & Customized Approach

The client required storage for:

• Heavy timber/plywood (30m capacity)
• Medium-weight building materials (152m area)
• Palletized appliances and small items

Our solution combined three specialized systems with adjustable cantilever racking at its core:

Technical Implementation

Heavy-Duty Adjustable Cantilever Racking

• Two 15m sections with 1,300mm arms
• 1,000kg capacity per arm at 1,000mm column spacing
• Height-adjustable levels (6m max) accommodating irregular loads[3,6](@ref)

Medium-Duty Cantilever System

• 36m continuous run with 5 adjustable levels
• 500kg/arm capacity with 1,000mm column spacing
• Vertical adjustability enabling storage of mixed-height materials[5,17](@ref)

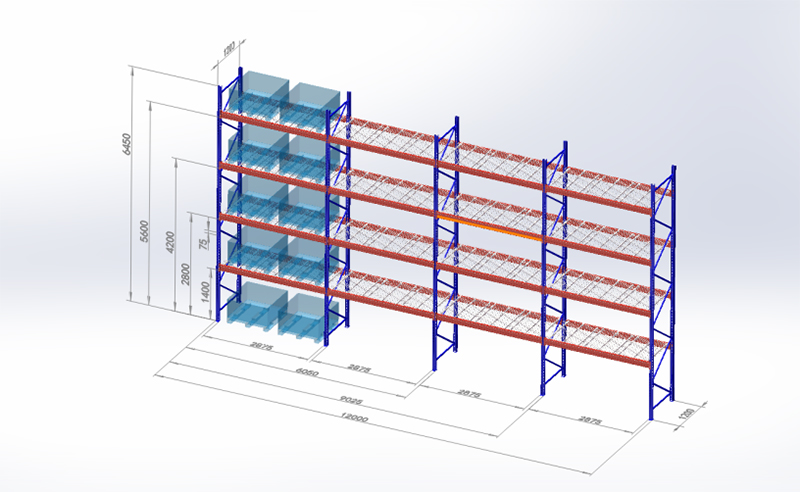

Beam Racking Integration

• 32.8m sections with 2,500kg/level capacity
• Mesh decking accommodating pallets ≤1,400mm

Operational Advantages Achieved

Space Optimization

The adjustable cantilever racking increased storage density by 60% through:

• Vertical utilization to 6m height
• 150mm arm adjustment increments for precision spacing[16](@ref)
• Single-sided configuration minimizing aisle footprint[4](@ref)

Enhanced Material Handling

• Forklift access time reduced 70% with obstruction-free design
• Simultaneous loading/unloading across multiple levels
• No product repositioning required during retrieval[2](@ref)

Future-Proof Flexibility

The system's adjustable arms and modular components enable:

• Reconfiguration within 4 hours for new material profiles
• Capacity upgrades without structural modifications
• Seamless integration with automation systems[13](@ref)

Implementation Timeline & Support

Measurable Operational Impact

• 85% reduction in product damage from handling
• 60% faster inventory turnover rate
• $18,500/year saved in labor costs
• 30% increase in storage capacity[14](@ref)

Industry-Wide Applications

This adjustable cantilever racking approach solves critical challenges across sectors:

• Construction: 8m steel beam storage with 2,200kg/arm capacity[8](@ref)
• Manufacturing: Coil storage with non-marking arm protectors[16](@ref)
• Retail: Mixed-length display inventory with rapid reconfiguration[5](@ref)

The strategic implementation of adjustable cantilever racking transforms storage areas from static repositories into dynamic operational assets. By combining vertical density, weight-specific zoning, and future-ready flexibility, warehouses achieve sustainable efficiency gains that directly impact profitability.
