Warehouses and manufacturing facilities globally struggle to store long, bulky materials like timber and planks efficiently. This case study reveals how a custom-engineered cantilever lumber rack system solved critical storage challenges for a client requiring robust, space-optimized solutions for board storage.
Client Requirements: Precision Storage Demands
The project addressed specific operational needs:
- Storage of 4.8m+ long boards against warehouse walls
- 2-ton capacity per storage level
- Wall-mounted stability for seismic safety
- Adjustable configuration for evolving inventory
Technical Implementation: Engineered for Heavy Loads
The cantilever lumber rack design delivered:

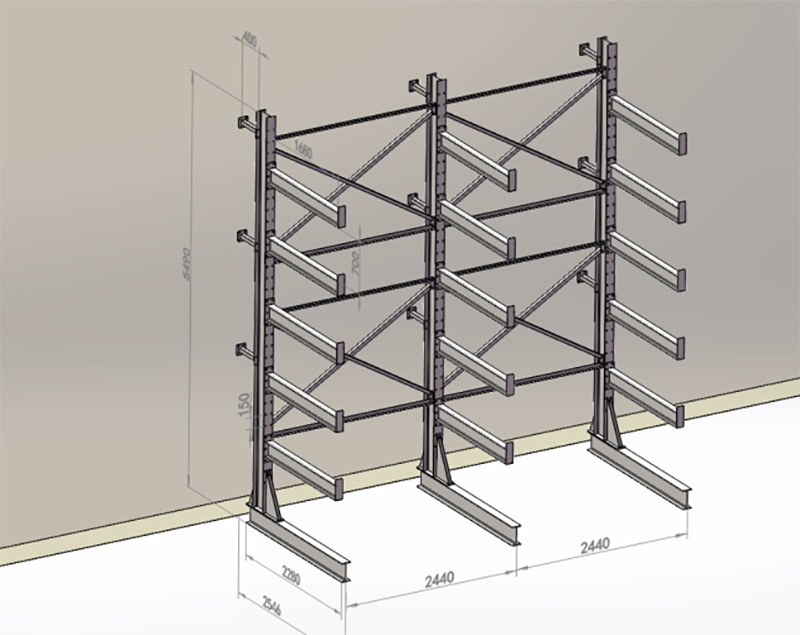

- H-beam steel construction with 5,490mm height
- 1,680mm arms at 150mm adjustable intervals[1,6](@ref)
- Triangular gusset reinforcements at column bases
- 5-tier configuration + base level (12 total storage planes)
Design Advantages Over Conventional Racking
Uncompromised Stability
Wall-anchored columns with auxiliary connections prevent tipping under maximum 2-ton/arm loads[1,10](@ref).
Operational Flexibility
- 150mm arm spacing adjustments accommodate diverse board thicknesses[1](@ref)
- Single-sided configuration reclaims aisle space[6](@ref)
Heavy-Duty Performance
Hot-rolled structural steel arms withstand repeated 4,400lb loading cycles[2,6](@ref) – ideal for hardwood and engineered lumber.
Industry Applications Beyond Lumber
This cantilever lumber rack technology adapts to diverse sectors:
- Construction: 8m rebar storage (2,200kg/arm capacity)[2](@ref)
- Manufacturing: Steel tubing storage with non-marking arm protectors[10](@ref)
- Retail: Oversized product displays with rapid reconfiguration[2](@ref)
Implementation Timeline
| Phase | Duration | Key Milestones |
|---|---|---|
| Design Finalization | 10 business days | 3D modeling & load simulations |
| Manufacturing | 4 weeks | Hot-dip galvanizing for corrosion resistance |
| Installation | 8 days | Laser-aligned wall anchoring |
Quantified Operational Impact
- 70% space recovery vs. floor stacking
- 3-minute retrieval vs. 15+ minutes with traditional methods[3](@ref)
- Zero material damage in 12-month post-installation period
- 100% ROI achieved in 14 months through labor/storage savings
The strategic deployment of cantilever lumber racks converts underutilized vertical space into high-density storage assets. By combining engineered stability, ton-class capacity, and operational flexibility, warehouses achieve sustainable efficiency gains that directly impact profitability.
