Understanding the wheel configuration of an industrial trolley is fundamental to predicting its performance in a high-paced warehouse or workshop. The choice between swivel and fixed casters dictates everything from steering precision in narrow aisles to stability under heavy loads. This decision is not arbitrary; it’s a calculated engineering choice that directly impacts operational efficiency and operator safety. For equipment designed for complex tasks like order picking, the wheel system is the foundation upon which its entire ergonomic value is built.
The Foundation of Control: A Two-Swivel, Two-Fixed Caster System
To directly answer the question: most high-performance industrial trolleys, including the Dptrolley, utilize a standard configuration of two 360-degree swivel casters and two fixed casters. This setup is the industry benchmark for a critical reason: it provides the optimal balance between maneuverability and control. The swivel casters, typically positioned at the handle end, allow the operator to pivot and steer the cart with minimal effort, making it easy to navigate tight corners and crowded spaces. The fixed casters, at the front, act as a rudder, ensuring the trolley tracks in a straight line when pushed over longer distances. A cart with four swivel casters would be extremely difficult to control, prone to “crabbing” (drifting sideways) and requiring constant correction from the operator. The 2+2 configuration is a deliberate design choice that enhances both safety and efficiency.
Beyond the Main Frame: An Integrated Six-Wheel Stability System
The defining feature of an advanced 2 Tier Order Picking Trolley is not limited to its four primary wheels. The true innovation lies in the mobility system of its pull-out lower deck, which effectively creates a stable six-wheel platform when fully extended.
The V-Wheel and Angle Rail Guide System
The pull-out layer doesn’t use conventional ball-bearing slides, which are susceptible to debris and have limited load capacity. Instead, it operates on a robust industrial track system composed of V-groove wheels (V-wheels) running on an inverted angle steel rail. This pairing offers two distinct mechanical advantages:
- Self-Centering Action: The V-shape of the wheel naturally guides it along the peak of the angle rail, preventing any side-to-side play or jamming. This ensures a consistently smooth pull and push motion, even under a heavy, unevenly distributed load.
- Debris Tolerance: Unlike enclosed slides, this open-rail design is highly resistant to dust, dirt, and workshop debris. Contaminants are simply pushed aside rather than causing the mechanism to bind, ensuring reliability in demanding industrial environments.
Frontend Auxiliary Casters: The Key to Independent Stability
The most critical component of this system is the pair of auxiliary casters located at the front of the pull-out deck. When the deck is extended, these casters make contact with the floor. This simple action has a profound mechanical consequence: it transfers the entire weight of the lower deck and its contents directly to the ground. The pull-out layer becomes an independent, load-bearing platform, completely eliminating the risk of the main trolley tipping forward from the cantilevered weight. This is what allows an operator to safely place heavy items like automotive brake discs or boxes of industrial fasteners onto the fully extended deck without compromising the stability of the entire unit.
Transforming Workflow: The Ergonomic and Operational Impact
This advanced, multi-wheel system is not just an engineering feature; it is a solution to fundamental problems in material handling and order fulfillment. By transforming the lower deck from a fixed, obstructed space into a fully accessible mobile platform, it redefines the physical actions required of an operator.
From Bending and Reaching to Vertical Placement
With a standard two-tier cart, accessing the lower level requires the operator to bend deeply at the waist and reach horizontally into a dark, confined space. This action places significant strain on the lumbar spine and increases the risk of musculoskeletal disorders. The pull-out system eliminates this hazardous motion entirely. The operator can now stand upright, pull the deck out, and place items onto it from directly above. This “top-down” or “vertical access” approach is ergonomically sound, significantly reducing physical strain and fatigue over a full shift.
Enhanced Visibility and Accuracy
The “blind spot” of a traditional trolley’s lower deck is a primary source of errors and product damage. Operators cannot clearly see where they are placing items, leading to parts being dropped, stacked improperly, or damaged by collision with the cart’s frame. When the Dptrolley’s lower deck is extended, its contents are fully illuminated by ambient light. This complete visual access allows operators to read labels clearly, place fragile components precisely, and organize orders more effectively, directly improving pick accuracy and reducing the cost of damaged goods.
Comparative Analysis of Trolley Wheel and Accessibility Systems
To fully appreciate the design’s advantages, it is useful to compare it against other common material handling equipment in terms of accessibility, ergonomics, and stability.
| Evaluation Dimension | Standard 2-Tier Trolley | Plastic Utility Cart | Roll Cage Trolley | Dptrolley (Pull-Out System) |
|---|---|---|---|---|
| Lower Level Accessibility | Poor (Blind spot, requires deep bending) | Poor (Blind spot, requires deep bending) | Moderate (Requires reaching deep inside) | Excellent (Full pull-out, vertical access) |
| Ergonomic Risk | High (Spinal compression from bending) | High (Spinal compression from bending) | Moderate (Awkward reaching and lifting) | Very Low (Promotes upright posture) |
| Stability Under Load | Good (Low center of gravity) | Fair (Prone to flexing under heavy loads) | Fair (High center of gravity) | Excellent (Six-wheel support when extended) |
| Visual Management | Poor | Poor | Poor (Obstructed by mesh) | Excellent (Full top-down visibility) |
Frequently Asked Questions
1. What is the total load capacity of the Dptrolley?
The entire trolley is rated for a safe working load of 600 kg. This capacity is validated through Finite Element Analysis (FEA) simulations, with the design tested under a distributed load of 300 kg on each of the two tiers.
2. How is the lower pull-out deck secured during movement?
The lower deck is equipped with an inner-lined latch pin. This pin securely locks the deck into the main frame, preventing it from sliding out accidentally during transit, especially when navigating ramps or making sudden stops. The “inner-lined” design ensures there are no external protrusions that could snag on personnel or inventory.
3. What are the main wheels made of?
The four primary casters are high-strength Polyurethane (PU) wheels. PU is chosen over materials like nylon or rubber for its optimal combination of durability, quiet operation, and floor protection. It absorbs minor vibrations for a smoother ride and will not mark or damage sensitive flooring like epoxy-coated concrete.

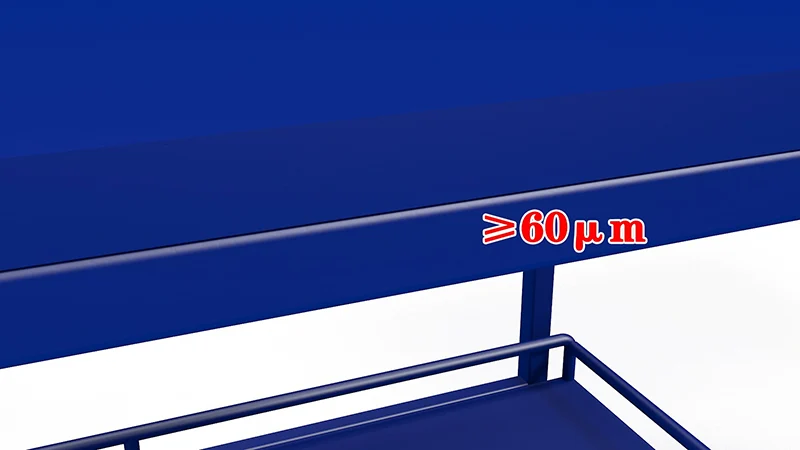

4. What is the primary material used for the trolley’s construction?
The frame and decks are constructed from Q235 carbon structural steel. The main frame uses 30x30mm rectangular tubing, and the decks use 1.2mm thick steel plate. This material provides excellent weldability and toughness, allowing it to withstand impacts in an industrial setting without brittle failure.
5. What are the external dimensions of the trolley?
The overall dimensions of the trolley are 1275 mm in length, 720 mm in width, and 1050 mm in height. This footprint is designed to be compact enough for narrow aisle navigation while providing ample surface area for carrying standard-sized totes and components.
