Beyond Standard Sizes: Custom Beam Racking Meets Unique Demands

In warehouse logistics, one size rarely fits all. That's why we at Steelpallet specialize in custom storage solutions, meticulously designed to meet the specific challenges and constraints of each client's space. A recent project perfectly illustrates our commitment to tailored design, showcasing how we deliver solutions that go beyond the ordinary.

A client needed to upgrade their facility with **heavy duty industrial pallet racks** but faced several specific limitations. They weren't looking for an off-the-shelf product; they required a system precisely engineered to their operational needs and physical environment.

Unique Requirements Met by Steelpallet

Our team worked closely with the client to create a custom solution, addressing every specific need with precision engineering:

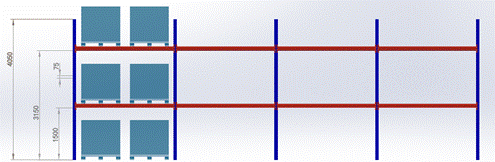

• Height Constraint: The warehouse had a main beam height of 13.78 feet (4200mm), requiring the racking to be significantly shorter. We designed the Firack system at 13.28 feet (4050mm), maximizing vertical space while ensuring safe clearance.
• Pallet Compatibility: The new system had to work with specific plastic pallets—taller than previous ones but identical in length and width. Our engineers designed a solution with a 9.19-foot (2800mm) internal length and a 3.28-foot (1000mm) width to fit these pallets precisely.
• Stacking & Load: The requirement was for 3-level stacking with two beam levels, with each pallet weighing up to 1,100 lbs (500kg). Our engineers specified robust 120x50x1.5mm box beams to guarantee a safe 2,200 lbs (1000kg) load capacity per level. This robust design exemplifies what we mean by **heavy duty industrial pallet racks**.
• Future-Proofing: Recognizing that needs can change, the design incorporated columns with 2.95-inch (75mm) adjustment increments, allowing for future beam height modifications.

The Steelpallet Advantage: Tailored Engineering

This project wasn't just about supplying racking; it was about engineering a precise warehouse storage solution. Through careful analysis and client collaboration, Steelpallet delivered a custom beam racking system that fit the space, matched the equipment, met the load requirements, and offered future flexibility. We understand that effective warehouse management relies on efficient and reliable equipment, and our **heavy duty industrial pallet racks** are designed to deliver exactly that.
