Place of Origin |
Liaoning,China |
|
Type |
Cantilevered |
|
Material |
Steel, Metal, Cold-rolled Steel,Cold-rolled Steel |
|
Feature |
Corrosion Protection, Double-sided |
|
Use |
Warehouse Rack |
|
Certification |
CE |
|
Brand Name |
heda |
|
Model Number |
CTR01 |
|
Depth |
Customized |
|
Weight Capacity |
800kg-5000kg/layer |
|
Width |
1000-4000mm |
|
Height |
1500-8000mm |
|
Brand name |
Heda |
|
Product Name |

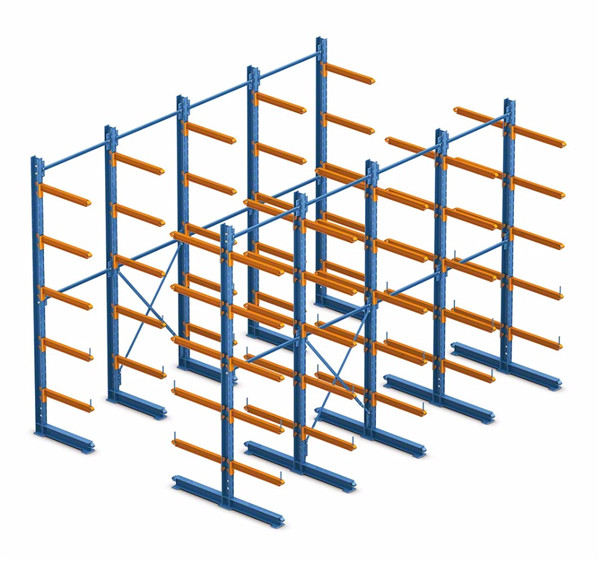

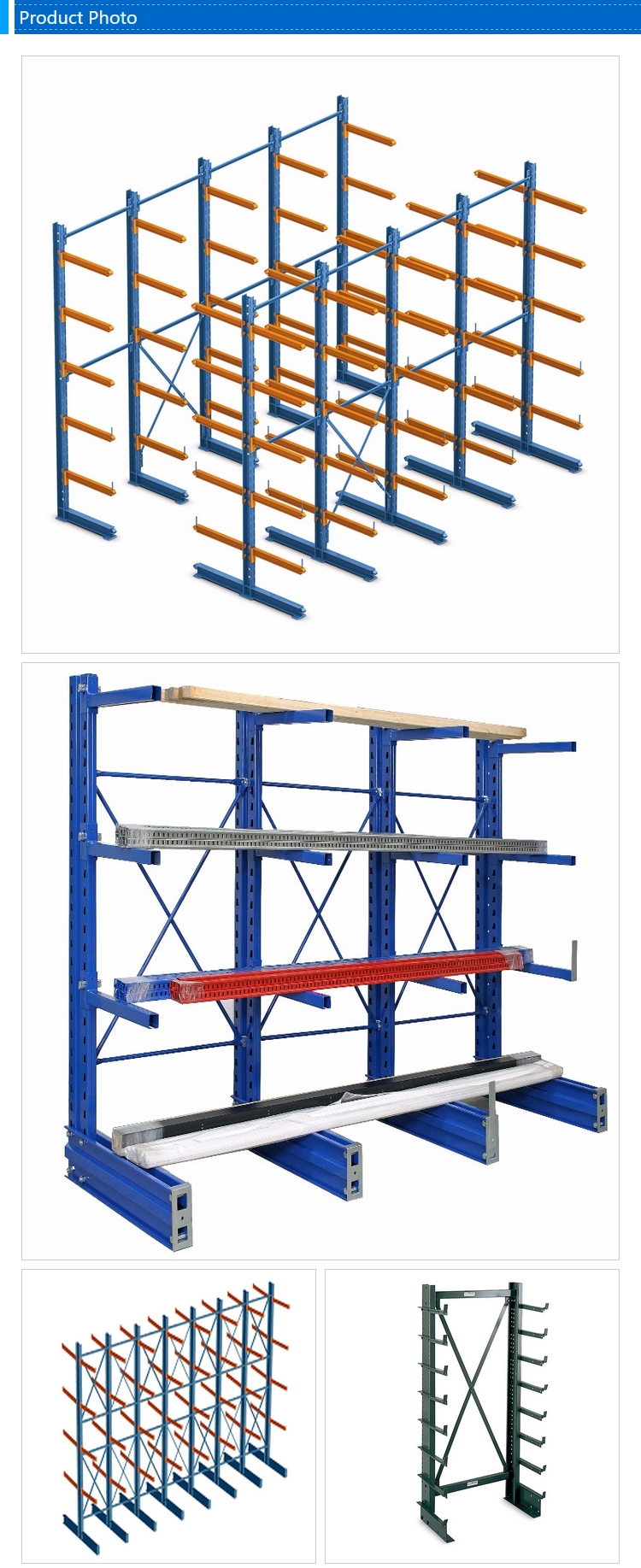

Heavy Duty Cantilever Rack |
|
Style |
Heavy Duty |
|
Packing |
Bubble Film and Carton Box |
|
Dimension |
Customized |
|
MOQ |
10pcs |
|
Loading Capacity |
800kg-5000kg/layer |
|
Company history |
Since 2001 |
|

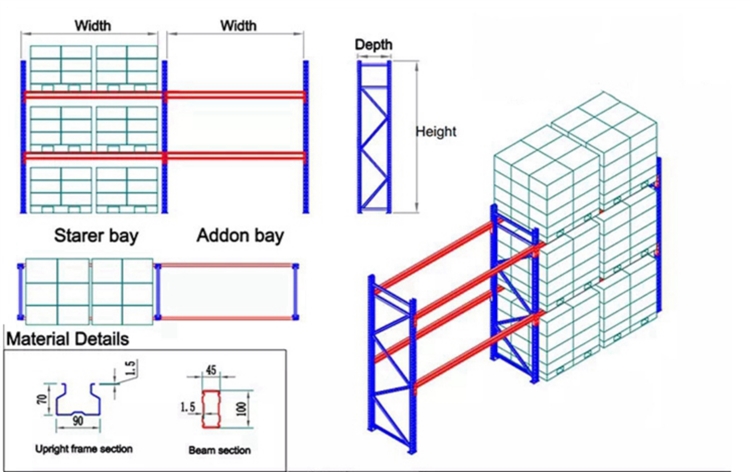

Engineering Layout & Drawing Services
Liaoning Chuande Steel Pallet Racks provides complimentary structural engineering layouts based on your warehouse payload, stacking count, and handling trucks constraints.
- Complimentary CAD 2D layouts and 3D structural model assessments.
- Rigorous loading FEA stress-strain calculations for ultimate warehouse safety.
- Custom structural options: Foldable legs, stacking cups, run gates, forklift guides.
Click Compute to calculate stress factors and display structural drawing recommendations.
Expected Deflection
4.8 mm
Allowable Limit
13.5 mm
Safety Factor
1.88
Beam Weight (Pair)
28.5 kg
CAD Structural Preview (Auto-Scaled)
Logistics Packing & Shipping Details
Our products are packaged to optimize space and minimize freight damages during international sea container transits.
|
Standard Packing |
Steel banding strapping + stretch plastic film wrapping + protector edges. |
|
Loading Quantities |
Optimized nested stacking designs to increase cargo quantities in 40ft HQ Containers. |
|
Lead Time |
15 to 25 calendar days for standard production orders (depends on volumes). |
