Warehouse Metal Material Storage Systems Cantilever Racking For Timber

Product Description Cantilever Racking Product Name Storage Racking Style Cantilever Racking Brand Chairborne Colour Blue,light gray,orange,green,etc. Material Steel Place of Product Jiangsu Province,China Feature Corrosion Protection Packing Export

Get a Free Quote

100%

Steel Quality

Heavy

Duty Rating

Custom

Sizes Built

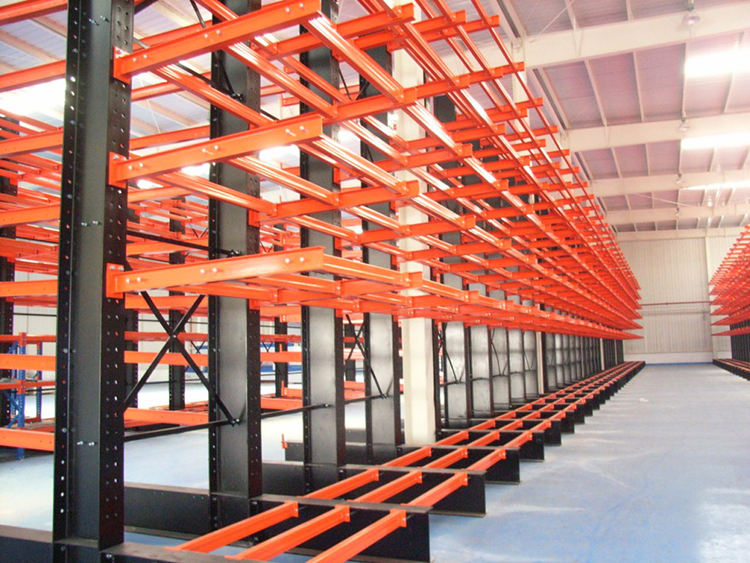

Warehouse Metal Material Storage Systems Cantilever Racking For Timber

Product Description

							Cantilever Racking



Product Name	Storage Racking	Style	Cantilever Racking
Brand	Chairborne	Colour	Blue,light gray,orange,green,etc.
Material	Steel	Place of Product	Jiangsu Province,China
Feature	Corrosion Protection	Packing	Export Package
Size	Customizable	Application	Widely used in heavy industries

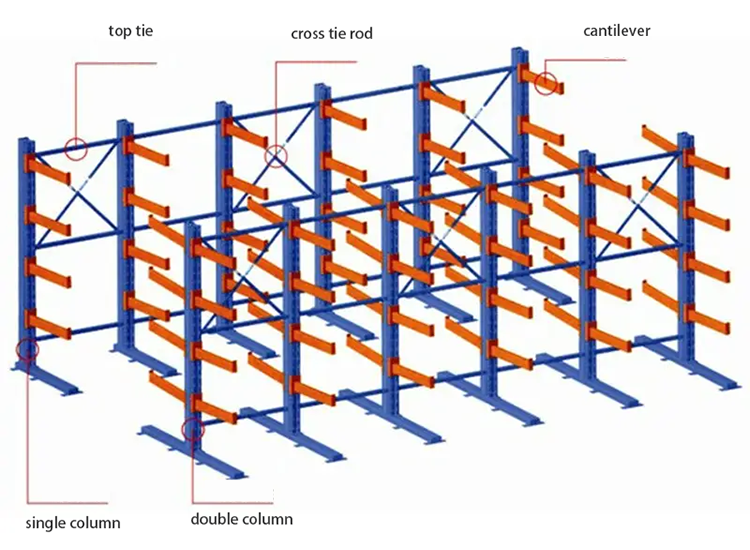

						Cantilever racks use special profile columns, including single-sided, double-sided, and high-strength cantilevers. It is the best solution for storing various long and irregular materials, such as profiles, pipes, plates, etc., to improve the warehouse utilization.

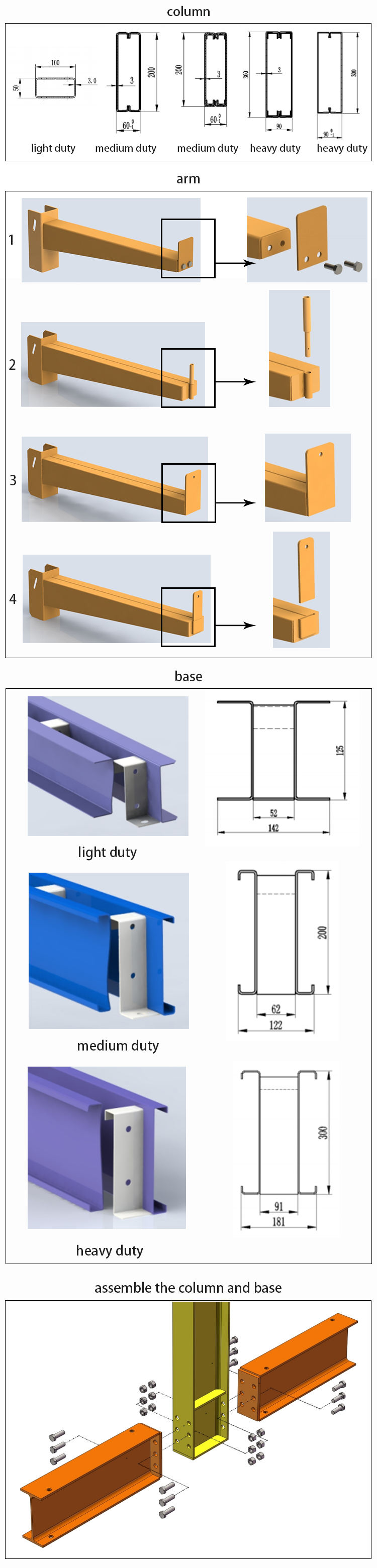

Details Images

Engineering Layout & Drawing Services

Liaoning Chuande Steel Pallet Racks provides complimentary structural engineering layouts based on your warehouse payload, stacking count, and handling trucks constraints.

Complimentary CAD 2D layouts and 3D structural model assessments.
Rigorous loading FEA stress-strain calculations for ultimate warehouse safety.
Custom structural options: Foldable legs, stacking cups, run gates, forklift guides.

B2B Racking Structural Engineering Calculator

Input your structural guidelines below. Our math system calculates material deflection, stress bounds, and recommends optimal profiles.

Beam Span / Bay Width (mm) Clear entry span between upright frames. Common: 2700mm, 3300mm.

Frame Depth (mm)

Target Loading Capacity per Level (kg) Uniformly Distributed Load (UDL) per pair of beams.

Steel Grade Conformity

Click Compute to calculate stress factors and display structural drawing recommendations.

Standard Packing	Steel banding strapping + stretch plastic film wrapping + protector edges.
Loading Quantities	Optimized nested stacking designs to increase cargo quantities in 40ft HQ Containers.
Lead Time	15 to 25 calendar days for standard production orders (depends on volumes).
