Supermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheels
Supermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheels
Supermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheels

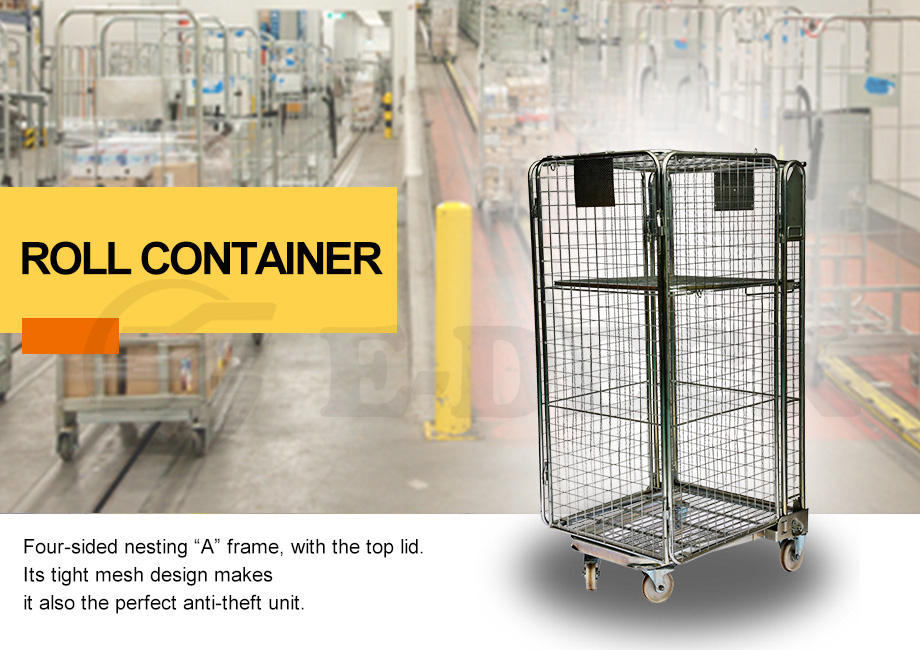

Four sided nesting “A” frame, with top lid. Its tight mesh design makes it also the perfect anti-theft unit
Specifications of supermarket cargo storage warehouse roll container
| Model No. | Exterior Dimension |
Tube Diameter |
Wire Diameter |
Loading Capacity |
Loaded in 1×40'HQ |
| LxWxH(mm) | mm | mm | kg | sets | |
| EDRC07 | 720x810x1650 | Φ20×2 | Φ8&Φ 6 | 600 | 450 |
| EDRC08 | 734x854x1680 | Φ19×2 | Φ10&Φ 6 | 600 | 320 |
| EDRC09 | 734x854x1680 | Φ19×2 | Φ10&Φ 6 | 600 | 320 |
| EDRC10 | 734x854x1680 | Φ19×2 | Φ3 | 600 | 320 |
| Material | Mild steel Q235 | ||||

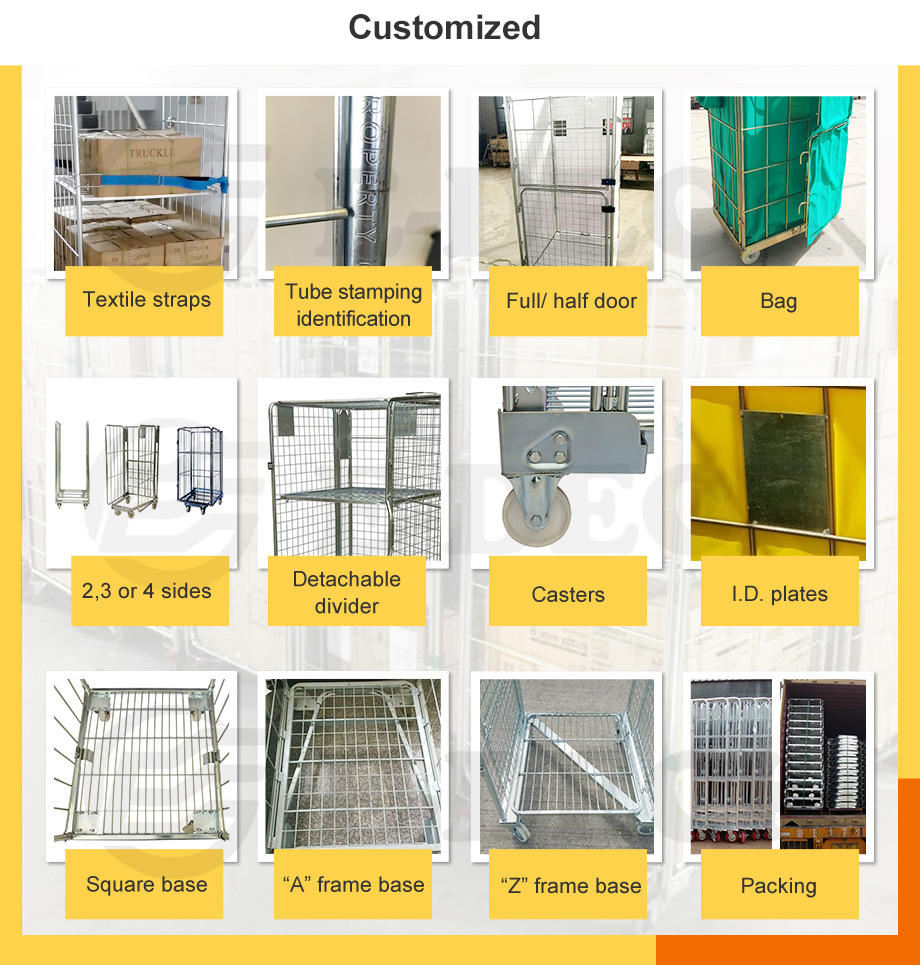

| Available design |
1. Optional extra gates, removable shelf(each with 60kg to 80kg loading capacity) and top lid 2. Optional base – square, "A","Z" type design 3. Possible to add name plates for identification |
||||
| Application area | Warehouse, logistic, supermarket, etc. | ||||
| Finish | Zinc/powder coating | ||||
| Remark | Costomized or OEM support | ||||

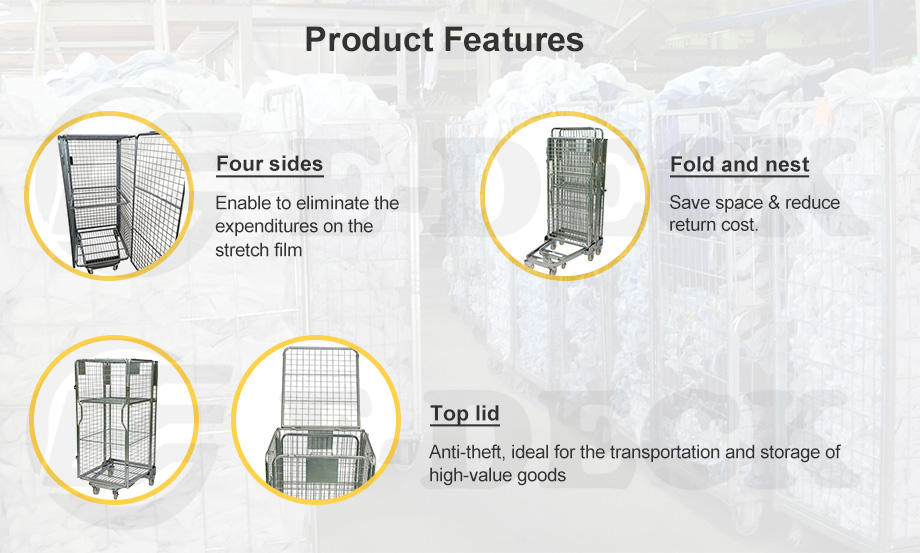

| Product Features |
1.Steel frame with wire mesh in-fill 2.2 fixed and 2 swivel castors with or without brakes 3. Castors material options include nylon, pp as well as rubber |
||||

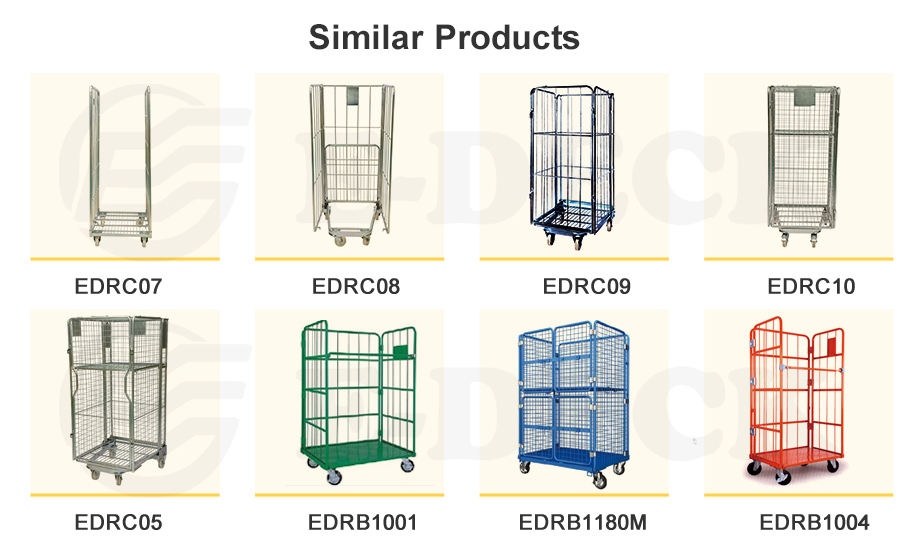

Related product design
