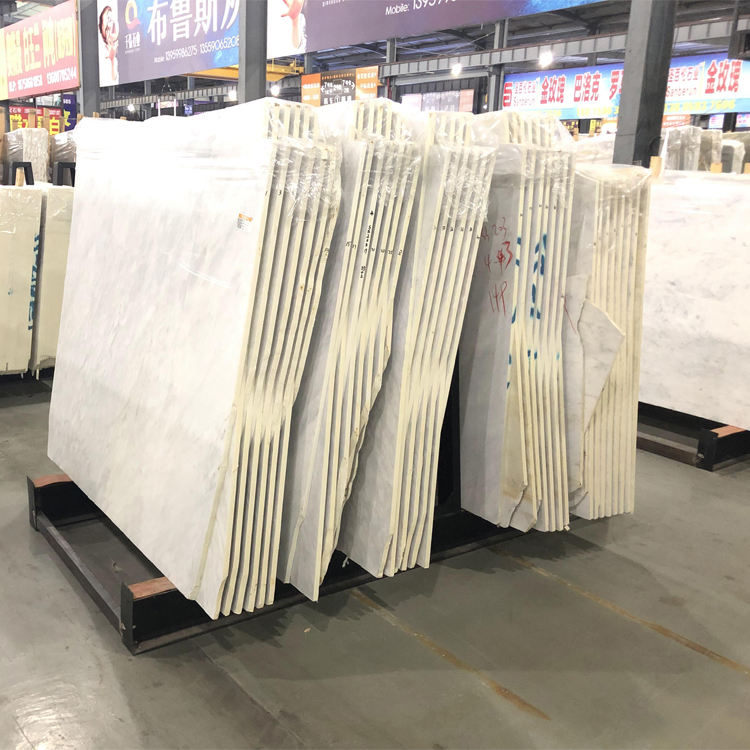

Stone Granite Marble Quartz Storage steel Stone Slab A frame Rack Vertical type

What Are The Product Details Model SLHAC-1300-G SLHAC-2000-G SLHAC-2700-G Dimensions(LWH) 1200*1300*1600mm 2000*1300*1600mm 2700*1300*1600mm Number of Pieces Placed 2P 4P 6P Total Load 10T 20T 30T Max Height For Slab 2200mm 2200mm 2200mm Net Weight 9

Get a Free Quote

100%

Steel Quality

Heavy

Duty Rating

Custom

Sizes Built

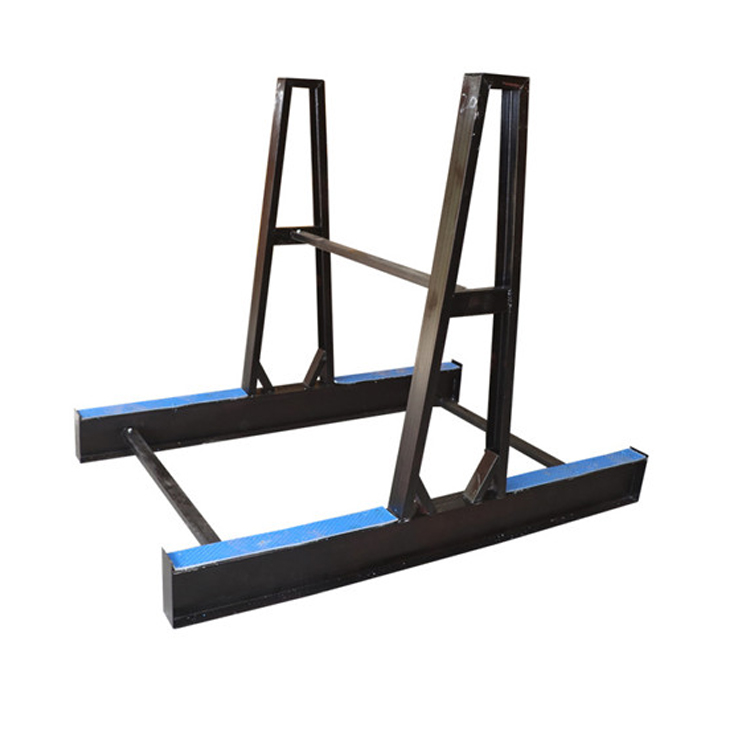

Stone Granite Marble Quartz Storage steel Stone Slab A frame Rack Vertical type

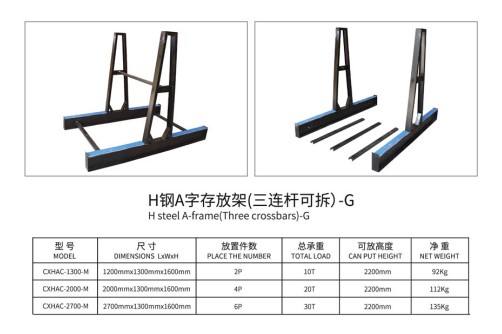

What Are The Product Details

Model	SLHAC-1300-G	SLHAC-2000-G	SLHAC-2700-G
Dimensions(L×W×H)	120013001600mm	200013001600mm	270013001600mm
Number of Pieces Placed	2P	4P	6P
Total Load	10T	20T	30T
Max Height For Slab	2200mm	2200mm	2200mm
Net Weight	92kg	112kg	135kg

Engineering Layout & Drawing Services

Liaoning Chuande Steel Pallet Racks provides complimentary structural engineering layouts based on your warehouse payload, stacking count, and handling trucks constraints.

Complimentary CAD 2D layouts and 3D structural model assessments.
Rigorous loading FEA stress-strain calculations for ultimate warehouse safety.
Custom structural options: Foldable legs, stacking cups, run gates, forklift guides.

B2B Racking Structural Engineering Calculator

Input your structural guidelines below. Our math system calculates material deflection, stress bounds, and recommends optimal profiles.

Beam Span / Bay Width (mm) Clear entry span between upright frames. Common: 2700mm, 3300mm.

Frame Depth (mm)

Target Loading Capacity per Level (kg) Uniformly Distributed Load (UDL) per pair of beams.

Steel Grade Conformity

Click Compute to calculate stress factors and display structural drawing recommendations.

Standard Packing	Steel banding strapping + stretch plastic film wrapping + protector edges.
Loading Quantities	Optimized nested stacking designs to increase cargo quantities in 40ft HQ Containers.
Lead Time	15 to 25 calendar days for standard production orders (depends on volumes).
