stackable racks
Stacking storage racks take place of the racks can provide design solutions and customized.
100%
Steel Quality
Heavy
Duty Rating
Custom
Sizes Built
|

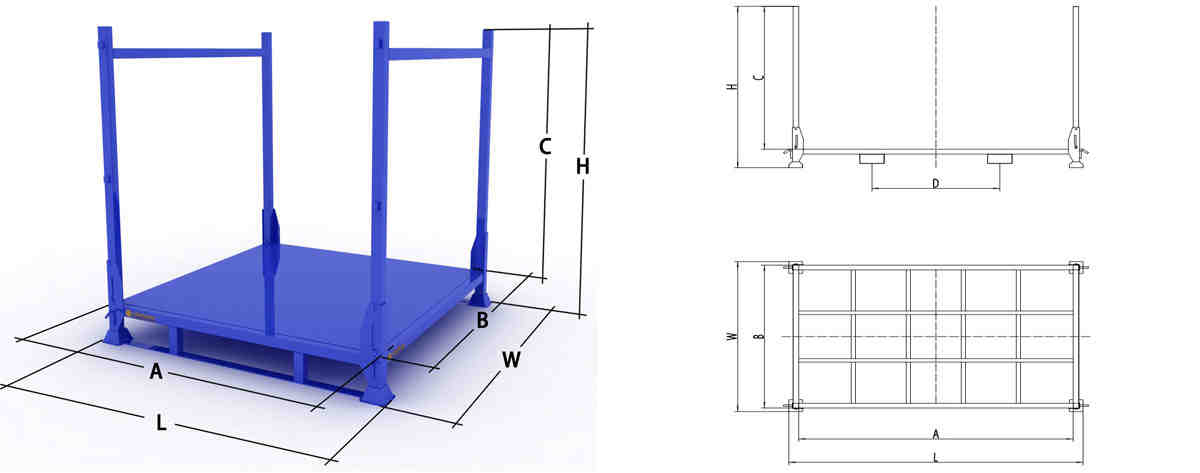

Exterior Dimensions: |
Folded Size: |
Interior Dimensions: |
Material |
Safe Working Load: |
Weight: |
Loading Quantity |
Surface treatment |
|
1410 x 1410 x 1460 mm 55.51 x 55.51 x 57.48 inches |
1410 x 1410 x 350 mm 55.51 x 55.51 x 13.77 inches |
1345 x 1270 x 1300 mm 52.95 x 50 x 51.18 inches |
Q235 |
3600kg |
72.37kg |
160 PCS / 40'HC |
Powder coating |
|
1660 x 1660 x 1660 mm 65.35 x 65.35 x 65.35 inches |
1660 x 1660 x 350 mm 65.35 x 65.35 x 13.77 inches |
1595 x 1520 x 1500 mm 62.79 x 59.84 x 59.05 inches |
Q235 | 3600kg | 88.61kg |
160 PCS / 40'HC |
Powder coating |
|
1760 x 1760 x 1660 mm 69.29 x 69.29 x 65.35 inches |
1760 x 1760 x 350 mm 69.29 x 69.29 x 13.77 inches |
1695 x 1620 x 1500 mm 66.73 x 63.77 x 59.05 inches |
Q235 | 3600kg | 93.96kg |
160 PCS / 40'HC |
Powder coating |
| Customized as required | |||||||
1.It's appropriate for tridmensitional storage of goods which be afraid of pressure.

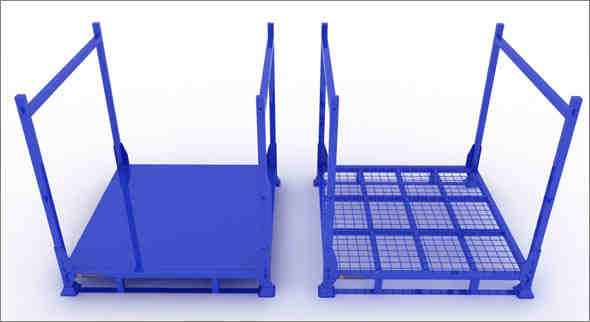

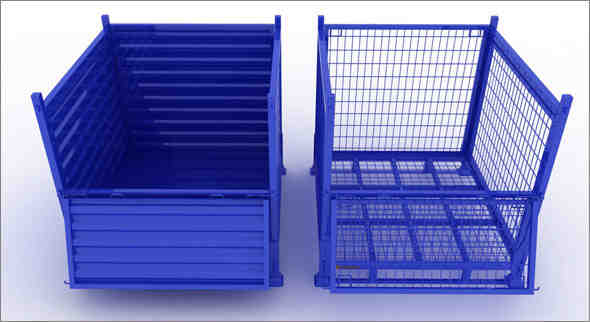

2.The base can be change from plate to grid according to material features.

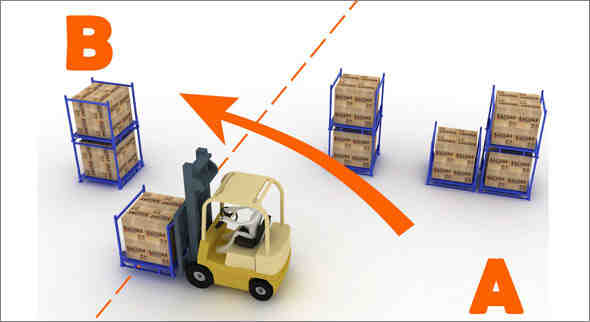

3.Convenience to use, you can change application site easily.
4.To maximize its use value, doors could be installed around mytrack, and that could transform a foldable stacking rack to a foldable box.

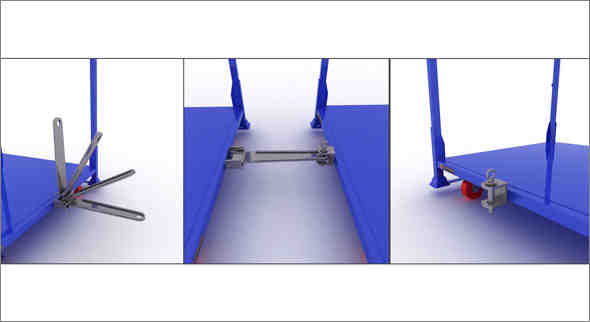

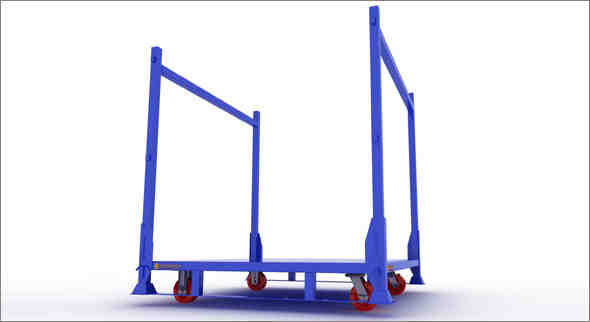

5.Trundle can be added to the base to facilitate the transfer of goods.
6.Retractor can be added to the base to realize centralized safety turnover of several racks.

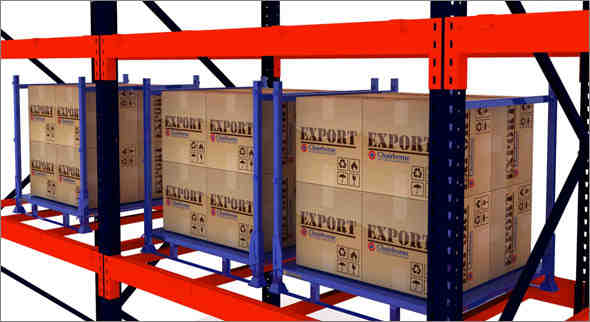

7.This rack can work with storage shelvs.

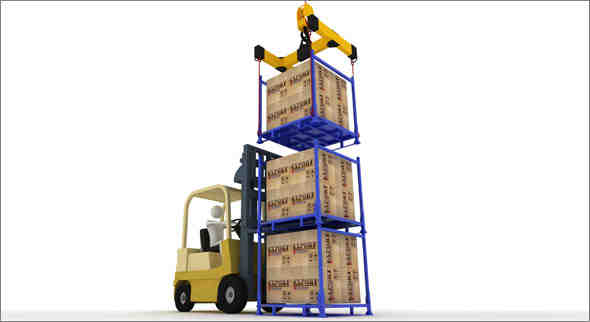

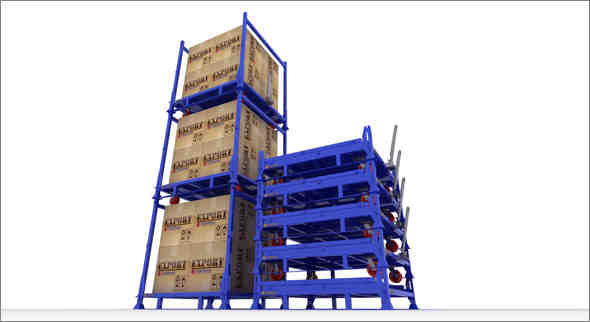

8.Using folklift or crane to stack the racks, increasing utility rate of space.
9.Stacking can come true whether at full or empty loading condition . It's convenient for storage and transportation.
