Single Sided and Double Sided Heavy Duty Structural Cantilever Style Racks
Product Description Cantilever Racking Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a c
100%
Steel Quality
Heavy
Duty Rating
Custom
Sizes Built
Product Description
Cantilever Racking
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a clear opening in front of rack. Jracking cantilever racking is used around the world. We can tailor-make according to goods size and warehouse space. We can provide various column heights, arm lengths, base lengths (single or double sided) to ensure an ideal solution for your warehouse.

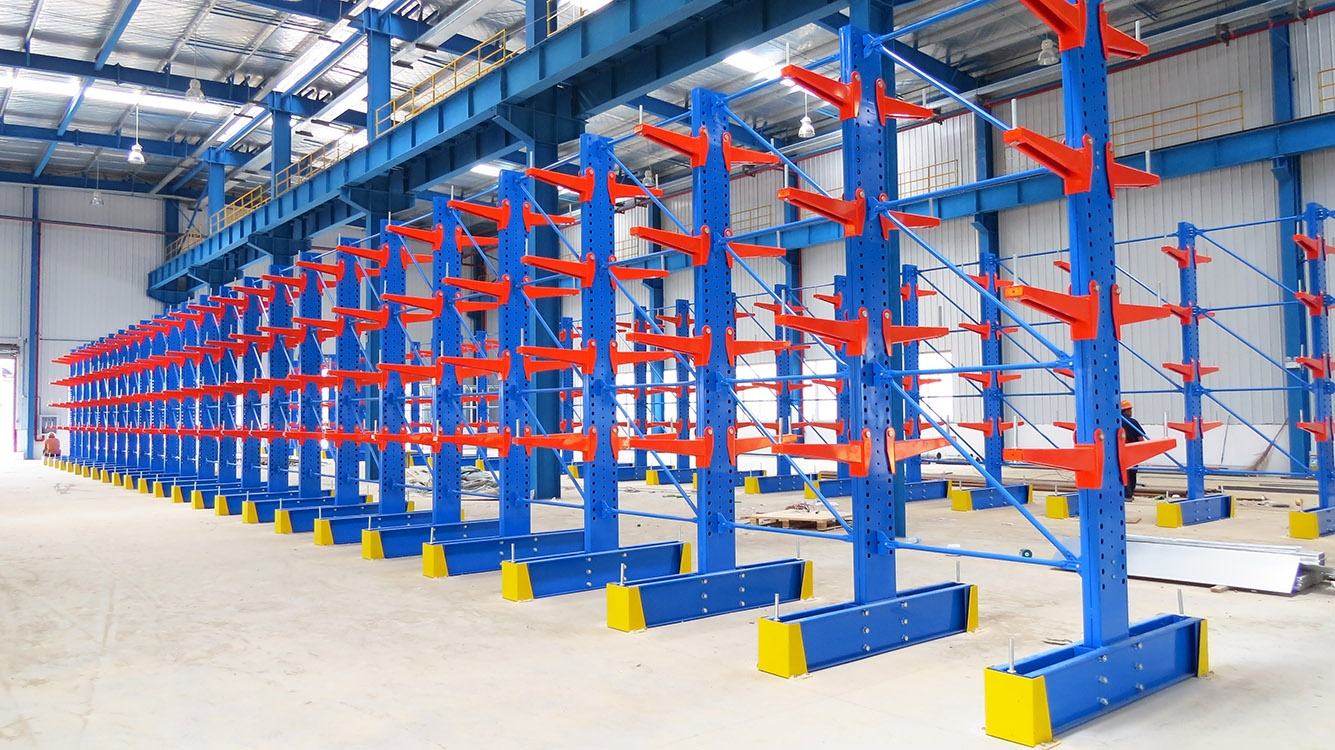

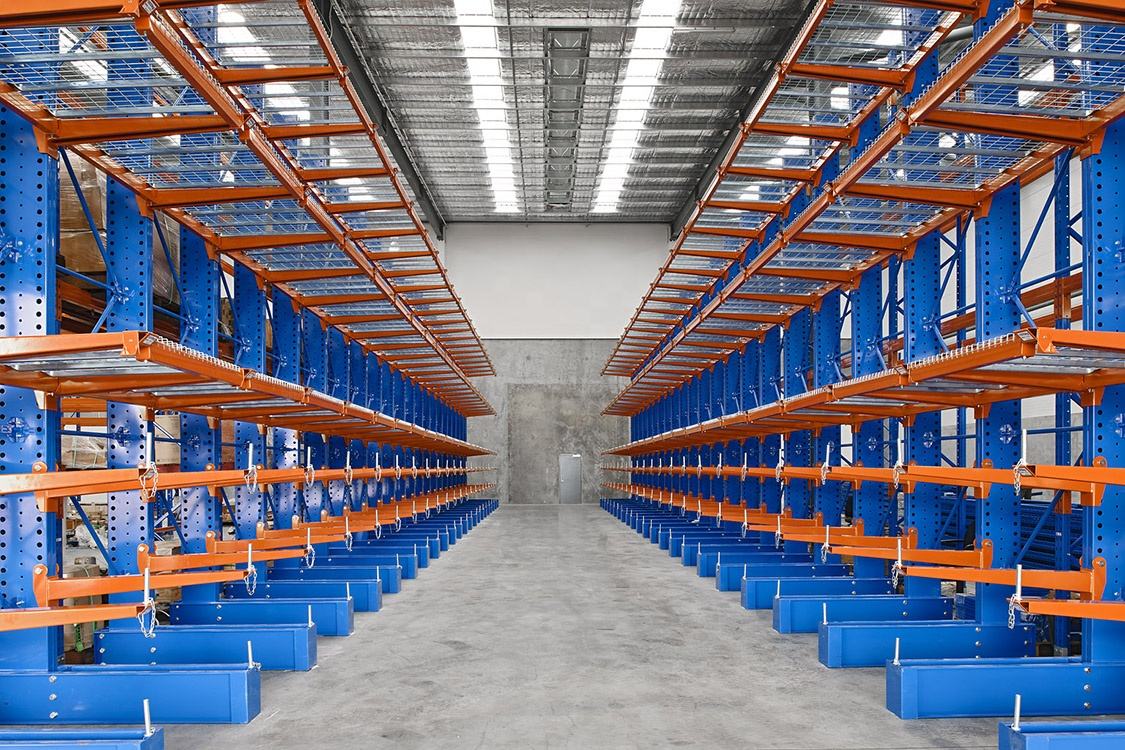

Product Display
Brief Introduction

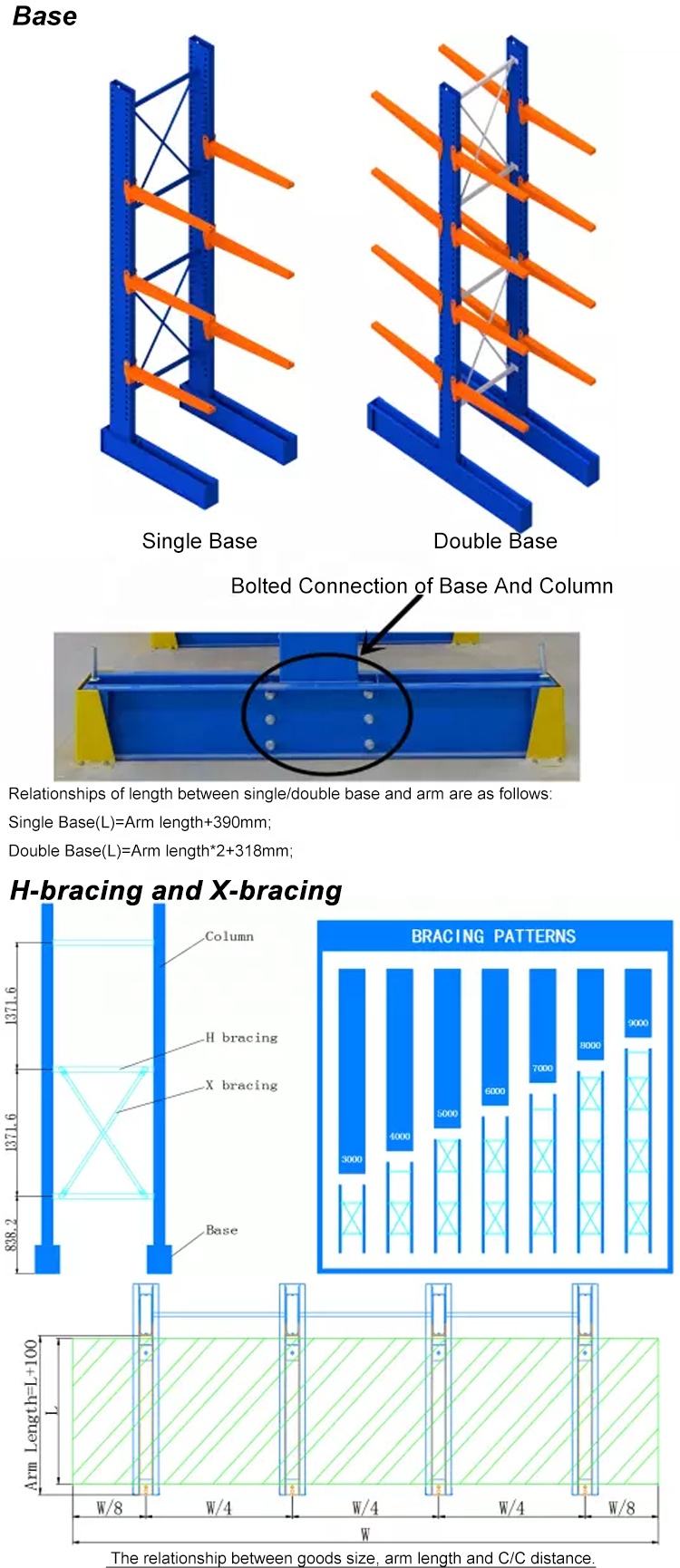

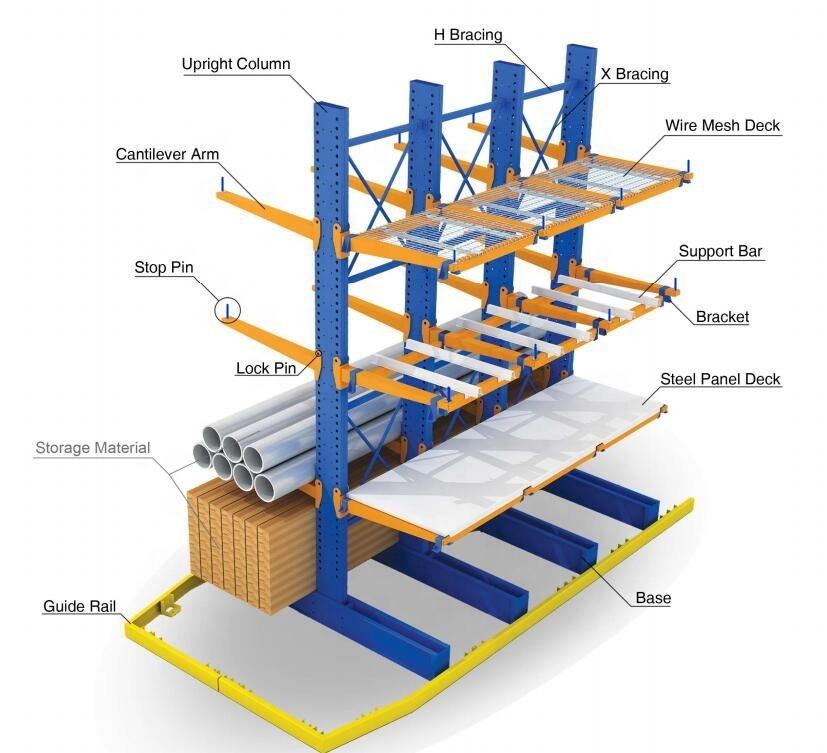

Jracking Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug. The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar is designed to improve the whole stability. Both single-side and double-side bases are available to meet different storage requirements.
Advantages
1. Exceeding 6m height is available, the highest column is able to reach 10.5m.

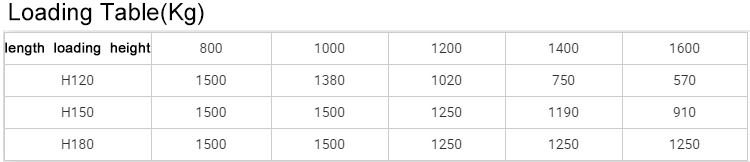

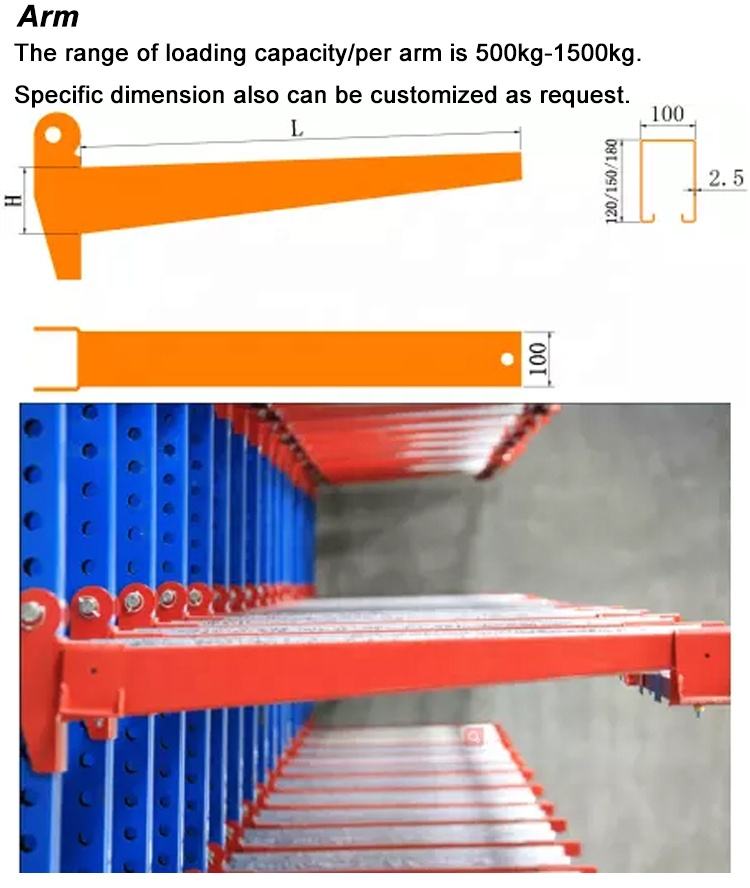

2. Heavy loading, loading of single-arm can up to 1500kg.
3. Keep selling to Australia market more than 10 years.
4. Long and irregular material goods stored.
5. Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
6. Except from the regular size, the longest arm can last to 3m.

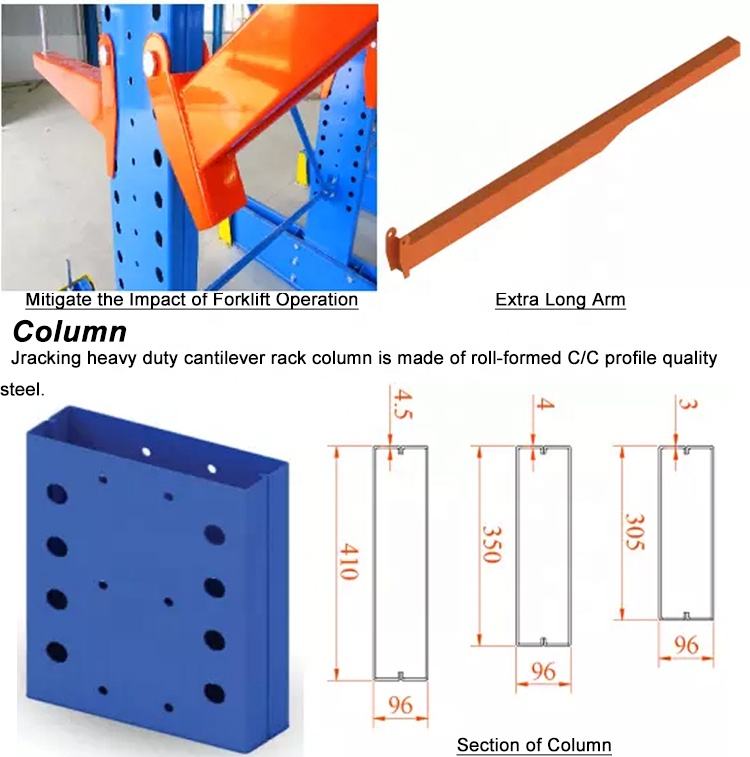

7. The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
2. Heavy loading, loading of single-arm can up to 1500kg.
3. Keep selling to Australia market more than 10 years.
4. Long and irregular material goods stored.
5. Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
6. Except from the regular size, the longest arm can last to 3m.
7. The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
C/C distance 1000, 1200,1400, 1600, 1800, 2000.
Other specific dimension also can be customized as request.
