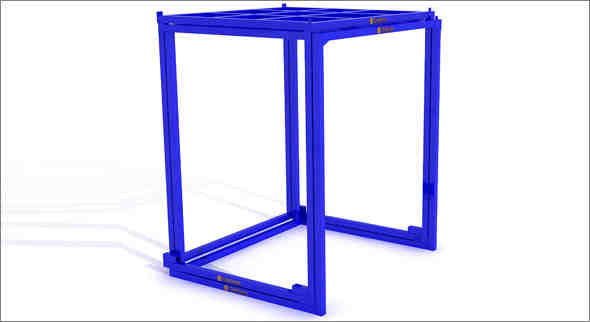

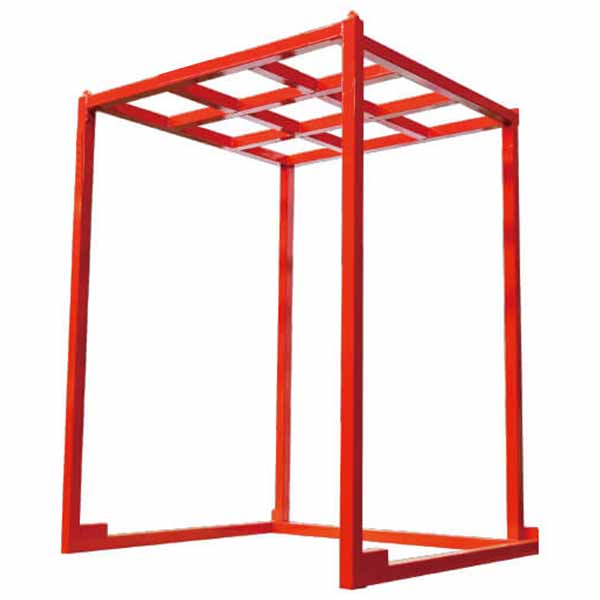

Nesting Racks

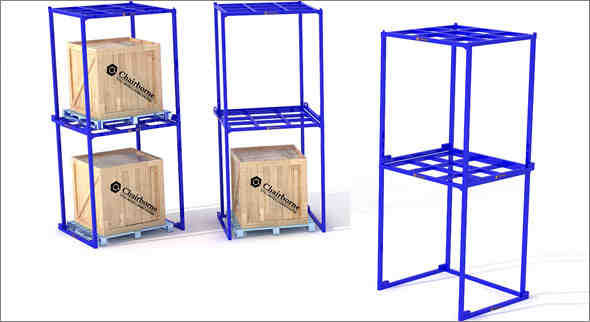

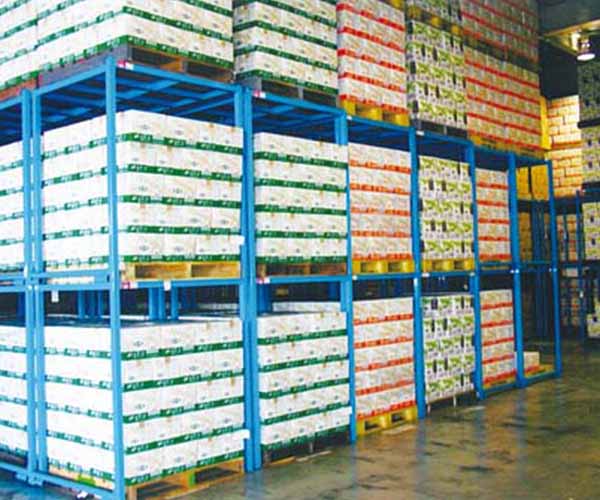

Heavy duty construction pallet racks which can be stacked up to 3 high
100%
Steel Quality
Heavy
Duty Rating
Custom
Sizes Built
|

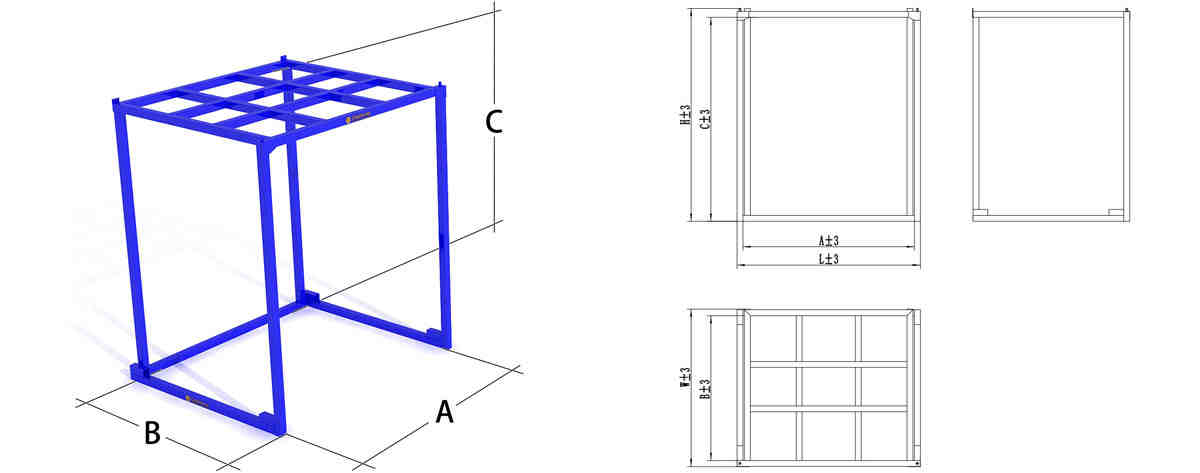

Exterior Dimensions: |
Interior Dimensions: |
Material |
Safe Working Load: |
Weight: |
Loading Quantity |
Surface treatment |
|
1000 x 1200 x 1500 mm 39.37 x 47.24 x 59.05 inches |
1120 x 1208 x 1560 mm 44.09 x 47.55 x 61.41 inches |
Q235 |
3000kg |
41.9kg |
160 PCS / 40'HC |
Powder coating |
|
1200 x 1200 x 1500 mm 47.24 x 47.24 x 59.05 inches |
1320 x 1208 x 1560 mm 51.96 x 47.55 x 61.41 inches |
Q235 | 3000kg | 44.19kg |
160 PCS / 40'HC |
Powder coating |
|
1300 x 1100 x 1500 mm 51.18 x 43.3 x 59.05 inches |
1420 x 1108 x 1560 mm 55.9 x 43.62 x 61.41 inches |
Q235 | 3000kg | 46.04kg |
160 PCS / 40'HC |
Powder coating |
| Customized as required | ||||||

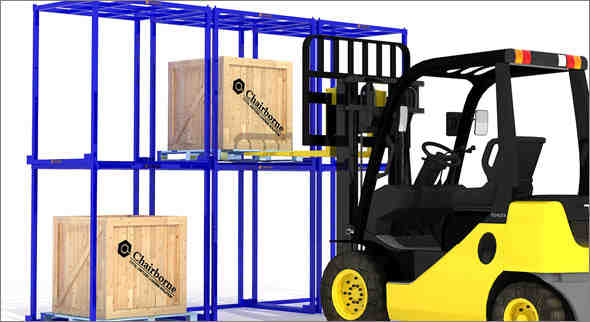

1.This product needs to be used together with pallet, which is suitable for rapid establishment and removal of three-dimensional storage space.
2.The rack can be arranged in different positions and combinations according to the situation of storage space to maximize space utilization.

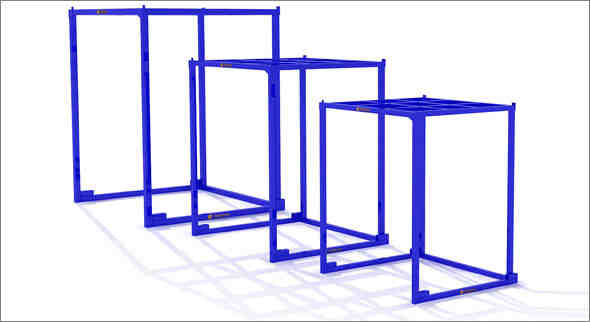

3.The rack can be stacked and placed when no load, which is convenient for storage and transportation.
4.The specifications of this rack can be customized according to user requirements.
5.When stacking this product, the lowest storage space is not limited by strength, and goods of any weight can be placed.
6.The rack is equipped with positioning pin to improve positioning accuracy and stability during stacking.

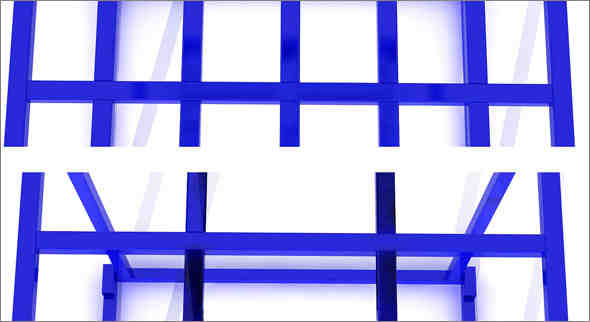

7.The number of transverse bracing can be increased or decreased according to the actual loading specifications.
