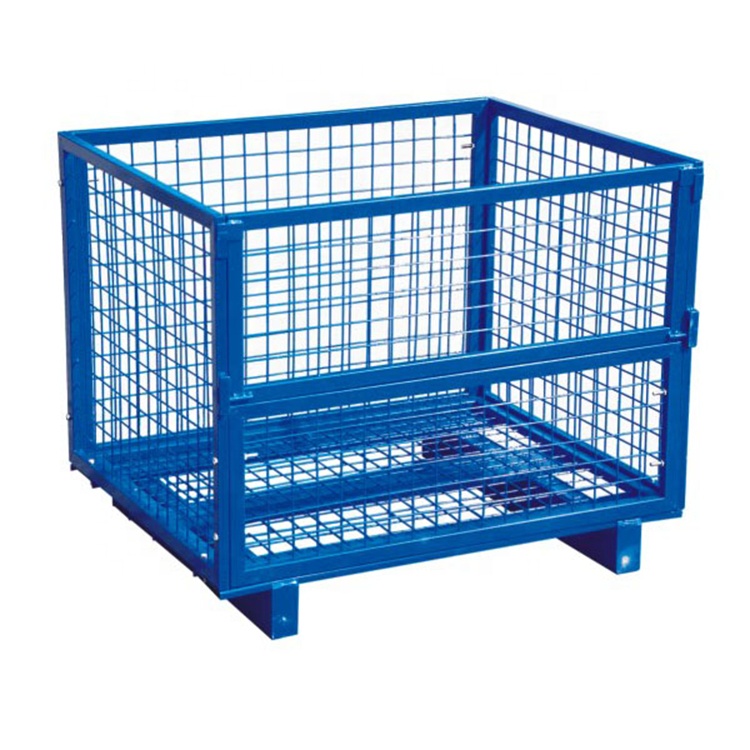

Metal Stackable Wire Mesh Pallet Cage Foldable Steel Mesh Box Pallet
Metal Stackable Wire Mesh Pallet Cage Foldable Steel Mesh Box Pallet/Collapsible and space saving、 To be able to carry high volume of materials when assembled
100%
Steel Quality
Heavy
Duty Rating
Custom
Sizes Built
Product Details
Feature:

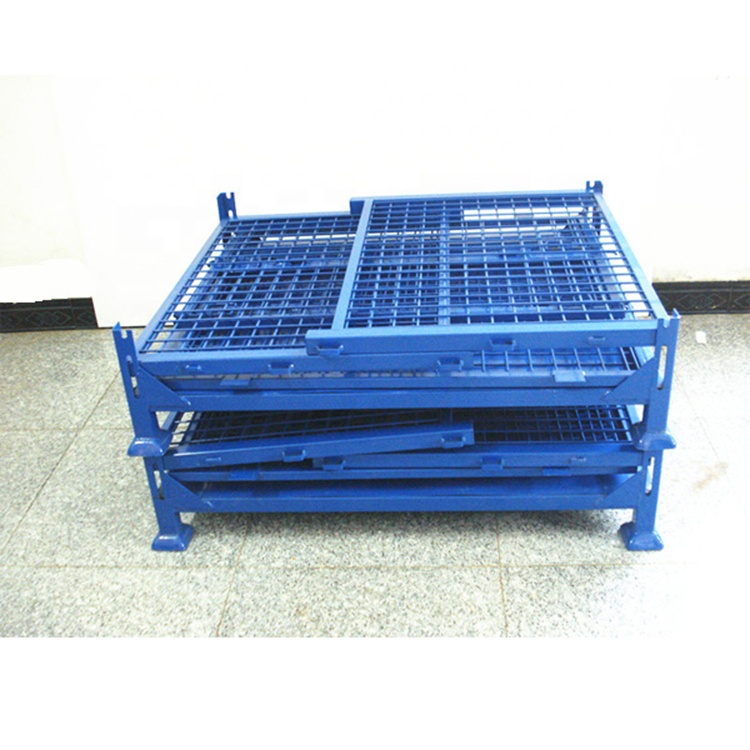

1. Collapsible and space saving
2. To be able to carry high volume of materials when assembled

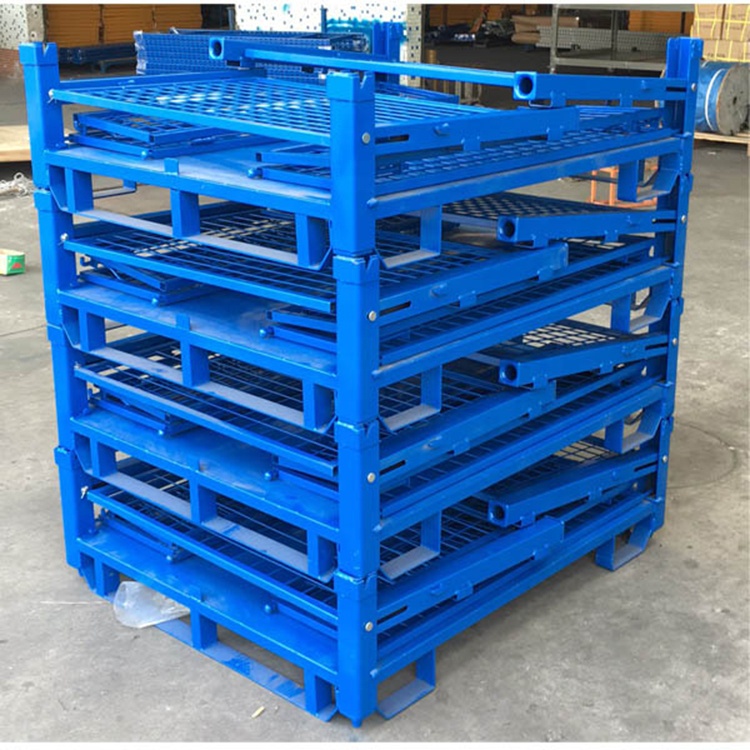

3. Collapsible and of low transportation cost
4. May be moved from one point to another by forklift truck
5. Can be stacked on top of each other to save storage space.
6. Surface treatment galvanized.
7. Galvanized or powder coated finish.
8. Contents clearly visible even when stacking 3 or 4 high.
Specs Parameter
| No | Wire (mm) | Mesh (mm) | Length (mm) | Width (mm) | Height (mm) | Foot (mm) | Weight (mm) | Volume (mm) | Loading capacity(mm) |
| A1 | 6.0 | 50*50 | 800 | 600 | 640 | 100 | 29 | 0.22 | 800 |
| A2 | 6.0 | 50*50 | 1000 | 800 | 840 | 100 | 45 | 0.52 | 1200 |
| A3 | 6.0 | 50*50 | 1200 | 1000 | 890 | 100 | 60 | 0.84 | 1500 |
| B1 | 6.4 | 50*50 | 1000 | 800 | 840 | 100 | 53 | 0.52 | 1500 |
| B2 | 6.4 | 50*50 | 1200 | 1000 | 890 | 100 | 77 | 0.84 | 2000 |
| B3 | 6.4 | 50*50 | 1000 | 800 | 500 | 100 | 38 | 0.26 | 1000 |
| S1 | 6.4 | 50*50 | 1000 | 800 | 840 | 100 | 44 | 0.52 | 1000 |
| S2 | 6.4 | 50*50 | 1200 | 1000 | 890 | 100 | 64 | 0.84 | 1000 |
| S3 | 6.4 | 50*50 | 1550 | 1120 | 1000 | 100 | 116 | 1.56 | 2500 |
| C1 | 4.8 | 50*50 | 800 | 500 | 540 | 100 | 22 | 0.15 | 500 |
| C2 | 4.8 | 50*50 | 1000 | 800 | 840 | 100 | 38 | 0.52 | 500 |
| E | 3.0 | 30*30 | 800 | 500 | 530 | 100 | 17 | 0.15 | 250 |
Detail
