Heavy Duty Industrial Racking Warehouse Storage Pipe Cantilever Rack

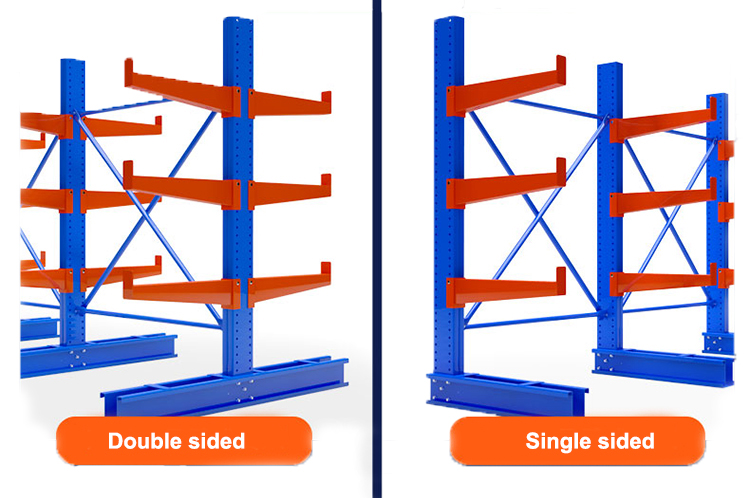

Cantilever rack is also called arm rack, single sided and double sided are both available. Cantilever rack is quite simple structure

Get a Free Quote

100%

Steel Quality

Heavy

Duty Rating

Custom

Sizes Built

Heavy Duty Industrial Racking Warehouse Storage Pipe Cantilever Rack

Overview

Key attributes

Industry-specific attributes

Type

Cantilevered

Material

Steel

Feature

Corrosion Protection

Use

Warehouse Rack

Other attributes

Place of Origin

China

Brand Name

steelpalle

Model Number

cantilever racking

Depth

1.5-3mm

Weight Capacity

500-3500kg

Width

900-3000mm

Height

2000-8000mm

Product name

Heavy Duty Cantilever Racks

Usage

Warehouse Storage

Color

RAL System

Surface treatment

Color Powder Coated

Size

Customer Size

Application

Goods Storage

Packing

Customers' Request

Style

Heavy Duty Selective Shelf

Structure

Knocked-down Structure

MOQ

1 Set

Packaging & delivery

Package Type:

Palletized,Export-Purpose Packaging

Supply Ability

100000 Set/Sets per Month

Product details

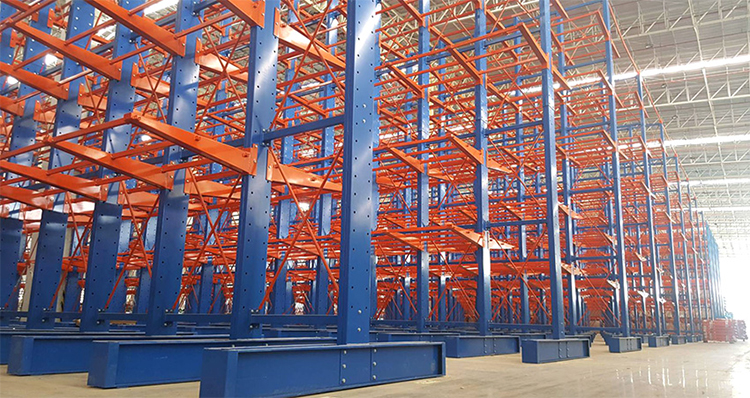

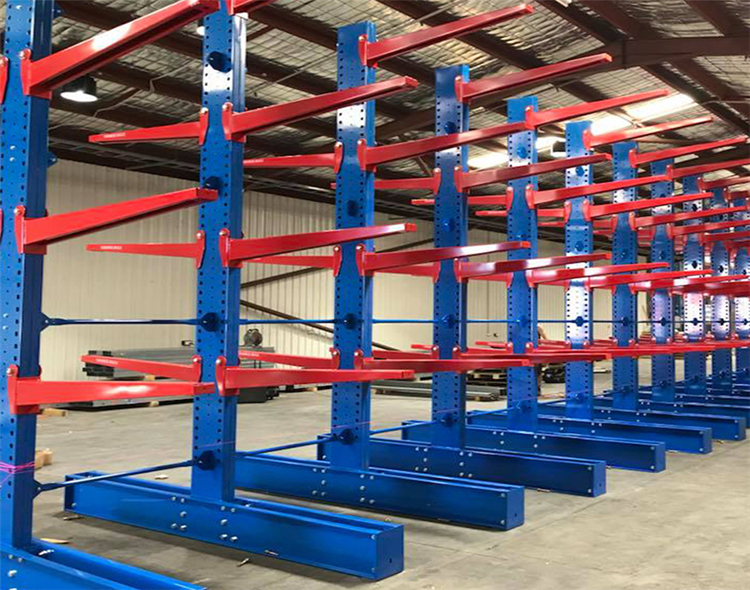

Heavy duty cantilever racking

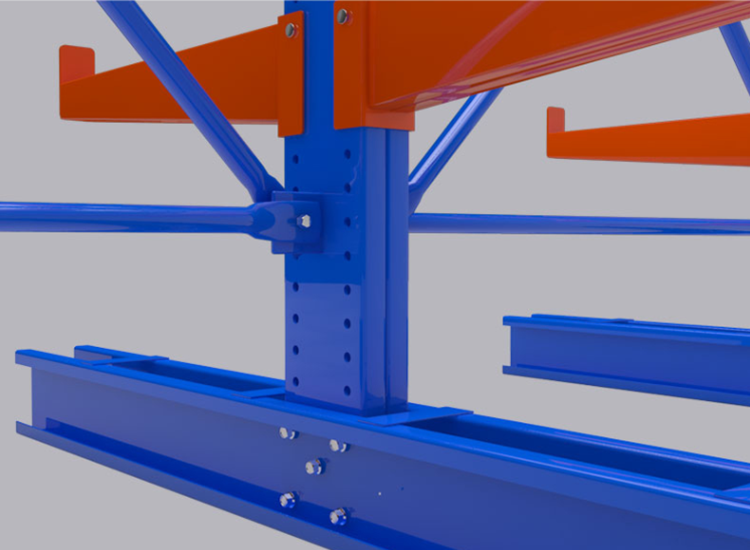

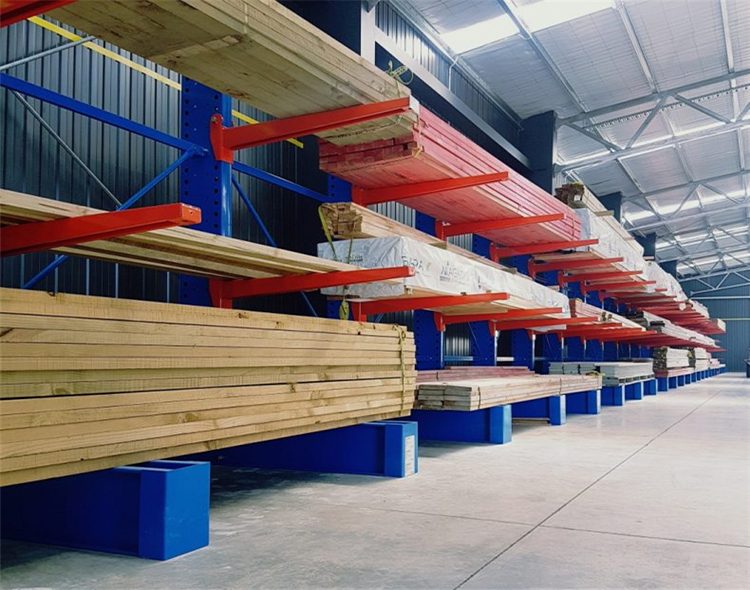

Cantilever rack is also called arm rack, single sided and double sided are both available. Cantilever rack is quite simple structure, very easy to be assembled and disassembled.It is ideal solution for storage of long objects like metal extrusions,steel bars, tubes, pipes, carpet rolls, lumber and furniture etc.

Product Name		Cantilever racking
Style		Quick access,adjustable
Material		Grade Q235/H-steel
Certification		ISO9001
Standard Color		Blue(RAL5017), Orange(RAL2004), Green(RAL6000), Light Grey (RAL7035), Yellow(RAL1037)
Adjustable Pitch		50mm,50.8mm,76.2mm
Access Style		High accessibility & selectivity
Surface Treatment		Powder Coated or Galvanized
Application Environment		Normal Temperature or Freezer
Design Service		Free CAD service available
Back-up Service		Installation Drawing/On Site Instruction
Lead time		3 weeks for 2*40' container
Standard package		Palletized, Export-Purpose Packaging
Container Load		15-18tons/120' container, 20-25tons/140' container
Trade Term		EXW/FOB/CNF/CIF

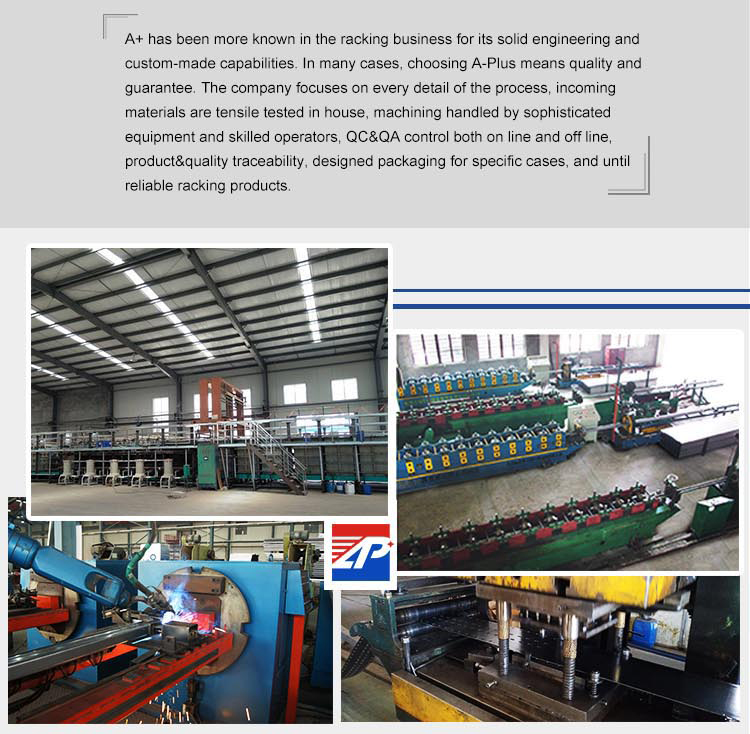

Company Profile

Engineering Layout & Drawing Services

Liaoning Chuande Steel Pallet Racks provides complimentary structural engineering layouts based on your warehouse payload, stacking count, and handling trucks constraints.

Complimentary CAD 2D layouts and 3D structural model assessments.
Rigorous loading FEA stress-strain calculations for ultimate warehouse safety.
Custom structural options: Foldable legs, stacking cups, run gates, forklift guides.

B2B Racking Structural Engineering Calculator

Input your structural guidelines below. Our math system calculates material deflection, stress bounds, and recommends optimal profiles.

Beam Span / Bay Width (mm) Clear entry span between upright frames. Common: 2700mm, 3300mm.

Frame Depth (mm)

Target Loading Capacity per Level (kg) Uniformly Distributed Load (UDL) per pair of beams.

Steel Grade Conformity

Click Compute to calculate stress factors and display structural drawing recommendations.

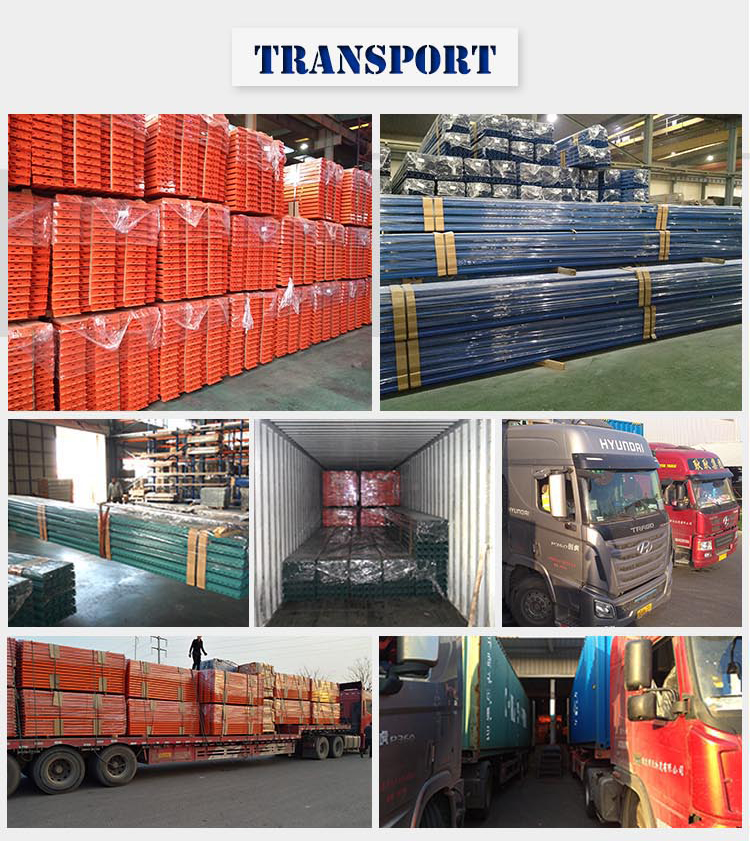

Standard Packing	Steel banding strapping + stretch plastic film wrapping + protector edges.
Loading Quantities	Optimized nested stacking designs to increase cargo quantities in 40ft HQ Containers.
Lead Time	15 to 25 calendar days for standard production orders (depends on volumes).
