Item No:
|
B4.8
|
|

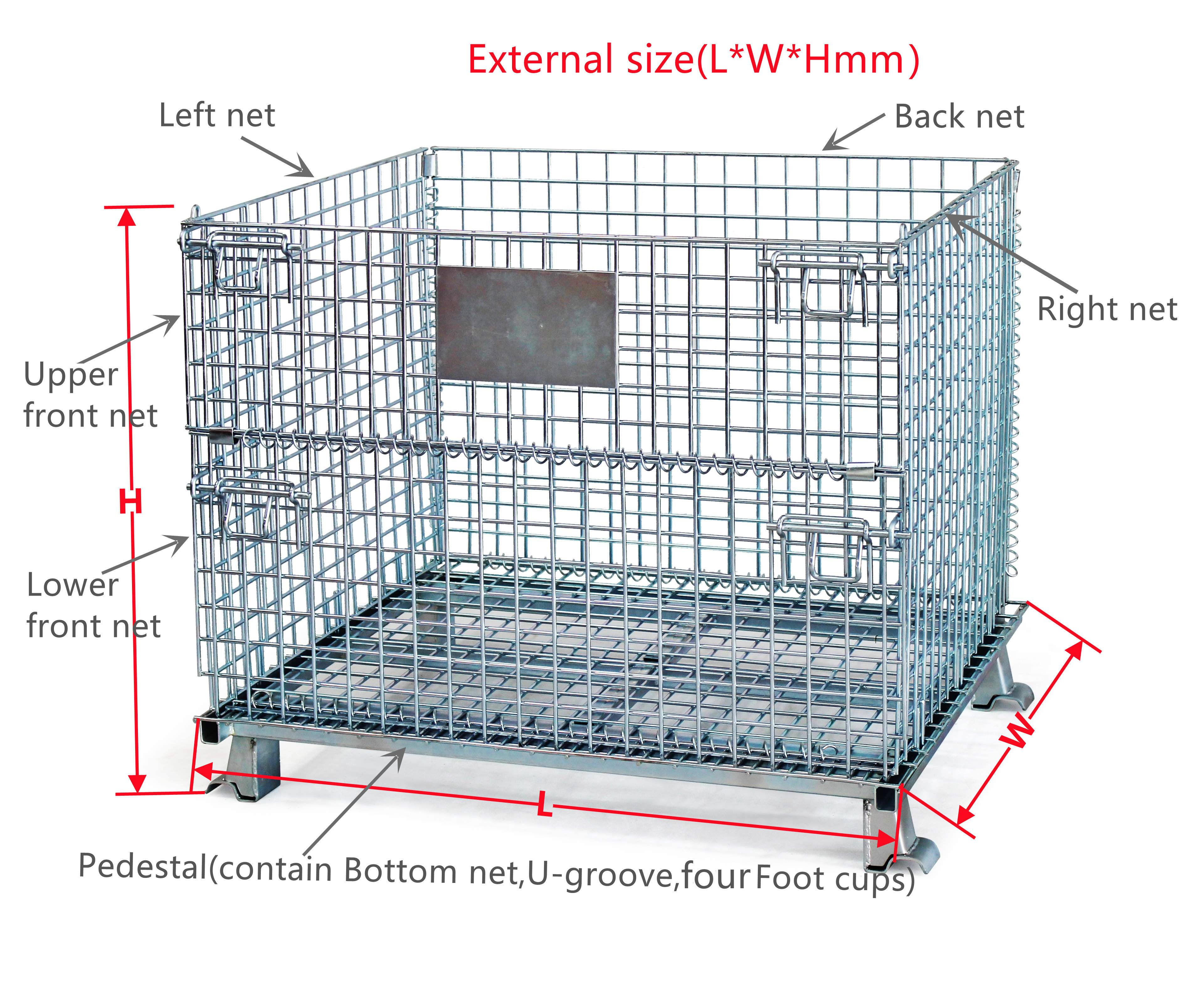

External size:
|
1000*800*840mm
|
|

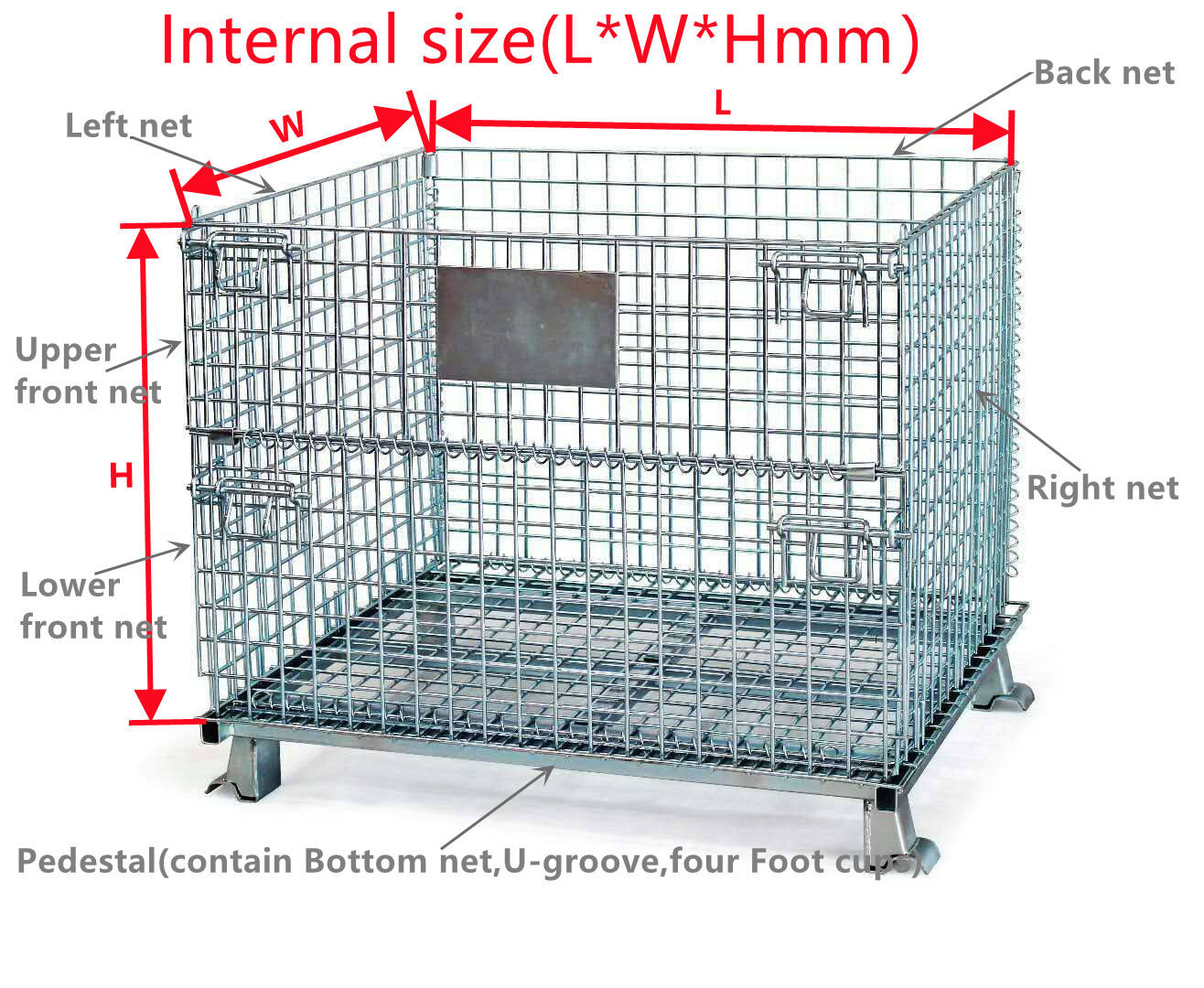

Internal size:
|
950*750*700mm
|
|
Grid size:
|
50*50mm
|
|
Dia of mesh :
|
4.8mm
|
|
Volume：
|
0.50m3
|
|
Bearing capacity：
|
600kg
|
|

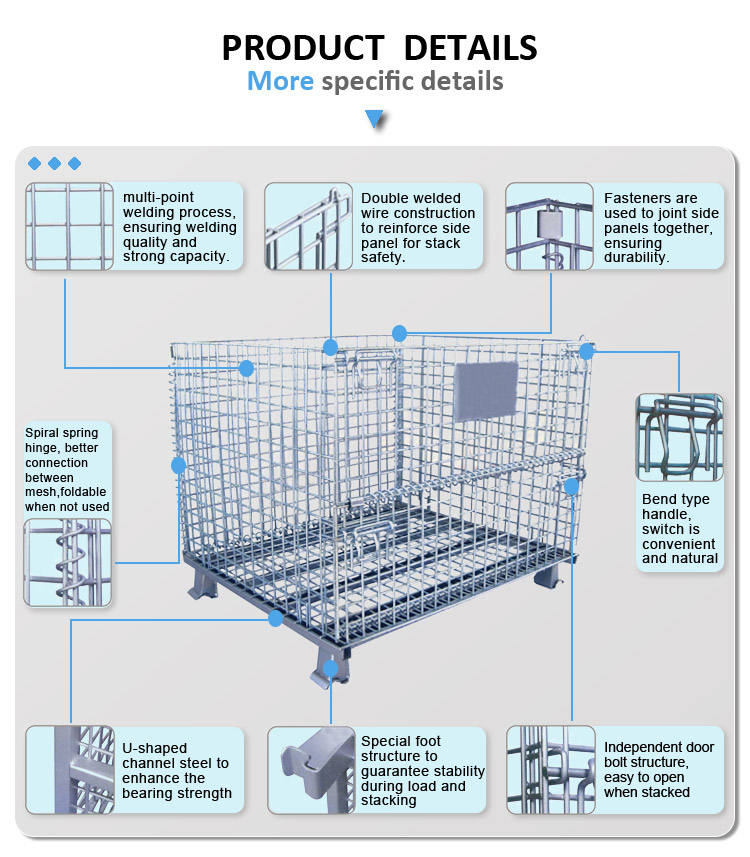

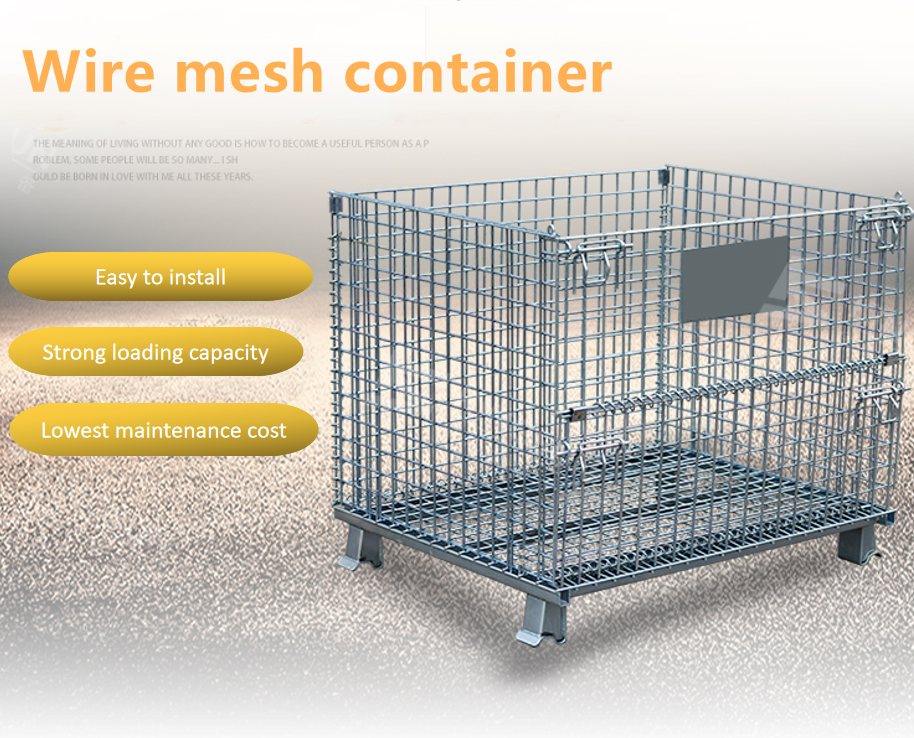

Features of folding storage cage：
|

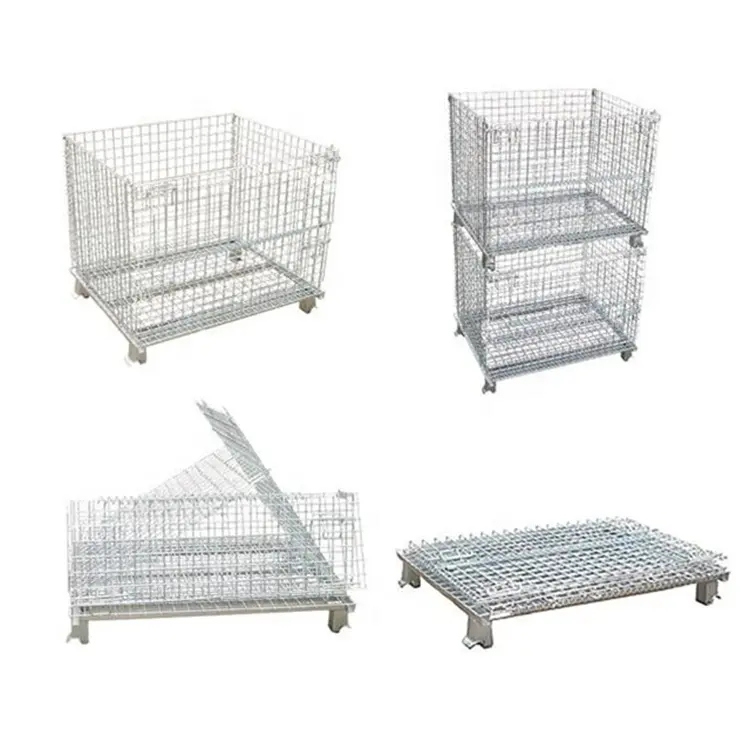

1.Folding structure, save space.
|
|
|

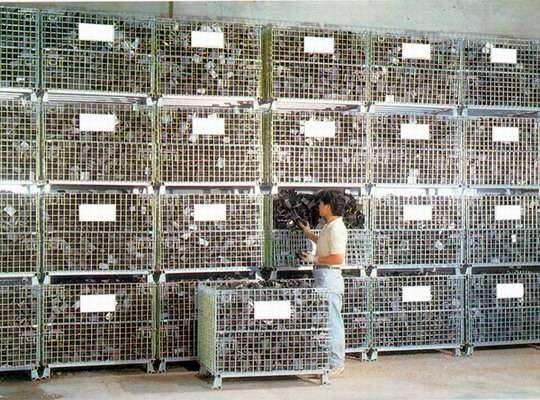

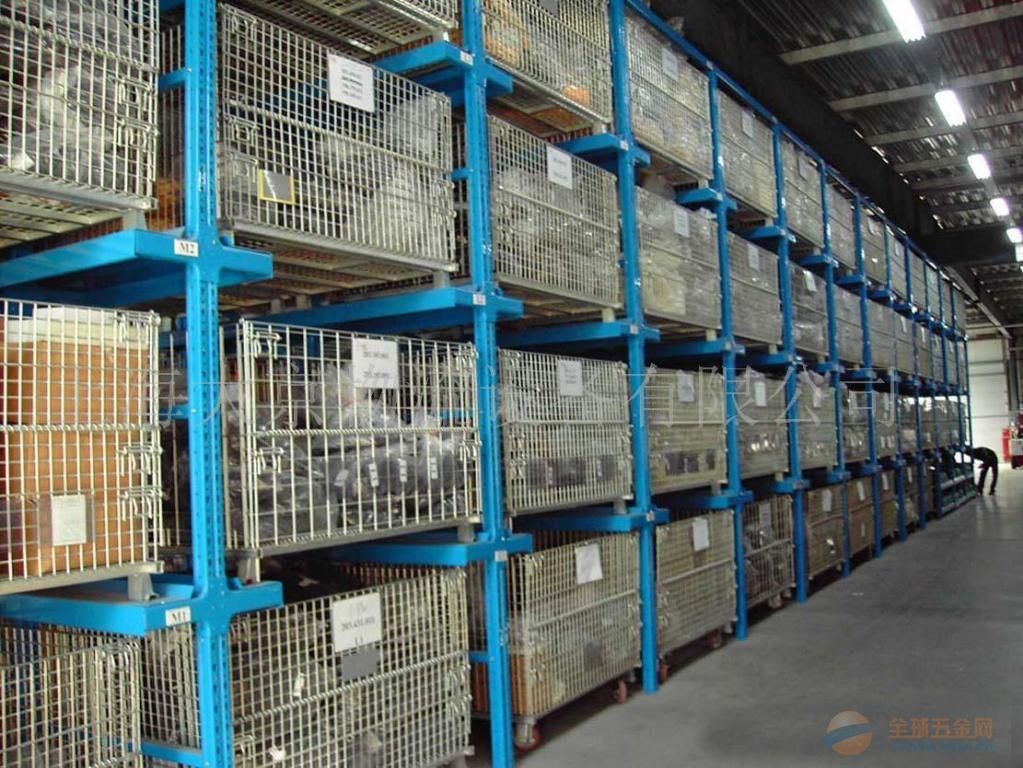

2.Can be stacked four layers to achieve three-dimensional storage.
|
|
|

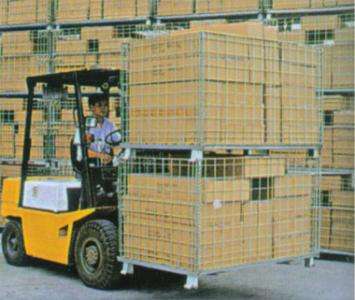

3.Easy fork access from all sides.
|
|
|
4.Surface treatment: galvanization or powder coating is available.
|
|
|
5.Size can be customized.
|
|
Common Stock List
|
|
|
外尺寸
External size L*w*h(mm)
|
内尺寸
lnternal size L*W*H(mm)
|
网间格
Grid size(mm)
|
线径
Dia of mesh(mm)
|
承重
Capacity(kg)
|
门
Gate style
|
|
A-1
|
800*600*640
|
750*550*500
|
50*50
|
5.8
|
800
|
全开/半开 Fully open/semi-open
|
|
A5.6
|
800*600*640
|
750*550*500
|
50*50
|
5.6
|
700
|
|
A5.2
|
800*600*640
|
750*550*500
|
50*50
|
5.2
|
500
|
|
A4.8
|
800*600*640
|
750*550*500
|
50*50
|
4.8
|
400
|
|
|
|
B-1
|
1000*800*840
|
950*750*700
|
50*50
|
5.8
|
1200
|
全开/半开 Fully open/semi-open
|
|
B5.6
|
1000*800*840
|
950*750*700
|
50*50
|
5.6
|
1000
|
|
B5.2
|
1000*800*840
|
950*750*700
|
50*50
|
5.2
|
700
|
|
B4.8
|
1000*800*840
|
950*750*700
|
50*50
|
4.8
|
500
|
|
|
|
C-1
|
1200*1000*890
|
1150*950*750
|
50*50
|
5.8
|
1500
|
全开/半开 Fully open/semi-open
|
|
C5.6
|
1200*1000*890
|
1150*950*750
|
50*50
|
5.6
|
1200
|
|
C-2（small size)
|
1200*1000*890
|
1150*950*750
|
50*100
|
5.6
|
1000
|
|
C5.2
|
1200*1000*890
|
1150*950*750
|
50*100
|
5.2
|
800
|
|
C4.8
|
1200*1000*890
|
1150*950*750
|
50*100
|
4.8
|
600
|
Engineering Layout & Drawing Services
Liaoning Chuande Steel Pallet Racks provides complimentary structural engineering layouts based on your warehouse payload, stacking count, and handling trucks constraints.
- Complimentary CAD 2D layouts and 3D structural model assessments.
- Rigorous loading FEA stress-strain calculations for ultimate warehouse safety.
- Custom structural options: Foldable legs, stacking cups, run gates, forklift guides.

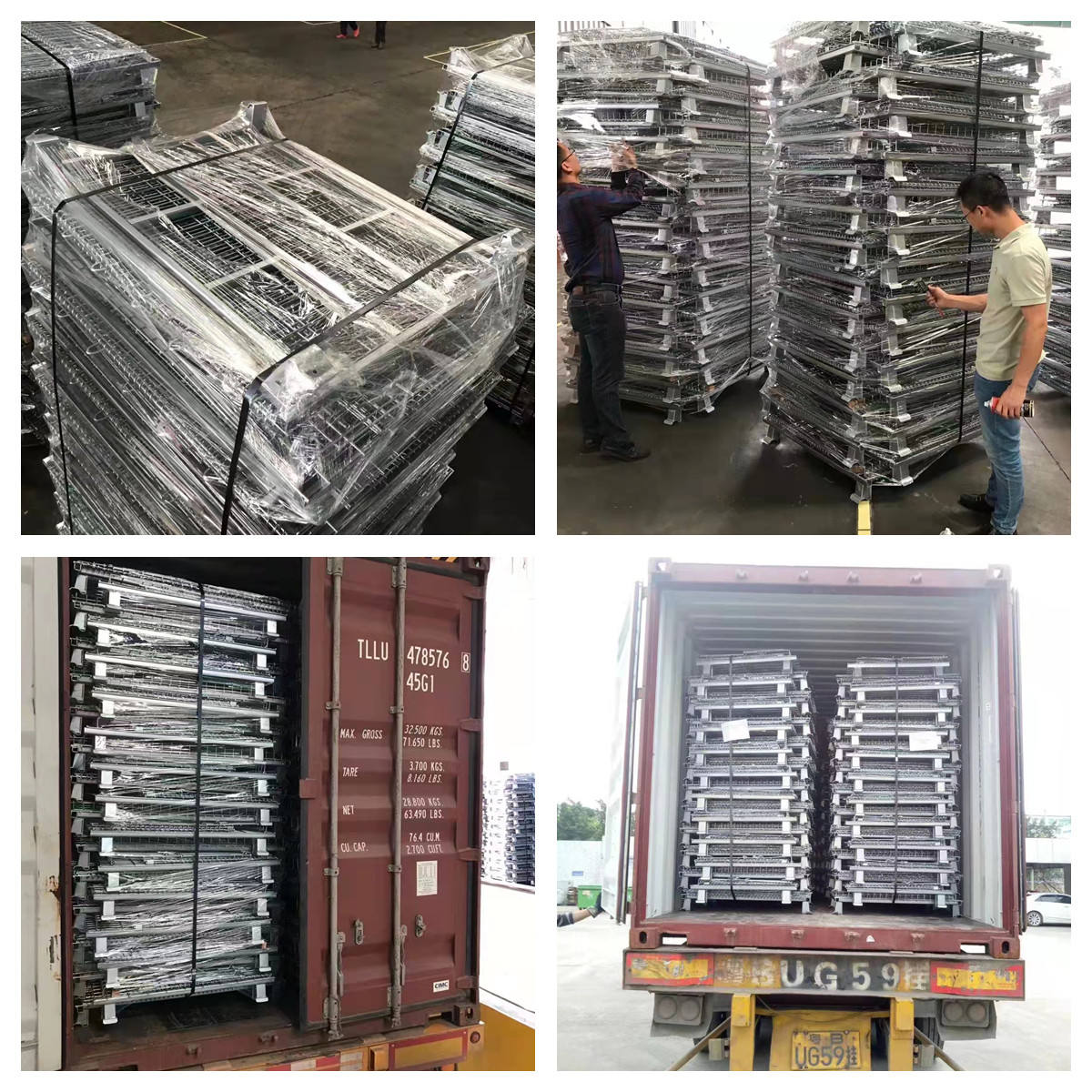

Logistics Packing & Shipping Details
Our products are packaged to optimize space and minimize freight damages during international sea container transits.
|
Standard Packing |
Steel banding strapping + stretch plastic film wrapping + protector edges. |
|
Loading Quantities |
Optimized nested stacking designs to increase cargo quantities in 40ft HQ Containers. |
|
Lead Time |
15 to 25 calendar days for standard production orders (depends on volumes). |
