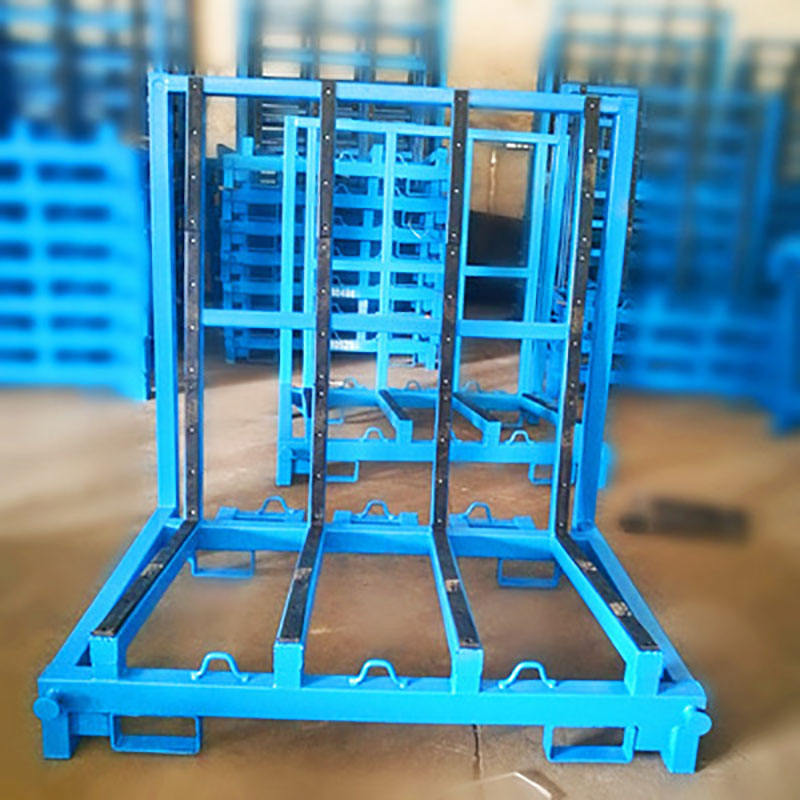

Granite/Marble Slabs For Transport Rack Trolley L Frame Glass steel rack

Specification item value Place of Origin China Brand Name HAOWEI Model Number L Frame Type Glass steel rack Material Steel Feature Durable Use Warehouse Rack Depth Customized Weight Capacity Customized Width Customized Height Customized Size Customiz

Get a Free Quote

100%

Steel Quality

Heavy

Duty Rating

Custom

Sizes Built

Granite/Marble Slabs For Transport Rack Trolley L Frame Glass steel rack

Specification

item	value
Place of Origin	China
Brand Name	HAOWEI
Model Number	L Frame
Type	Glass steel rack
Material	Steel
Feature	Durable
Use	Warehouse Rack
Depth	Customized
Weight Capacity	Customized
Width	Customized
Height	Customized
Size	Customized
Density	High Density Storage Capacity

Product Description

Engineering Layout & Drawing Services

Liaoning Chuande Steel Pallet Racks provides complimentary structural engineering layouts based on your warehouse payload, stacking count, and handling trucks constraints.

Complimentary CAD 2D layouts and 3D structural model assessments.
Rigorous loading FEA stress-strain calculations for ultimate warehouse safety.
Custom structural options: Foldable legs, stacking cups, run gates, forklift guides.

B2B Racking Structural Engineering Calculator

Input your structural guidelines below. Our math system calculates material deflection, stress bounds, and recommends optimal profiles.

Beam Span / Bay Width (mm) Clear entry span between upright frames. Common: 2700mm, 3300mm.

Frame Depth (mm)

Target Loading Capacity per Level (kg) Uniformly Distributed Load (UDL) per pair of beams.

Steel Grade Conformity

Click Compute to calculate stress factors and display structural drawing recommendations.

Standard Packing	Steel banding strapping + stretch plastic film wrapping + protector edges.

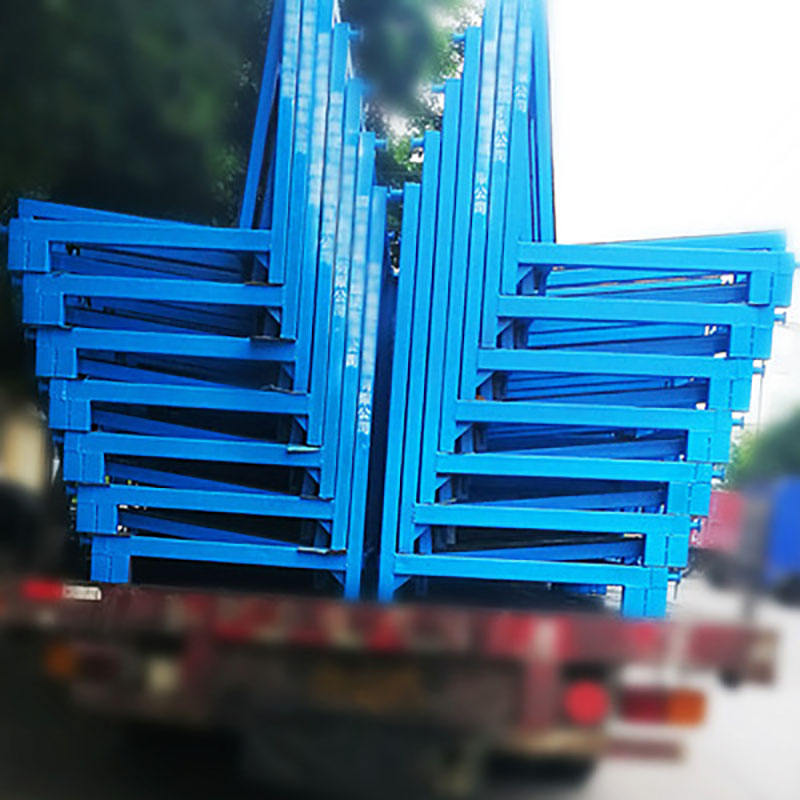

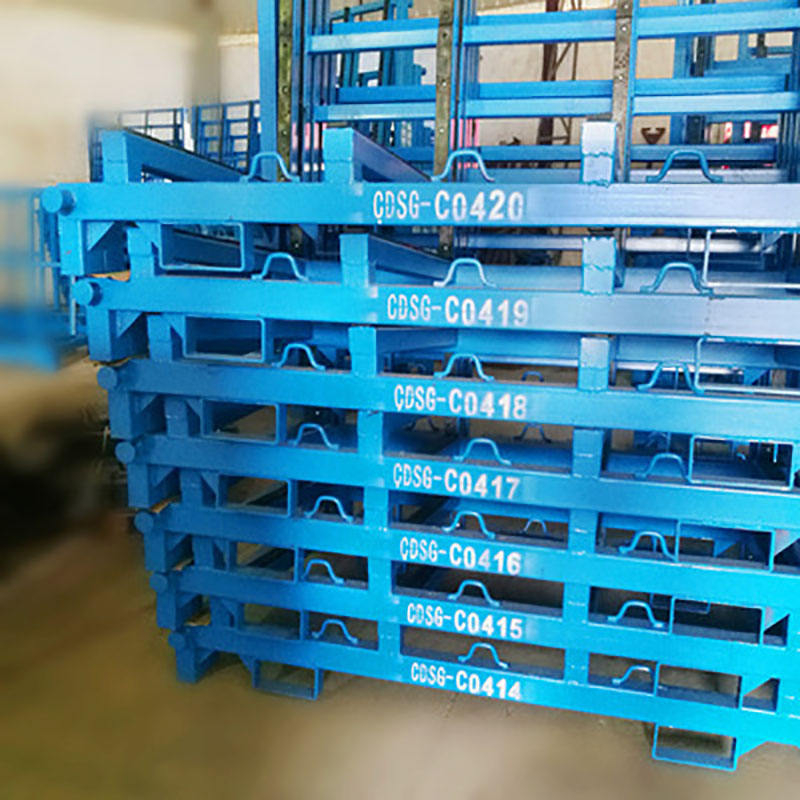

Loading Quantities	Optimized nested stacking designs to increase cargo quantities in 40ft HQ Containers.
Lead Time	15 to 25 calendar days for standard production orders (depends on volumes).
