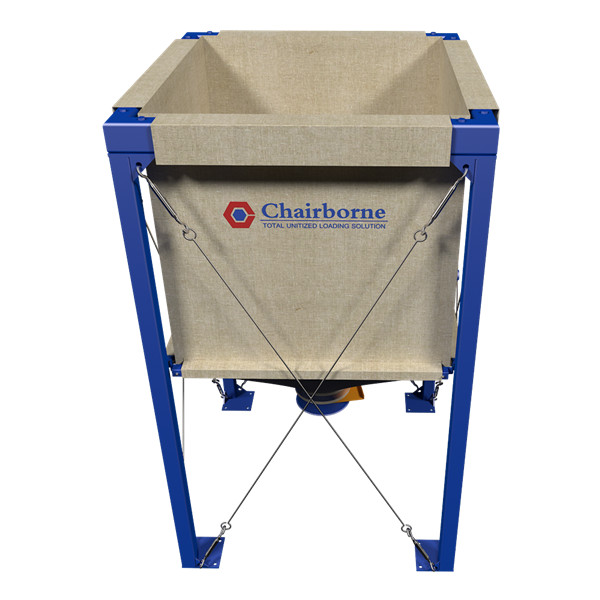

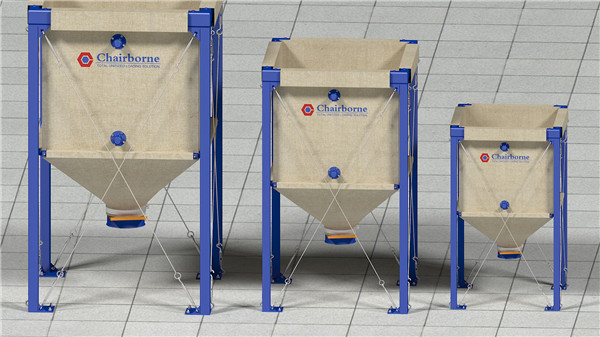

Flexible silo systems

The flexible silo system offers cost-effective storage and optimum space utilisation. Grain silos are the perfect solution for maintaining the freshness and nutritional value of sensitive natural products.

Get a Free Quote
100%
Steel Quality
Heavy
Duty Rating
Custom
Sizes Built
Flexible silo systems

Flexible silo systems

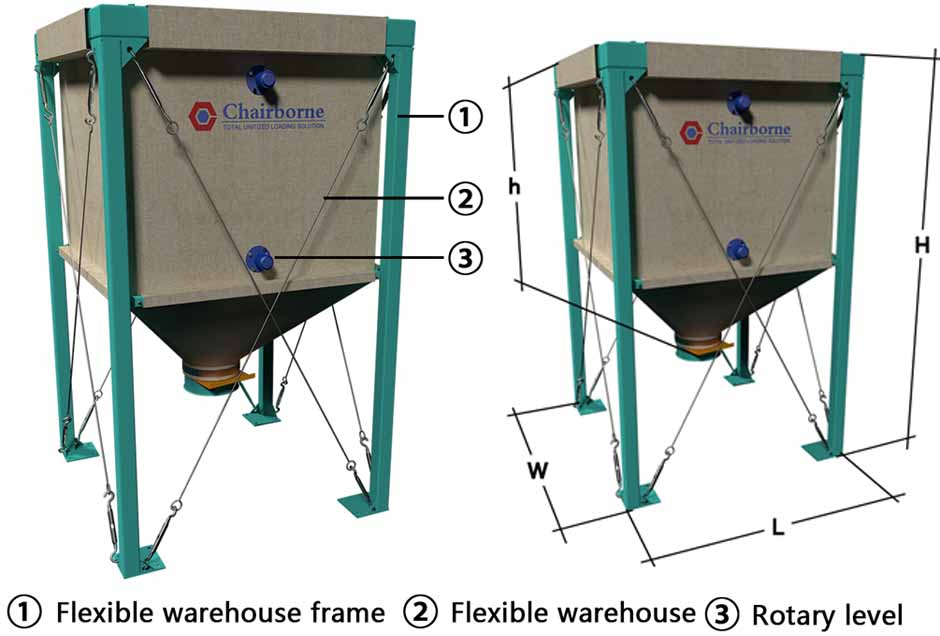

 Code  mm
 Dimensions
 Weight
 Material
 Volume
 ()
 Capacity
 (t)
 Surface
   L  W  H  D  h  KG  Frame  silo
 050003600  1830  1830  3140  400  2340  570  Q235  PP  5  3  BLUE  powder coating
 050003601  2570  2570  3140  400  2340  820  Q235  PP  10  6  BLUE powder coating
 050003602  2630  2630  4100  400  3700  1100  Q235  PP  15  9  BLUE powder coating

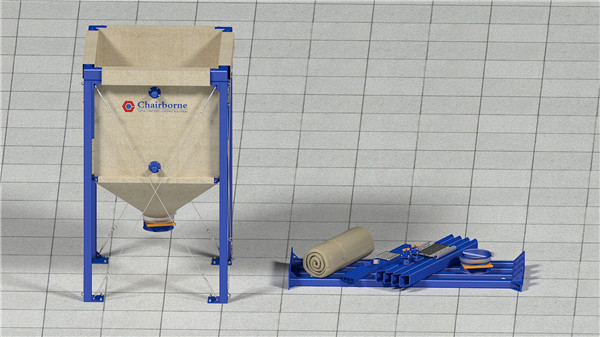

1.This product is a combination structure, which can be disassembled, which is convenient for storage and transportation;

Flexible silo systems

Flexible silo systems

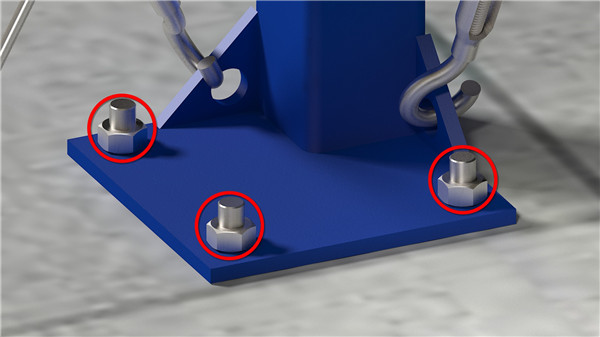

2.The bottom of the column of this product is welded with a steel plate with holes, fixed with anchor bolts, the bottom is more stable;

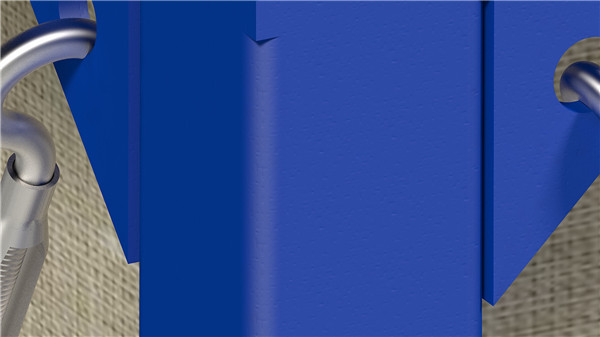

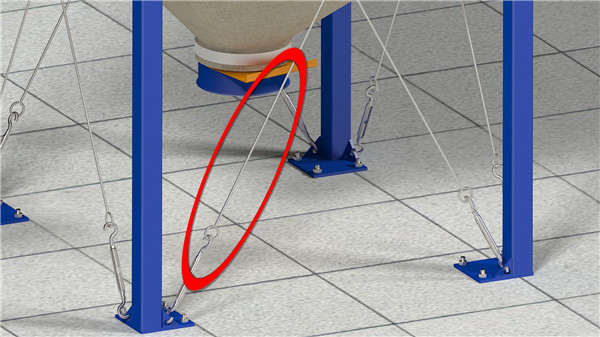

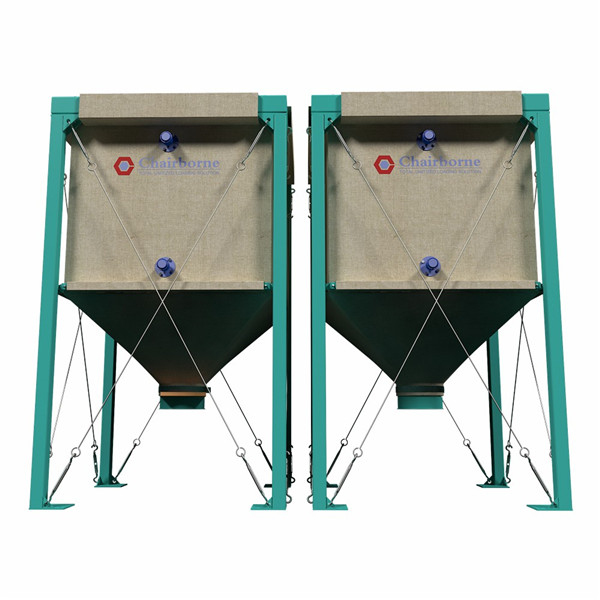

3.There are diagonal steel wires around the product, the overall stability is greatly improved;

Flexible silo systems

Flexible silo systems

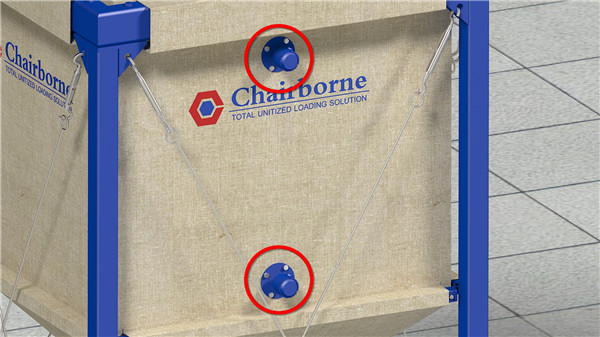

4.This product is equipped with a material level device, which can easily clarify the grain storage in the warehouse;

5.The surface treatment of this product adopts electrostatic spraying process, the coating is uniform and wear-resistant, and the anti-corrosion effect is good;

Flexible silo systems

Flexible silo systems

6.The product specifications can be customized as customer needs and site conditions;

7.This product is suitable for the storage of cereal crops;

Flexible silo systems

Flexible silo systems

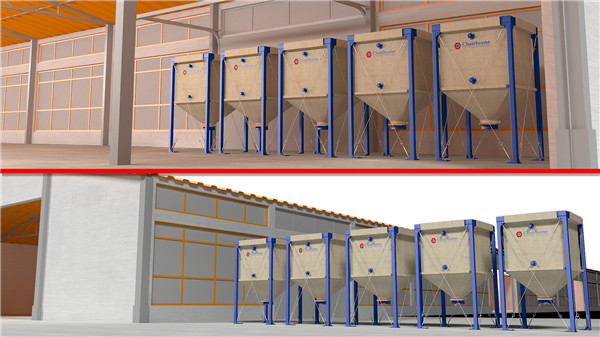

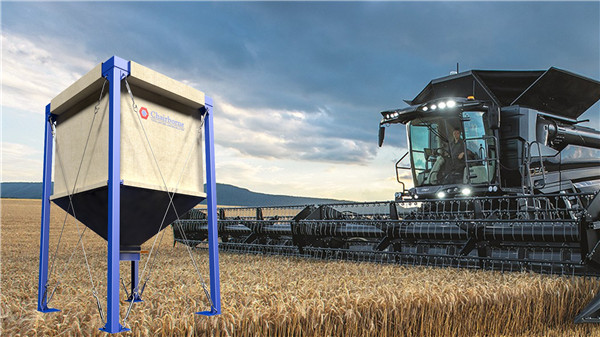

8.This product can be used indoors and outdoors;

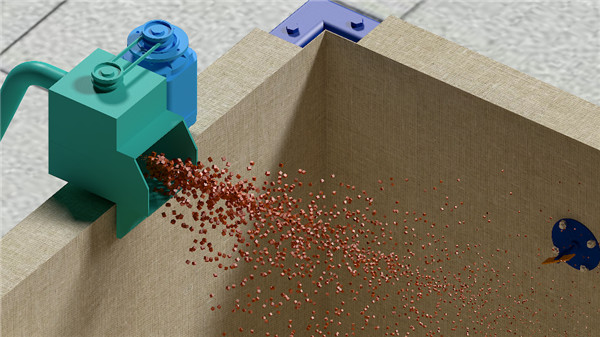

9.This product needs to cooperate with the grain suction machine;

Flexible silo systems
