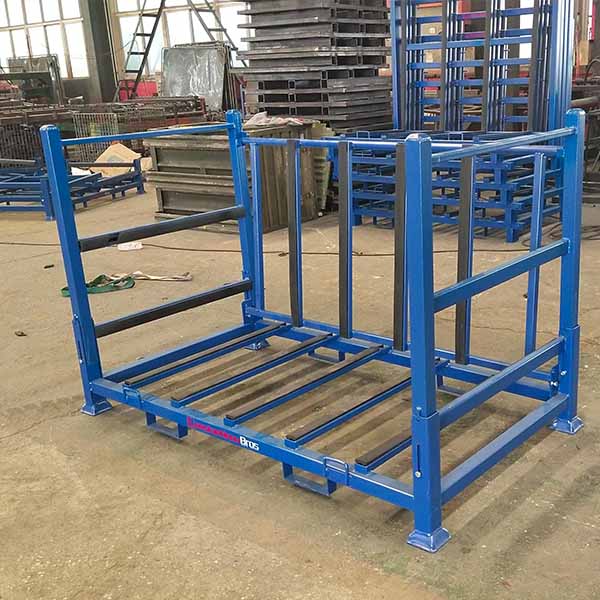

Collapsible Glass Transport Pallet
glass storage racks and support shall be full penetration in structure stable structure carrying capacity is bigger hold it with glass surface provided in shock absorption prevent the glass damaged during the transit.
100%
Steel Quality
Heavy
Duty Rating
Custom
Sizes Built
① Back ② Right Side ③ Left Side ④ Base
| Code | Dimensions（mm） | Weiht | Material | Capacity (t) | Surface | |||
| L | W | H | KG | Dynamic | Static | |||
| 050002041 | 1400 | 800 | 958 | 53 | Q235 | 1.5 | 4.5 | Powder coating |
| 050002042 | 1600 | 900 | 1058 | 58.5 | Q235 | 1.5 | 4.5 | Powder coating |
| 050002043 | 1800 | 1000 | 1158 | 64.6 | Q235 | 1.5 | 4.5 | Powder coating |
1.Suitable for medium and small size glass, Slate, wood and other fragile goods’ transportation and three-dimensional storage.
2.Can be customized according to user’s requirements.

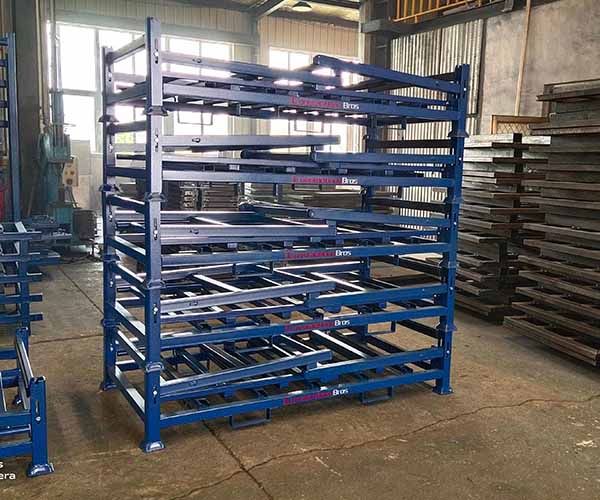

3.Stackable, to improve the utilization of storage space.
4.Can be folded when empty, which is convenient for transportation and storage;
5.This product can be used together with pallet rack.
6.Fixed forklift holes to prevent damage to goods caused by improper operation of forklift.
7.Rubber buffer strip is provided to avoid direct contact between the goods and the steel frame.
8.Surface treatment can be powder coating, cold galvanizing, etc.
