Stop scratching your high-value 316L stainless steel tubes during retrieval. Eliminate the “digging” process that stalls your laser cutters and saws. Our Telescopic Cantilever Rack systems reclaim 50% of your floor space while allowing your overhead crane to access 100% of your inventory without moving a single obstructing bundle.
The Hidden Cost of “Floor Stacking” in Sanitary Tube Manufacturing
For a steel service center or a manufacturer of hygienic components (like GHWA), the integrity of your raw material is your reputation. When you are dealing with high-purity stainless steel tubes and polished bars intended for the dairy, pharma, or semiconductor industries, surface finish (Ra value) is everything.
The traditional method of floor stacking or using static cantilever racks forces your operators into a dangerous and inefficient cycle. To get to the specific heat number or diameter needed for a rush order, they often have to use a forklift to shuffle three or four top bundles. In the industry, we call this “secondary handling.” Every time a bundle is moved, you risk scratches, dents, and contamination.
Furthermore, static racks require wide aisles—often 12 to 15 feet—to allow a heavy-duty forklift to maneuver long loads. In a production facility where square footage translates directly to manufacturing capacity, these empty aisles are essentially “dead money.”
The Logic: How Zero Aisle Space Racking Works
The concept behind Zero aisle space cantilever racking is simple yet transformative. Instead of a forklift driving into the rack structure, the rack structure comes out to you.
These systems utilize a crank-out or electric roll-out mechanism. Each level acts as an independent drawer that can be extended 100% out of the rack column. Because the material presents itself openly, you no longer need wide turning radiuses for forklifts. You can place racks closer together, or right next to your saws and CNC machines, effectively condensing your storage footprint by up to 50%.

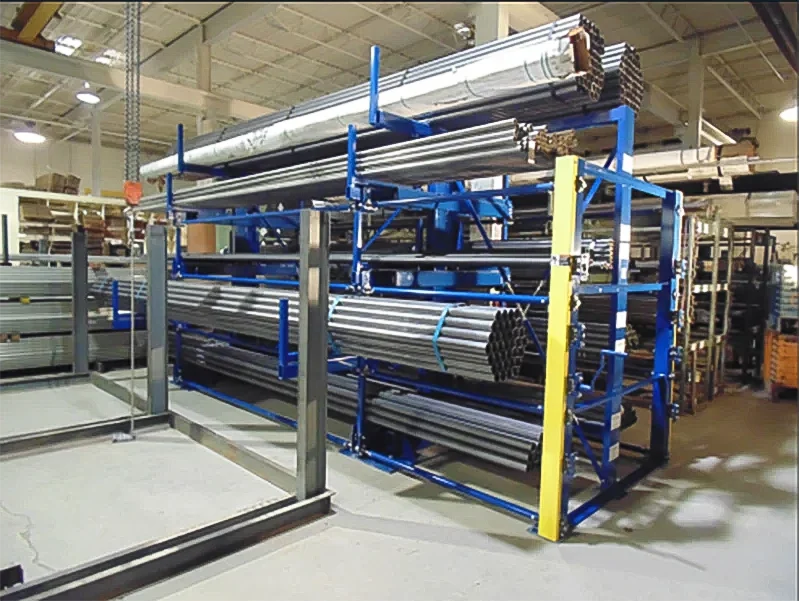

Figure 1: Maximizing vertical density while minimizing floor footprint.
Unlocking Overhead Crane Accessibility
The most significant operational shift for heavy tube and pipe handlers is the switch from forklift to crane. Forklifts are notorious for blind spots and the “spearing” risk when handling long bundles. By using overhead crane accessible racking, you eliminate these risks.
Once the drawer is cranked out, your shop’s bridge crane or vacuum lifter can lower directly onto the load. This allows for:
- Zero Damage: No forks scraping against the polished steel surfaces.
- Precision: Gentle placement of bundles onto saw feed tables.
- Speed: A single operator can retrieve a 3-ton bundle of 6-meter tubes in under 3 minutes.
Figure 2: Heavy-duty electric drawers extended for crane loading.
Technical Specifications for Heavy Metal Applications
Our racks are engineered specifically for the safe storage of heavy pipes and tubes. Unlike lightweight shelving, these are structural steel beasts designed to hold massive loads without deflection.
| Feature | Specification | Benefit for Steel Centers |
|---|---|---|
| Load Capacity | Up to 6,600 Lbs (3,000 kg) per arm/drawer | Handles dense bundles of solid stainless bar stock easily. |
| Extension | 100% Full Extension | Complete access to the rear of the bundle; no dead stock. |
| Length | Customizable (20ft / 6m standard) | Fits standard mill-length tubing perfectly. |
| Operation | Manual Crank or Electric Motor | Ergonomic operation regardless of load weight. |
Figure 3: High-ratio gearing allows a single operator to move tons with one hand.
Installation: Built for the Factory Floor
Implementing a new storage system shouldn’t shut down your production line for weeks. Our modular design allows for rapid deployment. The units arrive largely pre-assembled. The critical step is anchoring the heavy-duty H-beam bases to your concrete floor to handle the significant moment loads when drawers are fully extended.
Figure 4: Secure floor anchoring is vital for stability during extension.
Summary of Value for Stainless Specialists
By switching to a roll-out cantilever system, you are not just buying a rack; you are upgrading your workflow. You move from a “hunt and peck” retrieval method to a streamlined, FIFO (First-In-First-Out) process that protects your expensive inventory and frees up floor space for more revenue-generating machinery.
Frequently Asked Questions
Q1: Can we store delicate polished stainless steel tubes without scratching them?
Yes. Unlike sliding racks where metal rubs against metal, our arms lift and roll out. Furthermore, we can outfit the cantilever arms with UHMW (plastic) liners or rubber strips to ensure your high-Ra finish tubes never touch bare carbon steel.
Q2: We use 20-foot (6 meter) raw stock. Can this rack handle that length?
Absolutely. This is the standard application for our racks. We configure the number of columns (usually 3 to 4) to support the full length of the tube, preventing sagging or bowing that could permanently deform precision tubing.
Q3: How much aisle width do I actually save?
In a traditional setup, you need a 12-14ft aisle for a long-load forklift to turn 90 degrees. With our zero aisle space cantilever racking, you only need enough space for a person to walk (approx. 3-4ft) or for the drawer to extend. If you use an overhead crane, the “aisle” is effectively zero.
Q4: Do I need a power supply for these racks?
Only if you choose the electric model. The manual crank out cantilever rack uses a mechanical gear reduction system, allowing an operator to move 6,000+ lbs with very little physical effort, requiring no electricity.
Q5: Can this system handle heavy solid bar stock, not just hollow tubes?
Yes. The structural steel construction is rated for high-density loads. We specifically design the arm capacity to match the weight of solid stainless steel or tool steel bar bundles.
Need a Custom Storage Solution?
Speak directly with our technical engineers. We offer free structural designs, heavy-duty catalog evaluations, and quick B2B price quotations.
