Scratch-proof storage racks for powder coated panels

The Hidden Cost of “Good Enough” Material Handling

For a factory manager at a company like Rheem or a specialized solar fabricator, the math is brutal. You aren’t just moving raw materials; you are moving finished surfaces. Whether it is solar collector glass ready for frame assembly or pre-finished powder coated panels for HVAC casings, standard metal pallets are a liability.

Wood rots and releases moisture that stains coatings. Generic steel racks without proper isolation transfer vibration directly to the glass edge or panel face, causing “rub marks” that are impossible to buff out. The Collapsible Glass Storage Transport Rack (Agrack) was engineered specifically to solve the friction and impact problems inherent in moving rigid, fragile sheets.

Anatomy of Scratch-Proof Protection

Protection isn’t about wrapping the cargo in bubble wrap; it’s about the structural interface between the steel rack and your product. We utilize a proprietary rubber system that is fundamentally different from the glued-on foam strips often found on light-duty A-frames.

1. The 10mm Steel-Core Rubber Barrier

We don’t rely on adhesives. Our isolation strips are 10mm thick industrial rubber reinforced with an internal steel plate. This is bolted—not glued—directly to the Q235 carbon steel frame. This design prevents the “cut-through” effect where heavy solar glass stacks slice through soft padding, eventually touching bare metal. Your powder coated panels rest on a surface that offers grip without abrasion.

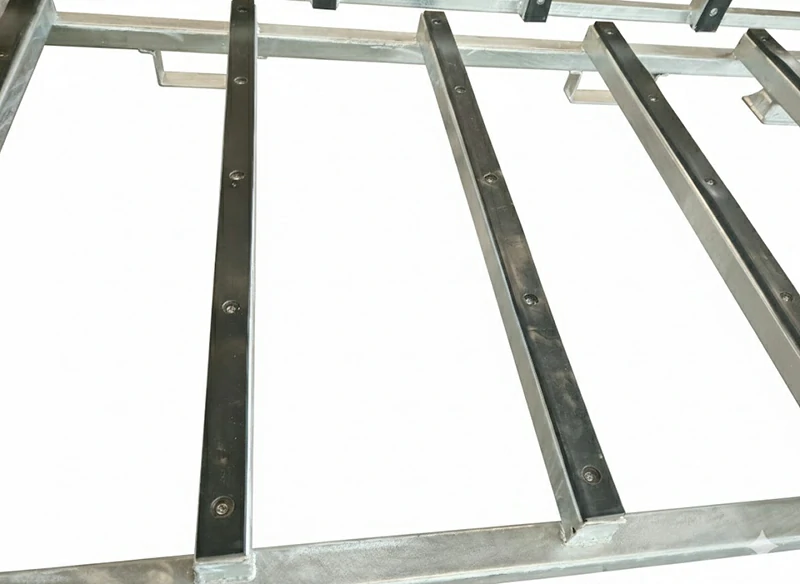

Detail: 10mm reinforced rubber secured with self-threading pins prevents cargo contact with the steel frame.

2. Elimination of Transit Vibration

Loose cargo creates friction. The Agrack system includes integrated solid steel securing hooks welded to the base. This allows your team to ratchet-strap the glass or panel stack into a single kinetic unit with the rack. When the forklift hits a bump or the truck brakes, the cargo doesn’t slide against the uprights. No sliding means no scratches.

Optimization for Closed-Loop Manufacturing Logistics

If you are bringing in solar glass from an upstream supplier, your biggest logistics inefficiency is the return trip. Shipping assembled, empty racks back to the glass plant means you are paying freight to ship air.

The folding glass shipping racks completely alter this cost structure.

• Full Load: The rack handles up to 3,300 lbs (1500kg) of panel materials.
• Empty Return: The uprights collapse via a slide-and-fold mechanism. You can stack these empty units 11 high.
• The Result: You can fit 112 empty racks into a single 40ft High Cube container. This reduces your return shipping volume by over 80%.

A folded stack of racks ready for cost-effective return shipping.

MRO and Assembly Line Efficiency

Inside the factory, floor space is premium real estate. Storing MRO supplies (maintenance glass, replacement panels) or WIP (work-in-progress) inventory on the floor blocks forklift lanes and creates safety hazards.

Our Window and Door Transport Stacking system turns your floor space into vertical storage. The heavy-duty “stacking feet” align perfectly with the uprights of the unit below, allowing you to stack fully loaded racks 3 high with absolute stability. This effectively triples your staging area capacity without expanding the building footprint.

Four-way forklift entry allows for flexible handling in tight assembly lines.

Frequently Asked Questions

1. Can these racks hold heavy stone slabs or just glass?
While designed for glass, the heavy-duty Q235 steel construction and 3,300 lb capacity make them ideal for stone slabs. For stone specifically, we recommend our upgraded “thickened” rubber option to withstand the rougher surface abrasion.

2. Does the powder coating on the rack chip easily?
We use an industrial electrostatic spraying process (powder coating) that bonds tightly to the steel. For outdoor storage or high-humidity environments (like stone cutting yards), we highly recommend upgrading to our Hot-Dip Galvanized finish for superior rust resistance.

3. Are the dimensions customizable for specific solar panel sizes?
Yes. While we have standard sizes (e.g., 60″ x 40″ internal), we frequently manufacture custom dimensions for solar manufacturers to ensure the glass fits snugly without excessive movement.

4. How do I stack them safely?
The racks feature a “cup foot” design on the top of the uprights. When stacking, the feet of the upper rack sit inside the uprights of the lower rack, creating a locked, self-aligning vertical column that prevents tipping.

5. What is the lead time for a container load (112 units)?
For standard specifications, production typically takes 15-20 days. Custom dimensions or hot-dip galvanizing may require additional time. We ship directly from our factory to your logistics hub.
