Stop burying your high-value stainless steel tubes under mountains of inventory.
For Steel Service Centers and Tube Manufacturers, “digging” for the right heat number with a forklift isn’t just slow—it destroys your surface finish and kills your laser cutter’s uptime. Switch to a 100% accessible, crane-operated system.
The End of “Honeycombing” in Sanitary Tube Storage
In the hygienic stainless steel industry—whether you are supplying dairy, pharmaceutical, or semiconductor sectors—the surface integrity of your product is non-negotiable. A scratch on a polished 316L tube isn’t just a defect; it’s scrap. Yet, many facilities still rely on floor stacking or static cantilever racks that force operators into a high-risk game of “pick-up sticks” with heavy-duty forklifts.
If your operation resembles the workflow of high-precision manufacturers like GHWA, you know that standard storage methods create two massive problems: Surface Damage during retrieval and Space Waste due to wide forklift aisles. The solution lies in changing the geometry of storage: moving from static shelves to a dynamic Push back rack for long pipes (technically known as Telescopic or Crank-out Cantilever).
Why Overhead Cranes Beat Forklifts for Tube Bundles
The defining feature of this system is the 100% extension capability. Unlike standard racks where a forklift must drive into the structure (risking collision) or push material aside, our telescopic arms roll out completely into the aisle.
This allows your facility to utilize overhead cranes (bridge cranes) for all loading and unloading.
- Zero Side-Impact: Cranes lift vertically using nylon slings. There is no metal-on-metal friction from forks sliding under bundles.
- Selective Access: Need a specific bundle of OD 2.0″ tubes buried at the bottom? Simply crank out that specific level. No need to move the top three layers first.
- Dense Storage: Because you don’t need a 15-foot turning radius for a heavy forklift, aisle widths can be reduced by up to 50%, doubling your storage density per square foot.

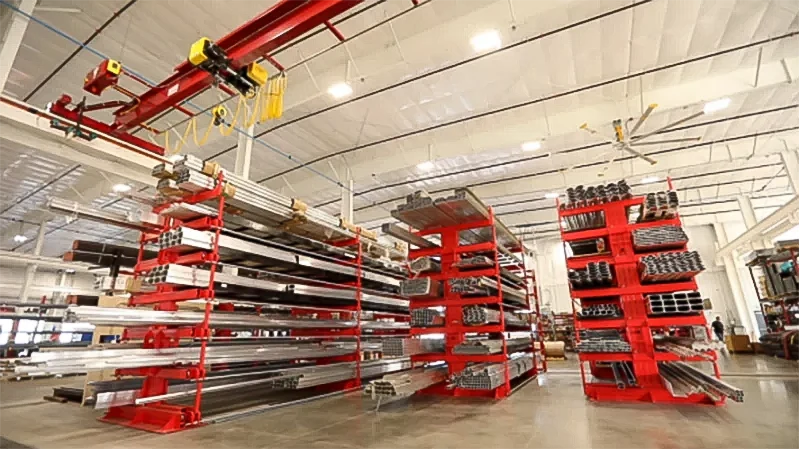

Electric telescopic racks allow for single-operator overhead crane access, essential for heavy stainless bundles.
Feeding the Beast: Optimizing Laser and Saw Uptime
In a high-mix, low-volume production environment (typical of OEM component manufacturing), your laser cutters and band saws are the heartbeat of the factory. If a machine is idle for 20 minutes while an operator hunts for the correct raw material, you are bleeding money.
By placing a Telescopic Cantilever Rack directly adjacent to your processing equipment, you create a “Point of Use” storage buffer.
- Retrieval Time: Reduced from 15-25 minutes (forklift digging) to 2-3 minutes (crank and hoist).
- Inventory Visibility: Each drawer is clearly visible. Operators can verify stock levels of specific grades (e.g., 304 vs. 316L) instantly without moving materials.
- Ergonomics: Whether using a manual crank (geared for easy movement) or an electric drive, a single operator can handle loads up to 5 tons per level safely.
Preserving Ra Roughness Standards
For industries governed by ASME BPE or 3-A Sanitary Standards, the surface roughness (Ra) of the tube is critical. Standard steel racks are enemies of polished stainless steel.
Our systems are engineered with this in mind. Arms can be outfitted with UHMW (Ultra-High Molecular Weight Polyethylene) liners or other non-marring materials. This ensures that your high-purity tubes never touch carbon steel, preventing both physical scratches and potential iron contamination (rust spots) that would fail QC inspections.
Dividers and protective linings ensure distinct batches of hygienic tubes remain separated and damage-free.
System Specifications for Heavy Tube Profiles
We configure these racks based on your specific bundle lengths (20ft/6m is standard) and weights.
| Feature | Specification Range |
|---|---|
| Drive Mechanism | Manual Crank (Geared) or Electric Motor |
| Arm Extension | 100% Full Extension (Clear access for cranes) |
| Load Capacity Per Level | 2,000 lbs – 11,000 lbs (1 – 5 Metric Tons) |
| Compatible Material Lengths | Standard 20ft (6m), up to 40ft (12m) custom |
| Structure Material | Structural H-Beam & High-Grade Carbon Steel |
| Finish | Industrial Powder Coating (indoor) or Galvanized (outdoor) |
Installation: Anchoring for Stability
Unlike lightweight shelving, these systems interact with dynamic forces. The base is constructed from massive H-beams to counteract the torque when a fully loaded drawer (weighing potentially 6,000 lbs) is extended.
Installation requires a reinforced concrete floor. Our teams use heavy-duty chemical or mechanical anchors to secure the unit, ensuring that even at full extension, the center of gravity remains within the safe zone. This is structural engineering, not just “shelving.”
Proper floor anchoring is critical for the stability of telescopic cantilever systems.
Frequently Asked Questions: Steel & Tube Storage
Q1: Can we store mixed bundles of different diameters (e.g., 1″ and 4″ tubes) on the same level?
A: Yes. Unlike fixed pigeon-hole racks, the open arm design allows for mixed bundling. We recommend using movable dividers (pins) on the arms to prevent round tubes from rolling and to keep different ODs separated for inventory accuracy.
Q2: Our facility handles hygienic stainless steel. How do we prevent carbon contamination from the rack itself?
A: We offer optional UHMW-PE liners that cover the steel arms and base. This provides a non-metallic contact surface, ensuring your stainless material remains passive and scratch-free, meeting sanitary audit requirements.
Q3: How much aisle space can I actually save compared to my current forklift layout?
A: Typically, you can reclaim 40-50% of your floor space. A standard 6-ton sideloader or forklift requires aisles of 12-15 feet to maneuver 20ft pipe. With our telescopic rack accessed by an overhead crane, the aisle only needs to be slightly wider than the depth of the drawer (approx 4-5 feet) for the operator to walk.
Q4: Do we need a specialized crane operator to use this system?
A: No specialized certification beyond standard overhead crane safety training is required. The rack operation itself is simple: crank the drawer out, hook the straps, lift, and crank back. It eliminates the complex maneuvering skills required for long-load forklifts.
Q5: What is the maximum deflection of the arms when fully extended?
A: Our structural engineering standards are rigorous. At full rated capacity (e.g., 6,600 lbs per level), the arm deflection is calculated to be minimal and well within safety standards (typically L/250 or better), ensuring bundles do not slide or roll.
