Plywood Padded A-Frames

You’ve just CNC cut a perfect, oversized sheet of Low-E glass for a curtain wall project. It’s worth over $1,000. But the journey to the tempering furnace is a minefield. A tiny steel burr on a standard rack, a slight jolt during transport—that’s all it takes to create a scratch that renders the entire unit worthless. The cost of that single mistake is higher than the cost of the equipment designed to prevent it. Talk With An Expert

Why Bare Steel is a Financial Risk for Your Glass Fabrication Shop

In the world of a professional Glass Fabricator, the enemy isn’t always a catastrophic drop. More often, it’s the silent, profit-killing damage that occurs during in-house handling. Standard steel racks, while strong, present a constant threat. The hard, unyielding surface offers zero forgiveness. Every time a heavy sheet of laminated glass or a delicate piece of coated glass is loaded, you risk:

• Micro-Scratches and Edge Chips: A seemingly insignificant scratch on a Low-E coating can compromise the entire Insulated Glass Unit’s (IGU) performance, leading to rejection. A small chip along the edge of a sheet destined for the Glass Tempering Furnace can propagate into a full-blown fracture under thermal stress.
• Stress Concentration: Placing a multi-ton load of glass onto a few points of hard steel contact creates immense pressure points. This localized stress is a leading cause of unexpected cracking, especially when moving Work-in-Progress (WIP) across the shop floor.
• Vibration Damage: The journey from the cutting table to the IGU assembly line isn’t always smooth. Vibrations transmitted through a rigid steel frame can be enough to cause delamination in laminated glass sheets or damage sensitive coatings.

Each of these failures means more than just lost material; it means wasted machine time, delayed orders, and a direct hit to your bottom line.

The Engineered Solution: How a Plywood-Rubber Composite Surface Works

A Plywood Padded A-Frame Glass steel rack isn’t just a standard rack with wood bolted on. It’s an engineered system designed to create a buffer between your high-value product and the unyielding physics of heavy material handling. The core of this system is a composite structure combining industrial-grade plywood with high-density rubber strips.

Transform Your Workflow: From Risky Handling to a Secure “Mobile WIP Warehouse”

Integrating a properly designed heavy duty glass rack with plywood padding changes the dynamic on your factory floor. It ceases to be just storage and becomes a critical part of a lean, efficient, and safe workflow.

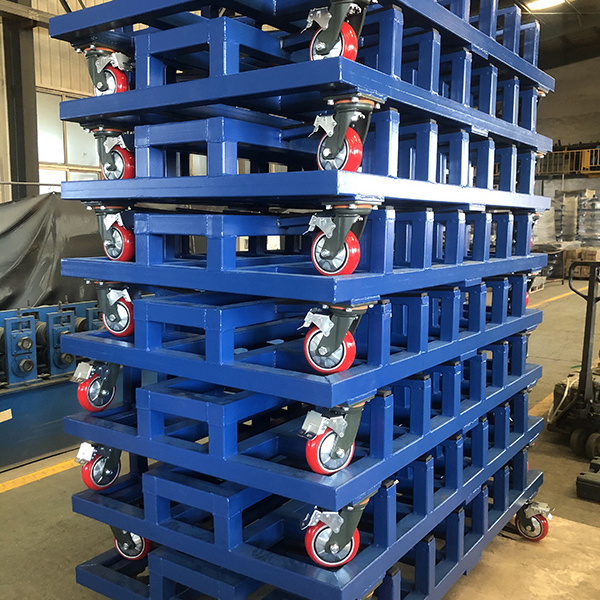

• Secure WIP Transfer: Load freshly cut glass at the CNC Glass Cutting Table and move it confidently to the edging machine or the Insulated Glass Production Line Equipment. The heavy-duty polyurethane casters ensure smooth rolling, while the padded surfaces guarantee the glass arrives in the same perfect condition it left in.
• Reliable Transport: When it’s time for shipping, these racks, secured with integrated ratchet straps and steel limit rods, ensure your finished products are protected. You can load them onto a delivery truck knowing that the risk of transit damage has been fundamentally minimized, protecting your brand’s reputation for quality.
• Unshakable Foundation: All this protection rests on a foundation of industrial-grade Q235 steel, constructed with a full seam welding process. We reject the weak spot-welding used in inferior racks. This commitment to structural integrity means the frame will not fail under load, protecting not just your glass, but more importantly, your team.

Request a Quote for Your Custom Padded Rack

Frequently Asked Questions

1. How does the plywood padding specifically protect Low-E glass coatings?

The soft, non-abrasive surface of the plywood and rubber composite prevents the hard, microscopic particles found on bare steel from scratching the delicate metallic oxide layer of Low-E coatings. It distributes pressure evenly, preventing the coating from being crushed or marked under the glass’s own weight.

2. Can these plywood padded A-frames handle the weight of thick, multi-layered laminated safety glass?

Absolutely. The plywood’s role is protection, while the structural strength comes from the heavy-gauge, fully-welded Q235 steel frame. Our racks are engineered with a substantial weight capacity (e.g., 4,400 lbs or more) specifically for handling heavy materials like thick laminated glass, stone slabs, and large IGUs.

3. Is the plywood and rubber padding replaceable after years of use?

Yes. The protective surfaces are designed as replaceable wear items. After years of heavy service, the plywood and rubber components can be unbolted and replaced, allowing you to extend the life of the steel frame indefinitely and maintain optimal protection for your products.

4. How do these racks improve safety around high-traffic areas like a Glass Tempering Furnace?

By providing a stable, mobile base, these racks reduce the need for constant overhead crane or forklift intervention in congested areas. Their wide, stable footprint and reliable securing systems prevent the catastrophic tipping failures associated with poorly designed racks, creating a safer work environment for your team.

5. Can the design be customized for specific sheet sizes or handling needs?

Yes. We frequently engineer custom solutions. Whether you need a specific height to fit under a gantry, a unique width for oversized architectural glass, or specialized casters for challenging floor conditions, we can tailor the Plywood Padded Glass Transport Rack to integrate perfectly into your unique production workflow.
