moulding storage racks

Your workshop floor is cluttered with expensive injection and blow molds. Machine downtime during changeovers is killing your output. Valuable floor space that could house another molding machine is wasted on chaotic, ground-level storage. There is a structured, safer, and far more efficient way to manage these critical assets. Talk With An Expert

The Real Cost of Disorganized Mould Storage in Plastics Manufacturing

In the high-volume world of plastic packaging—from PET bottles to thermoformed containers—the efficiency of your injection molding or blow molding machines dictates profitability. However, the focus on machine uptime often overlooks a critical bottleneck: the disorganized, inefficient, and hazardous state of mold storage. When multi-ton, high-value injection molds or blow molds are left on wooden pallets or stacked haphazardly on the floor, the hidden costs begin to accumulate rapidly.

This “traditional” method creates a cascade of operational problems:

• Extended Machine Downtime: Your die setter spends 20-30 minutes just locating the correct mold, then more time clearing a path for the forklift. Every minute spent searching is a minute your molding machine isn’t producing parts.
• Asset Damage: Molds worth tens of thousands of dollars are exposed to moisture from the factory floor, leading to rust on precision surfaces. Worse, a minor collision with a forklift can cause catastrophic damage, resulting in costly repairs and production halts.
• Wasted Production Space: Forklift-dependent storage requires massive 12-15 foot aisles. This is valuable real estate that could be used for another production line, directly limiting your plant’s growth potential.
• Operator Safety Risks: Manually prying and positioning a heavy, awkward mold is a primary cause of back and strain injuries for your most experienced technicians.

Traditional storage: Molds on pallets create safety hazards and waste valuable floor space.

Engineered for Efficiency: The Mechanics of a Professional Moulding Storage Rack

A purpose-built heavy duty mold racking system is not just a piece of shelving; it’s an integrated part of an efficient production workflow. The design directly addresses the core challenges of a plastics manufacturing environment through superior engineering.

Structural Integrity Born from Heavy-Duty Steel

The foundation of our system is its robust frame, constructed from Q235B structural steel, often utilizing 10# channel steel for the main pillars. This isn’t just about strength; it’s about stability under dynamic loads. This high-rigidity structure ensures zero frame deformation, even when a single drawer is loaded with a 3,000kg (6,600 Lbs) mold. This allows you to safely utilize vertical space, transforming a sprawling mold graveyard into a condensed, organized, high-density storage hub and freeing up to 80% of your floor space.

The 10# channel steel uprights and cross-bracing provide unwavering stability for multi-ton loads.

100% Full-Extension Drawers for Unobstructed Access

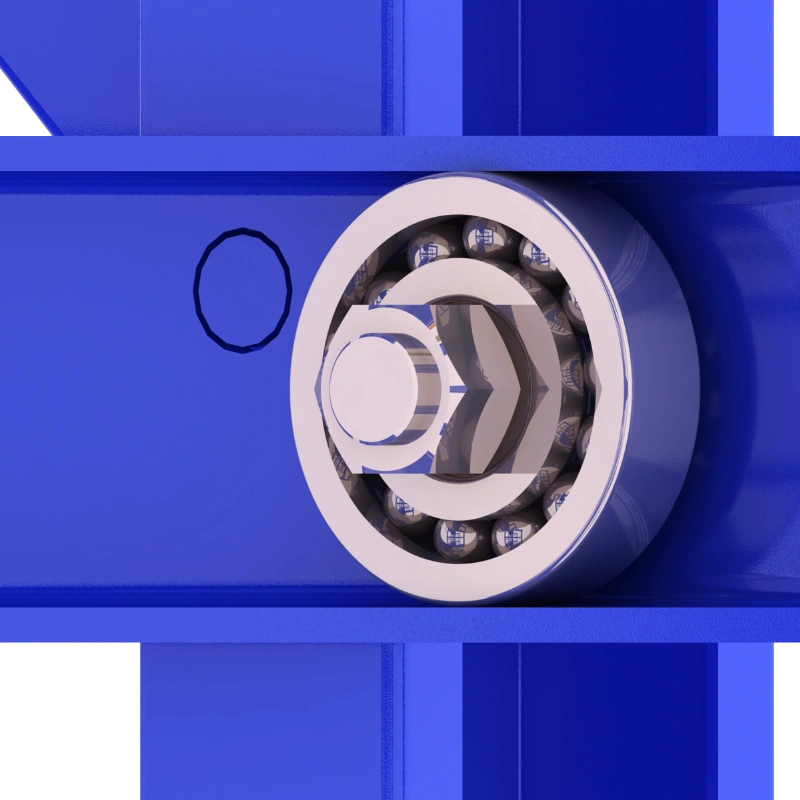

The core innovation is the roll-out drawer system. Each drawer, supported by high-precision Harbin bearings, extends 100% out of the rack. This engineering feature is critical. It allows your overhead crane or chain hoist to achieve a direct, vertical lift from the mold’s center of gravity. This completely eliminates the risk of bumping the mold against the rack frame during extraction—a common cause of damage to cooling lines and polished surfaces. The result is a seamless, single-operator process that is both fast and safe.

A fully extended drawer presents the mold for a perfect vertical lift, eliminating collision risks.

Multi-Point Safety Mechanisms for OSHA Compliance

Safety is non-negotiable. Each drawer is equipped with a mechanical self-locking safety pin. This physical lock prevents any possibility of the drawer sliding out accidentally. When the drawer is fully extended, another locking mechanism engages, preventing it from tipping. These redundant safety features are not optional extras; they are fundamental to creating a secure work environment that protects your team and complies with stringent industrial safety standards.

Close-up of the robust, red-tipped safety pin that mechanically locks each drawer in place.

The Transformation: From Chaotic Workshop to a Lean Manufacturing Powerhouse

Implementing a dedicated drawer type mold rack is a strategic move that pays immediate dividends. The “After” scenario is a stark contrast to the previous state of disorganization.

By moving from floor storage to a vertical die rack system, you achieve measurable improvements:

• SMED Time Reduced by 80%: What once took 30-45 minutes now takes less than 5. The mold is instantly accessible, and the crane can lift it immediately. This massive reduction in changeover time directly translates to increased production capacity.
• Floor Space Reclaimed: With molds stored vertically and aisle widths reduced from 4 meters to just 1.2-1.5 meters for crane access, you recover hundreds of square feet of valuable production space.
• Enhanced Mold Lifespan: Molds are stored in a clean, dry, and secure environment. Our 7-step surface treatment process, including phosphating and powder coating, creates a corrosion-resistant barrier that protects your assets for over 15 years, even in humid conditions.
• Improved 5S and Workshop Morale: A clean, organized, and safe workshop is a productive one. Technicians can work more efficiently and safely, boosting morale and reinforcing a culture of professionalism and order.

The result: A clean, high-density, and highly efficient mold storage area supporting lean manufacturing principles.

Frequently Asked Questions

1. What is the typical load capacity per drawer for these moulding storage racks?

Our standard heavy-duty mould storage racks are engineered with a single-drawer load capacity ranging from 1,000 kg to 3,000 kg (approx. 2,200 to 6,600 Lbs). The capacity is determined by the steel thickness and structural design. We always conduct a detailed analysis of your heaviest molds to ensure the provided solution exceeds your safety requirements.

2. Our factory uses a mix of large blow molds and smaller injection molds. Can the rack be customized?

Absolutely. The system is modular. The height between layers is fully adjustable, typically in 2-inch increments. This allows you to create customized compartments to efficiently store molds of various sizes in the same rack unit, maximizing storage density and preventing wasted space.

3. How does this system integrate with our existing factory overhead crane?

The system is designed to work seamlessly with standard factory cranes. The 100% full-open drawer design ensures that once a drawer is extended, the crane hook has unimpeded vertical access to the mold. For areas without existing crane coverage, we can also integrate a dedicated hoist and rail system directly onto the top of the rack structure.

4. What kind of surface treatment is used to prevent rust in our humid workshop?

We employ a rigorous 7-step industrial-grade surface treatment process. This includes shot blasting to create an ideal surface profile, followed by acid washing, phosphating, and finally an electrostatic powder coating with a thickness of 60-80μm. This creates a durable, corrosion-resistant finish that is far superior to standard paint and designed to withstand demanding industrial environments.

5. How specifically does this rack help us achieve faster SMED (Single-Minute Exchange of Die)?

The rack is a cornerstone of SMED implementation. It drastically cuts down on the “search and transport” portion of the die change process. By providing a designated, instantly accessible location for every mold right next to the production line, it eliminates wasted time. When combined with an overhead crane, the entire process of retrieving the old mold and loading the new one can be reduced from over 30 minutes to under 5, significantly increasing machine uptime and overall equipment effectiveness (OEE).
