Are production bottlenecks between your CNC cutting table and your IGU assembly line killing your throughput? Bottlenecks caused by operators manually searching for and pairing glass lites not only slow you down, but every extra touchpoint increases the risk of scratches, chips, and costly rejects—especially with high-value Low-E or laminated glass. It’s time to bridge the gap in your workflow with a dedicated sorting and transfer solution.
From Chaotic WIP to Streamlined Workflow: The Role of Mobile Glass Sorting Buggies
In any high-volume glass fabrication plant, the space between major processing stations—from the CNC glass cutting table to the tempering furnace or the IGU line—is where efficiency is won or lost. Relying on oversized A-frames or stationary L-racks for in-process (WIP) handling creates chaos. Operators waste precious time hunting for matching lites for an Insulated Glass Unit (IGU), and the constant maneuvering of heavy glass increases the risk of edge chipping and surface damage. A harp rack glass trolley, or sorting buggy, is not just another rack; it’s a purpose-built mobile sorting station designed to solve these specific workflow challenges.
The Challenge: Inefficient Sorting and Unsafe In-Plant Transfer
Consider a typical scenario: an order for 40 IGUs is cut on the CNC table. The individual lites are then moved to a staging area. Using traditional racks, these lites are difficult to access individually. An operator needs to find the correct two pieces, often having to remove several others to get to the one they need. This process is slow and introduces multiple opportunities for damage. When moving these lites to the washing machine, manual carrying or using improper carts poses a significant safety hazard and risks vibration-induced micro-cracks that can lead to failure during tempering.
The Solution: High-Density Sorting and Secure Mobility in One Platform
A mobile harp rack for glass is engineered to act as a dynamic link in your production chain. By integrating high-density, individually accessible slots with a rugged, mobile platform, it transforms your material handling process from a liability into an asset.
Protecting Every Lite: Structure Engineered for Glass
Glass is an unforgiving material. Scratches on coated surfaces or chips along the edge mean immediate rejection. Our buggies are designed with features that provide total protection during storage and transit.

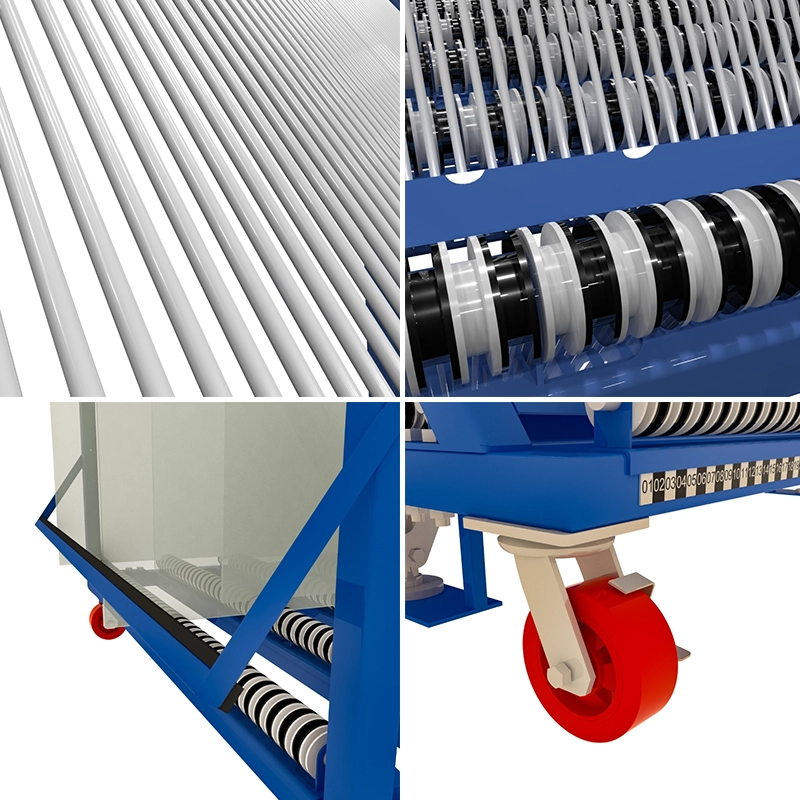

- PVC-Coated Dividers: Each steel divider rod is encased in a soft but durable PVC casing. This creates a non-abrasive contact surface that prevents scratches, especially on sensitive Low-E and other coated glass, preserving the value of your materials.
- Nylon Roller Base: The base of each slot features smooth nylon rollers. This allows operators to slide heavy glass lites, up to 1500 kg (3300 lbs) per rack, into place with minimal effort, eliminating the jarring impacts that cause edge chipping.
Unmatched Safety and Stability During In-Plant Transfer
Moving a fully loaded rack of glass across a busy factory floor is a high-stakes operation. A sudden stop or an uneven surface can cause the entire load to shift, creating a massive safety risk and potentially catastrophic material loss. Our sorting buggies feature a critical safety innovation to eliminate this risk entirely.
- Foot-Actuated Lifting & Locking Mechanism: Before moving, the operator simply steps on a pedal. This mechanism slightly lifts the entire load, locking it securely against a fixed rubber buffer. The glass is completely immobilized, preventing any movement or rattling during transit. This ensures both operator safety and the integrity of the glass from one station to the next.
The Result: Increased Throughput and Reduced Costs
By implementing mobile harp racks for sorting glass units, glass fabricators see immediate, measurable improvements. The process of pairing lites for IGUs is accelerated, as each piece is clearly visible and instantly accessible in its numbered slot. The smooth, secure transfer between processes reduces material damage, directly lowering your scrap rate. This streamlined workflow alleviates bottlenecks, increases the overall throughput of your facility, and empowers you to handle complex, custom orders with greater confidence and profitability.
Designed for Global Logistics and Easy Assembly
We understand that freight costs for heavy industrial equipment can be a major concern. That’s why our sorting buggies are engineered with a knock-down, bolted assembly structure. The entire unit is shipped flat-packed, dramatically reducing shipping volume and costs, especially for international container loading. On-site assembly is straightforward, allowing you to get your new equipment onto the factory floor and into production quickly.
Frequently Asked Questions
1. How does this buggy handle very thin glass (e.g., 1/4″ or 6mm) for IGU production without it rattling?
Our harp racks can be customized with specific slot widths. For thin glass, we can engineer the base slots and divider spacing to be narrower, providing a snug fit that minimizes movement and prevents rattling or potential micro-cracking during in-plant transfer.
2. What is the load capacity, and can it be moved by a single operator when fully loaded?
The standard dynamic load capacity is 1500 kg (approx. 3300 lbs). Thanks to the heavy-duty polyurethane casters (two fixed, two swivel with brakes) and ergonomic handles, a single operator can typically maneuver the buggy on a smooth, level factory floor. For maximum safety, forklift access is also built into the base.
3. We handle a lot of custom, non-standard sized architectural glass. Can this rack support tall, narrow lites securely?
Absolutely. This is a key problem we solve. We offer a full base harp rack with a continuous slotted steel plate. Unlike racks with rollers, this design provides complete support along the entire bottom edge of the glass, making it exceptionally stable for storing and moving unconventional, tall-and-narrow lites without the risk of tipping.
4. Our floor space between the CNC table and the tempering furnace is tight. What are the dimensions, and how maneuverable is it?
Our standard models like the HR-40 have a footprint of approximately 1500mm x 1000mm (59″ x 39″). The combination of fixed and swivel casters provides excellent maneuverability in tight spaces. We also offer custom dimensions to fit your specific layout and workflow requirements.
5. How are these shipped? We’re concerned about high freight costs for bulky equipment.
Our racks are designed for cost-effective shipping. They feature a knock-down (bolted assembly) construction and are shipped flat-packed. This significantly reduces the shipping volume compared to a fully welded unit, which in turn lowers freight costs, particularly for international orders requiring container loading.
