In the HVAC and water heater manufacturing sector, the integrity of your finish is everything. Whether you are handling large solar collector glass panels or pre-painted metal casings for commercial water heaters, a single scratch during transport equals costly rework. Stop relying on improvised wood pallets. Switch to a solution designed for vertical, high-protection MRO storage and assembly line logistics.
Why Vertical Storage is Critical for Water Heater Casings and Solar Panels
In modern appliance manufacturing, particularly for heavy-duty commercial water heaters and solar thermal units, “flat” is the enemy of efficiency. Storing large sheet materials—be it **solar collector glass** or powder-coated steel casings—horizontally takes up valuable floor space and invites surface damage from debris or stacking pressure.
As a material handling specialist for the HVAC industry, I see the shift towards the glass storage transport rack not just for glass, but for any high-value flat panel. By orienting your casings vertically (at a slight tilt angle, typically 90 degrees or slightly reclined), you reduce the footprint of your Work-In-Progress (WIP) inventory significantly.
High-density vertical storage allows for safe 3-tier stacking, tripling your warehouse capacity.
Protecting the Powder Coat: The Rubber Interface
The most expensive bottleneck in the water heater assembly line is the paint shop rework loop. When transporting enameling steel sheets or finished painted casings, metal-on-metal contact is disastrous.

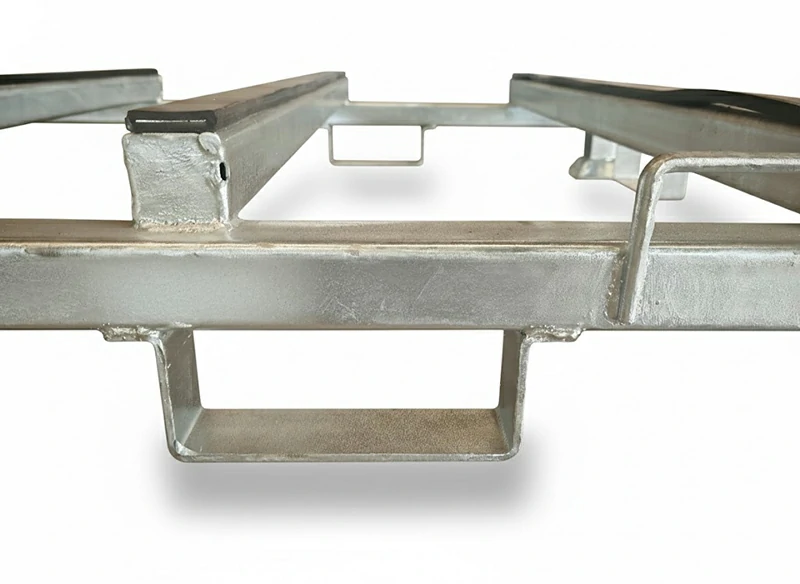

Our **Collapsible Glass Transport Pallet** design addresses this specific MRO pain point. The structural steel, usually **industrial grade steel** (Q235), never touches your product. instead, we utilize a high-durability, 10mm thick rubber padding system. Unlike wood which can hold moisture and grit, or generic foam which tears, this rubber is bolted (not glued) to the base and uprights, containing an internal steel plate for longevity. This ensures that your solar glass or pristine white casings arrive at the assembly station blemish-free.
Forklift Integration for MRO and Assembly Lines
Facility management in large-scale manufacturing plants (like those of Rheem or AO Smith) requires seamless logistics. You cannot have production halted because a rack is difficult to move.
These racks are engineered as a **forkliftable solution**. The base features reinforced forklift channels compatible with standard material handling equipment. Whether you are moving raw **solar collector glass** from the receiving dock to the framing station, or moving finished casing sets to the final assembly line, the stability provided by the engineered base ensures safety. The load is secured via integrated lashing rings, preventing the “sway” often seen with A-frame carts during cornering.
Solving the “Empty Rack” Problem with Collapsibility
In a closed-loop supply chain—for example, sending parts from a stamping press facility to the main assembly plant—transporting air is a waste of budget. Traditional welded A-frames take up the same space empty as they do full.
The **folding glass shipping racks** mechanism is the game-changer for plant logistics. Once the casings or glass panels are offloaded at the assembly line, the operator can fold the rack in seconds.
1. Remove the safety pin.
2. Fold the uprights down.
3. Stack the empty racks.
You can stack up to 7 folded racks in a single column, and fit roughly 112 units in a standard truck or container. This creates massive efficiency for your **factory MRO storage** zones and drastically reduces return freight costs.
Technical Specifications for Industrial Applications
| Feature | Specification | Benefit for HVAC/Appliance Mfg |
|---|---|---|
| Material | Q235 Industrial Grade Steel | Handles heavy loads of solar glass or steel sheets without warping. |
| Surface Treatment | Electrostatic Powder Coating or Hot-dip Galvanized | Resists corrosion in humid factory environments or outdoor storage yards. |
| Load Capacity | Up to 2000kg (4400 lbs) | Capable of holding dense packs of sheet metal or thick tempered glass. |
| Protection | 10mm Rubber Profile with Steel Insert | Prevents chipping of enamel or scratches on Low-E glass coatings. |
Frequently Asked Questions (FAQ)
Q1: Can these racks handle the weight of steel water heater casings?
Yes. The rack is designed for heavy industrial loads (up to 2000kg/4400lbs). It is built with high-strength Q235 steel square tubing, making it significantly stronger than standard warehouse shelving or wood pallets.
Q2: We use solar collector glass for our hybrid water heaters. Is the rubber padding safe for this?
Absolutely. The rubber strips are specifically engineered for the glass industry. They provide a firm grip to prevent sliding while being soft enough to prevent scratches or edge damage to tempered or annealed solar glass.
Q3: How much space do the racks save when not in use?
The folding glass shipping racks reduce their volume by approximately 80% when collapsed. You can stack empty racks up to 11 units high (depending on specific model), freeing up massive amounts of MRO floor space.
Q4: Can these racks be moved by overhead crane as well as forklifts?
Yes, we can customize the racks with lifting lugs (crane eyes) on the corners. This allows for versatile movement within plants that utilize overhead bridge cranes for moving heavy sheet metal bundles.
Q5: Are the dimensions customizable for different casing sizes?
Yes. While we have standard sizes (e.g., suitable for standard glass sheets), as an OEM manufacturer, we can adjust the length, width, and height of the rack to perfectly match the dimensions of your specific water heater panels or solar collectors.
