Collapsible A-frame glass rack dimensions and capacity

Stop shipping “air” back to the plant. In the glass distribution game, your profit margin isn’t just about the price of the float; it’s about the cost of the logistics loop. Traditional A-frames are stable, but they are logistical nightmares on the return trip. Our L-Shape system maintains the vertical stability your expensive Low-E and tempered lites demand, while compressing volume by 70% when empty. Talk With An Expert

The “Dead Freight” Problem: Why A-Frames are Costing You

If you are managing a fleet for a glass wholesaler or a window manufacturer, you know the pain of “dead freight.” You send out a truck fully loaded with IGUs or tempered panels. The delivery is made. Now, that truck has to come back. With standard welded A-frames, you are stacking maybe 20 empty racks in a 53-foot trailer. You are essentially paying for fuel and driver hours to transport steel air.

This is where the Collapsible A-frame glass rack dimensions and capacity become the most critical metric in your logistics chain. It’s not just about what it holds; it’s about how it folds (or nests).

Figure 1: Empty L-racks nesting “shopping cart style” to maximize return truck density.

The 90° Logic: Vertical Storage with a Safety Tilt

Unlike the symmetrical triangle of a traditional A-frame, our Grack (L-Rack) system utilizes a 90-degree vertical post with a calculated 3-5° safety tilt. This geometry is crucial for two reasons:

1. Nesting Capability: The L-shape allows empty racks to slide into one another. As shown in the image above, you can stack 7+ empty units in the footprint of a single rack. This reduces return logistics costs by up to 70%.
2. Floor Space Optimization: In your WIP (Work In Progress) staging areas, these racks can be pushed flush against a wall, unlike A-frames which waste the space behind them.

Technical Specs: Dimensions & Load Capacity

When you are moving 1/2″ laminated glass or heavy jumbo sheets, “approximately” isn’t good enough. You need precise engineering data to ensure safety and container optimization.

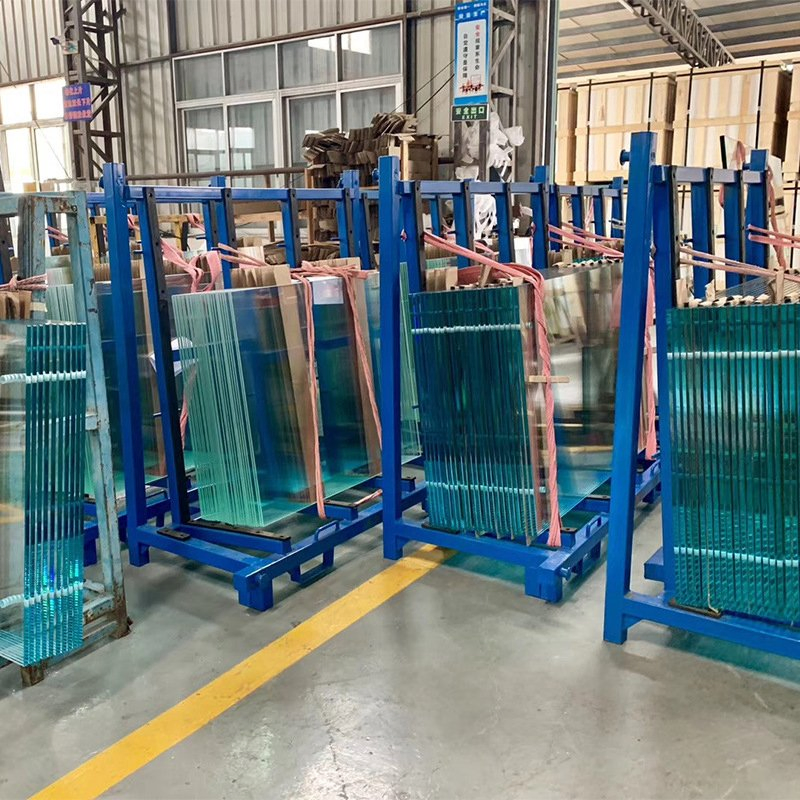

Figure 2: Heavy-duty structural design capable of supporting up to 4 tons of stone or glass slab.

Structural Integrity for “Jumbo” Loads

The Collapsible A-frame glass rack dimensions and capacity are engineered using Q235 steel square tubes (typically 60x60mm for main posts). We don’t spot weld; we use full seam welding. This is non-negotiable when you are transporting brittle materials like glass. A flexing rack means a cracked lite.

Zero-Contact Protection: The Steel-Core Difference

The number one cause of “shell chips” or edge damage during transport isn’t the truck hitting a pothole; it’s the glass cutting through the protection pad and hitting the steel rack. Once the glass touches steel (Metal-on-Glass contact), a stress riser is created, and the lite will likely run during tempering or installation.

Figure 3: Steel-core rubber profile screwed directly into the frame—no glue, no peeling.

We solve this with our proprietary Steel-Core Rubber Profile:

• Internal Steel Plate: A steel strip is vulcanized inside the rubber. Even if the glass edge is razor-sharp and heavy, it cannot cut through to the rack frame.
• Mechanical Fixation: We do not use glue. Glued pads fall off in hot warehouses or wet construction sites. Our profiles are screwed in with self-tapping screws. They stay there.
• Soft-Touch EPDM: The rubber hardness (Shore A 70-80) is calibrated to grip the glass firmly without damaging soft Low-E coatings.

Handling Versatility: From Factory to Jobsite

Your racks need to move. They need to go from the cutting line, to the tempering furnace, onto a truck, and eventually be lifted by a crane at a high-rise project.

Our racks are designed for multi-modal handling:

• Forklift Ready: Reinforced 4-way entry channels allow safe lifting from the bottom without damaging the glass.
• Crane Compatible: Integrated lifting lugs (ears) at the top corners allow for safe overhead lifting by tower cranes.
• Balance Blocks: Since L-racks are single-sided, we weld heavy steel counterweights at the rear base. This prevents the rack from tipping forward when fully loaded or tipping backward when empty.

Figure 4: Engineered forklift channels ensure safe transport within the warehouse and onto trucks.

Frequently Asked Questions (FAQ)

1. Can I stack these racks when they are fully loaded with glass?
No. The nesting/stacking feature is strictly for empty racks during return shipping or storage. When loaded with glass, they must be placed on the floor or transport vehicle deck. Stacking loaded racks is a severe safety violation.

2. How many empty racks fit in a standard 53′ semi-trailer?
Due to the nesting design, you can fit approximately 100-112 empty standard L-racks in a 53′ dry van or flatbed, compared to only ~20-24 traditional A-frames. This drastically cuts your return freight bills.

3. Will the rubber discolor or damage soft-coat Low-E glass?
No. We use non-marking, high-quality EPDM or urethane compounds specifically formulated for the glass industry. They are resistant to ozone and UV, ensuring they don’t degrade and leave residue on sensitive coatings.

4. Do you offer custom dimensions for oversized “Jumbo” sheets?
Yes. While our standard is 1600mm long, we regularly manufacture custom lengths (e.g., 2440mm / 96 inches) for clients handling Jumbo sheets or architectural facades. We can also adjust the “lip” depth for thicker stacks.

5. Are these racks galvanized or painted?
Standard finish is Electrostatic Powder Coating (usually RAL 5010 Blue). However, for racks used primarily outdoors or in high-humidity climates (like coastal glazing projects), we strongly recommend Hot-Dip Galvanizing (HDG) to prevent rust from compromising the structure or staining the glass.
