Aluminum extrusion storage rack

Stop scrapping high-value anodized profiles due to forklift damage. In the aluminum extrusion industry, surface finish is everything. Traditional floor stacking and static cantilever racks force you into a cycle of “double handling” and wide aisles. Our Aluminum extrusion storage rack system allows you to regain 50% of your floor space and switch to overhead crane handling—eliminating the risk of scratching soft aluminum surfaces.

Talk With An Expert

The Hidden Cost of Storing Aluminum Profiles: Why Static Racks Fail

As an aluminum fabricator or distributor, you are dealing with a material that is long, often flexible, and incredibly sensitive to surface damage. Whether you are storing raw mill finish extrusions, powder-coated architectural profiles, or precision heat sinks, the standard industry practice of using static cantilever racks creates three specific bottlenecks:

• The “Honeycombing” Effect: To access a specific bundle of 24ft profiles stored on the bottom level, your forklift driver has to move the three bundles in front of or above it. This “double handling” eats up 15-20 minutes of labor per pick and increases the chance of bending the material.
• Surface Damage (The Scrap Pile): Aluminum is soft. Every time a steel forklift tine slides under a bundle, you risk gouging the material. If you are handling anodized or polished aluminum, a single scratch renders the entire length useless.
• Aisle Width Waste: To maneuver a 20ft long bundle of extrusions with a forklift, you need aisles that are nearly 20ft wide. This is “dead air” in your facility that generates no revenue.

Figure 1: Eliminating forklift aisles by utilizing overhead cranes for safe aluminum bundle handling.

The Solution: 100% Access with the Aluminum Extrusion Storage Rack

The fundamental difference with our system is the Telescopic (Crank-Out) Mechanism. Unlike static racks where you have to reach in, our racks bring the material out to you.

Each level of the rack functions as a heavy-duty drawer. An operator can extend a fully loaded arm (holding up to 6,600 lbs of extrusions) 100% clear of the rack structure. This simple mechanical shift changes your entire logistics flow:

1. Switch from Forklifts to Overhead Cranes

Once the drawer is extended, the aluminum bundles are completely exposed from the top. You can now use an overhead crane with nylon slings or a vacuum lifter to pick up the material. This is the “Holy Grail” for aluminum handling because it eliminates steel-on-aluminum contact. You stop dragging forks across delicate surfaces, instantly reducing your scrap rate from handling damage to near zero.

2. High-Density Storage for Long Lengths

Because you are loading from above with a crane, you no longer need 15ft+ wide maneuvering aisles for forklifts. You can place rack units closer together, often condensing your storage footprint by 50%. This frees up valuable square footage for more CNC machining centers or packing stations.

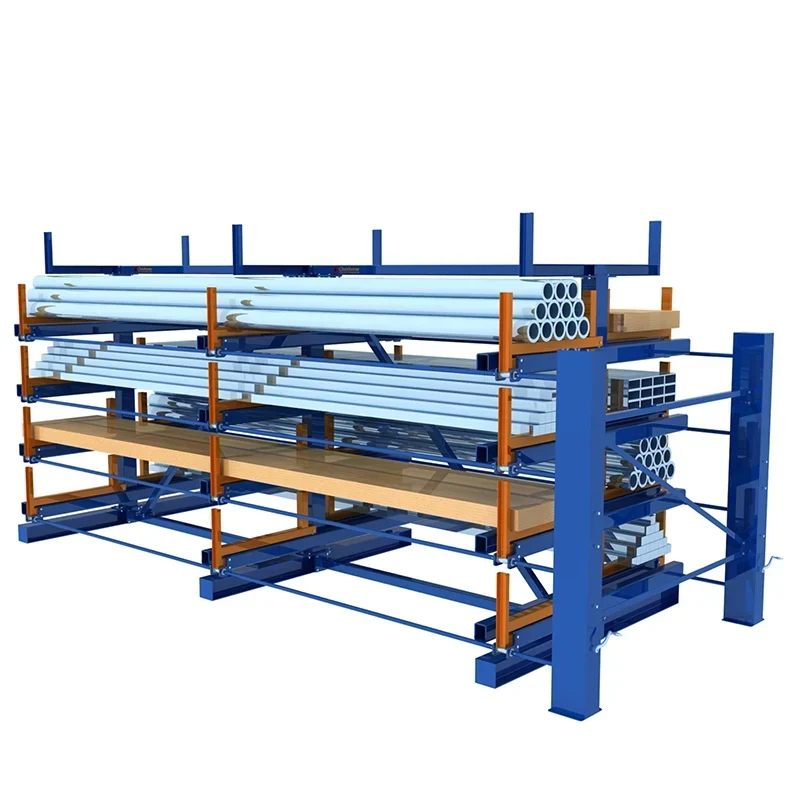

Figure 2: Adjustable dividers allow for organized separation of different extrusion dies and profiles.

3. Organizing High-Mix Inventory

Aluminum extruders often manage hundreds of different die shapes. As shown in the image above, our Aluminum extrusion storage rack can be fitted with adjustable divider pins. This allows you to store multiple SKUs (e.g., T-slots, window frames, and round tubes) on a single level without them getting mixed up. You achieve direct selectivity—you find the exact die shape you need, crank out the drawer, and lift it. No digging.

Technical Specifications Built for the Extrusion Industry

We don’t use light-gauge steel. Our racks are engineered to handle the extreme weight density of solid aluminum bars and the awkward lengths of hollow profiles.

Figure 3: Heavy-duty anchoring ensures stability even when fully loaded drawers are extended.

Safety and ROI: The Bottom Line

Investing in a telescopic Aluminum extrusion storage rack is not just about organizing your warehouse; it is about protecting your margins. If you reduce your material scrap rate by just 2% and decrease picking time by 50%, the system typically pays for itself within 12 to 18 months. Furthermore, by anchoring the system securely to your floor (as seen in Figure 3), you eliminate the risk of stack collapses that are common with floor-stacked pipes and tubes.

Frequently Asked Questions

Q1: Can we store anodized or powder-coated profiles without scratching them?
Yes. This is the primary advantage of our system. Because you access material via overhead crane using nylon slings (instead of steel forklift tines), and because we can line the rack arms with UHMW plastic strips, contact damage is virtually eliminated.

Q2: We handle 24ft (7.3m) standard lengths. Will the rack support this without sagging?
Absolutely. We configure the number of vertical columns based on the length and flexibility of your aluminum profiles. For 24ft lengths, we typically use 4 to 5 arm supports to distribute the weight evenly and prevent the aluminum from bowing or taking a permanent set.

Q3: How much space can I actually save?
Most aluminum fabricators see a 40% to 60% reduction in floor space usage. By removing the need for 15ft forklift aisles and utilizing vertical height (up to 5 or 6 levels high), you condense your storage footprint significantly.

Q4: Is the manual crank difficult to operate with a full load of solid bars?
No. The system uses a geared transmission ratio. Even with a full 6,000 lb load, a single operator can crank the drawer out with about 30 lbs of force. It is designed to be ergonomic and safe.

Q5: Can this system handle the leftovers/short ends from our cutting saw?
Yes. We can install steel decks or wire mesh pans on specific shelf levels to create a solid surface. This allows you to store short “drops” or off-cuts ranging from 2ft to 5ft long, keeping your saw area clean and organized.
