Precision 100mm Gap Design for Efficient Portable Stack Racks

In high-volume warehouse operations, equipment efficiency directly impacts productivity. This case study details how a custom-engineered 100mm nesting gap in our **portable stack racks** dramatically improved forklift efficiency and safety for a client storing 1800mm-tall palletized goods.

The Challenge: Optimizing Forklift Access for Nested Racks

The client required two-tier stacking capability but identified a critical operational bottleneck:

• Precision Access Problem: Standard nested racks had insufficient clearance for smooth forklift operation, causing frequent collisions during empty rack retrieval.
• Specific Requirement: The client mandated exactly 100mm vertical clearance between nested units to match their forklift tine dimensions and operator workflow.

Engineered Solution: Operator-Centric Portable Stack Racks

Our solution combined specialized dimensions with precision engineering:

Tailored Frame for 1200×800mm Loads

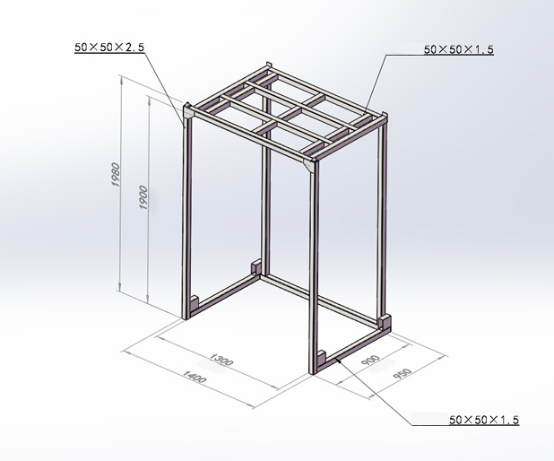

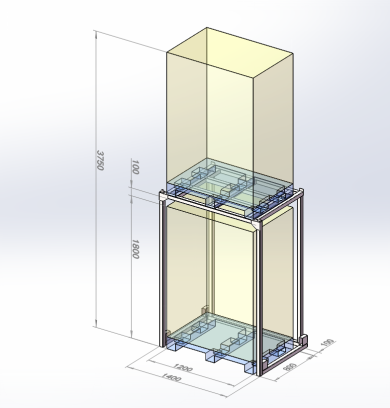

We designed inverted **portable stack racks** (1300×900×1900mm internal dimensions) with optimized clearances around the 1200×800×1800mm unit loads, ensuring safe pallet access.

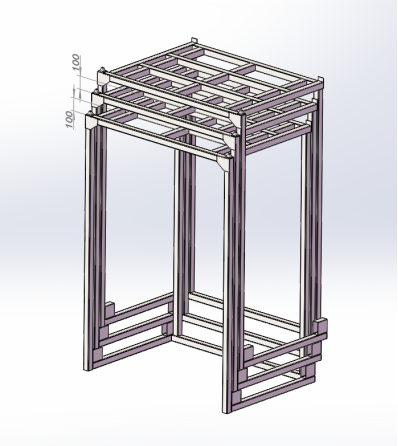

The Critical 100mm Nesting Gap

Our engineering team achieved the requested clearance through:

• Precise recalculation of support tube heights
• Strategic structural redesign of base components
• Meticulous manufacturing tolerances (±2mm)

This innovation delivered measurable benefits:

• 45% Faster Forklift Cycle Times: Operators insert tines accurately on first attempt
• Reduced Equipment Damage: Eliminated collisions between tines and rack frames
• Enhanced Safety: Prevents destabilization during empty rack retrieval

Logistics Optimization

Complementing the design, we implemented a diagonal stacking method that fit 52 racks in a single 40-foot container, reducing transport costs by 22%.

Conclusion: Operational Excellence Through Precision Engineering

This case demonstrates how millimeter-perfect design in **portable stack racks** creates disproportionate operational gains. The client achieved 50% faster empty rack handling while eliminating collision-related maintenance. By solving workflow-specific pain points, we transform storage equipment into productivity multipliers.

Experiencing operational bottlenecks? Contact us to engineer **portable stack racks** optimized for your workflow.
