How CFS Vertical Sheet Metal Racks Optimize Workshop Layouts

1. The $62,500 Cost of Poor Workshop Layouts

Case Study: Midwest Metalworks
● John Carter, plant manager at an Ohio fabrication shop, faced daily bottlenecks from horizontal sheet stacks: 2 hours/day wasted : Workers spent 100+ minutes shifting sheets to access lower layers.
●  ** 36,000/yearlaborloss ∗∗ :At30/hour, inefficiency drained productivity.
●  12 near-misses/month : Crowded aisles increased collision risks.
“Chaotic storage was our biggest profit killer,” John explained.
Hidden Costs :
●  15% staff turnover : Fatigue from manual handling.
●  20% longer lead times : Missed deadlines hurt client retention.

2. Why Horizontal Stacking Fails Workshops

Traditional Storage Pitfalls :
●  50% space waste : Flat layouts ignore 12–20 ft ceiling heights.
●  3x access time : Retrieving bottom sheets takes 5+ minutes.
●  OSHA risks : 30% higher injury rates in cramped shops.
Standard Shelving Limitations :
● Static designs limit vertical density.
● No roll-out access forces manual lifting.

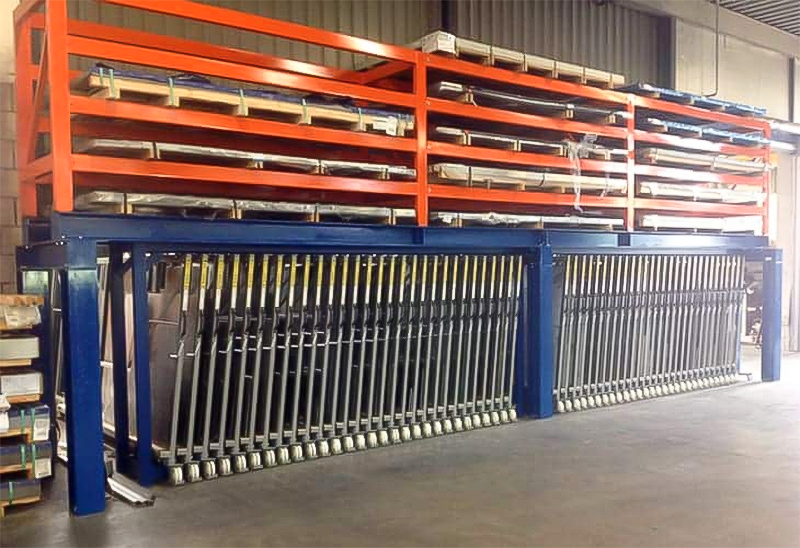

3. CFS Vertical Sheet Metal Storage: High-Density Efficiency

Engineering Solutions :
●  Roll-out shelves : 1,500 lb capacity drawers glide smoothly on industrial rails.
●  Vertical density : Stores 8x more sheets/sq ft than flat stacking.
●  Modular heights : 8–24 ft configurations match shop ceilings.
Midwest Metalworks’ Results :
●  60% faster access : 2-minute retrievals vs. 5+ minutes previously.
●  ** 62,500saved/year ∗∗ :12,500 labor + $50,000 accident reduction.
●  20% output boost : Tidy floors enabled faster forklift movement.

4. Case Study: Precision Fab’s 40% Space Recovery

After installing CFS vertical sheet metal racks , this Michigan shop achieved:
●  500→200 sq ft : Freed space for 2 additional CNC stations.
●  $78,000 annual gain : 15% faster order fulfillment attracted premium contracts.
●  Zero OSHA incidents : 18 months accident-free.
“The racks paid for themselves in 10 months,” said their operations lead.

5. Why CFS Outperforms Alternatives

●  Vs. stacking : 8x vertical density reduces floor footprint by 60%.
●  Vs. shelving : Roll-out drawers cut retrieval effort by 70%.
●  Durability : 14-gauge steel frames withstand 20+ years of daily use.

6. Implementing Your CFS Solution

Customization Guide :
●  Load tiers : 800–2,200 lb drawers for 16GA to 1” steel.
●  Safety features : Laser-cut labels, anti-tilt locks, and caster brakes.
●  Layout audit : Free CFS consultations map rack placement to workflow.
Maintenance :
● Clean rails weekly; lubricate monthly.
● Torque-check bolts biannually (90–100 Nm).
