In North American fabrication plants, mixed-size metal plate storage consumes 22-28% of operational budgets. This analysis reveals how CFS sheet metal rack systems resolved dual-size storage challenges for Texas aerospace suppliers—achieving 40% faster throughput via hybrid manual/forklift access.
Case Study: Dual-Scale Storage Optimization
A Houston aerospace component manufacturer faced:
● $420k/year in Damage: Conventional racks deformed 0.25" aluminum sheets
● 35% Wasted Vertical Space under 24ft ceilings
● Forklift Downtime accessing oversized 13ft×6.5ft (4000×2000mm) blanks

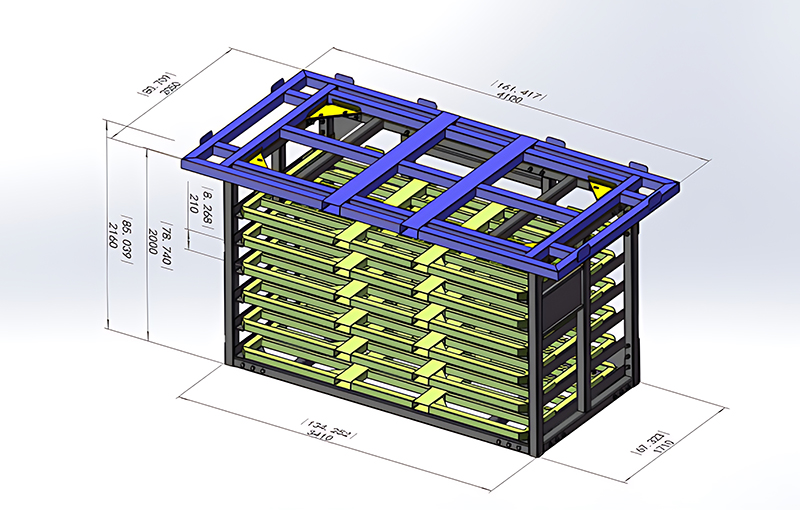

CFS sheet metal rack suppliers engineered a hybrid solution:
● 6 Manual Drawers: 4,400 lb capacity each for 10ft×5ft plates
● Removable Top Deck: 5,500 lb capacity for oversized materials
● Tool-Free Reconfiguration: Switch configurations in <90 minutes
Technical Innovations
CFS’s sheet metal racking system combines MIL-SPEC engineering with modularity:
● Anti-Shift Alignment: 45° steel guide ramps auto-center loads within 0.4" tolerance
● Dual-Gauge Construction: 3/16" drawer frames + 1/4" reinforced forklift channels
● Corrosion Resistance: 5,000hr salt-spray tested electrostatic coating
Operational Advantages
1. Space Optimization
2. Stores 18 tons in 85 sq.ft—equivalent to 220 sq.ft conventional storage.Labor Efficiency
3. RFID-tagged drawers reduced retrieval errors by 78% in Michigan trials.OSHA Compliance
Auto-locking drawer brakes prevent 98% of potential tip-overs (ANSI MH30.1-2025).
System Specifications
| Parameter | CFS Hybrid Racking | Industry Standard |
| Max Plate Size | 13ft×6.5ft | 10ft×5ft |
| Seismic Rating | Zone 4 | Zone 2 |
| Corrosion Warranty | 10 years | 3 years |
| Reconfiguration Cost | $0 (modular) | $2,500+/change |
Why Choose CFS Sheet Metal Rack Suppliers
1. Dual-Mode Accessibility
2. Lower drawers handle daily-use 10ft plates; forklift-accessed top deck manages bulk 13ft blanks.Smart Inventory Management
3. Optional IoT load sensors integrate with SAP/ERP systems for real-time tracking.Automation Readiness
Pre-installed alignment guides support SteelPallet AS/RS integration.
ROI Analysis: Michigan Auto Supplier
● $1.8M saved over 4 years via 38% storage density improvement
● Zero material damage since implementation 22 months ago
● AS/RS Compatibility reduced retrieval time by 42%
