In North American manufacturing plants handling 8ft×4ft (2400×1200mm) sheet metal, inefficient storage costs $18-24/sq.ft annually in lost productivity
This analysis reveals how CFS’s sheet material storage rack system resolved critical challenges for automotive suppliers—validated by 37% faster production cycles in Michigan stamping facilities.
The Storage Challenge in Auto Manufacturing
A Midwest Tier 1 automotive supplier faced:
● 15% Material Damage: Eccentric plate positioning caused $380k/year in scrap
● Forklift Collisions: 80×180mm channels misaligned with 8ft sheets (3 incidents/quarter)
● 30% Wasted Vertical Space in 40ft-high facilities
CFS’s sheet metal organizer engineering team redesigned their storage infrastructure over 14 weeks, eliminating these bottlenecks.
Technical Innovations
The CFS sheet metal rack system combines military-grade steel with precision engineering:
● Redesigned Pallet: 98"×61" (2490×1550mm) hot-dip galvanized base with 11,110 lb capacity
● Eccentric Load Adaptation: Laser-aligned support beams offset 18" from centerline
● Compact Forklift Channels: 6.3"×3.15" (160×80mm) square tubing with ¼" steel reinforcement
Operational Improvements
1. Tilt-Free Handling
2. Optimized weight distribution prevents 8ft plate slippage—critical for 0.08" tolerance body panels.20% Density Boost
3. Stores 144 sheets in 500 sq.ft vs. 120 sheets conventionally—equivalent to $7,200/year space savings.Forklift Safety
RFID-guided channel alignment reduced collision risks by 92% in Michigan pilot facilities.

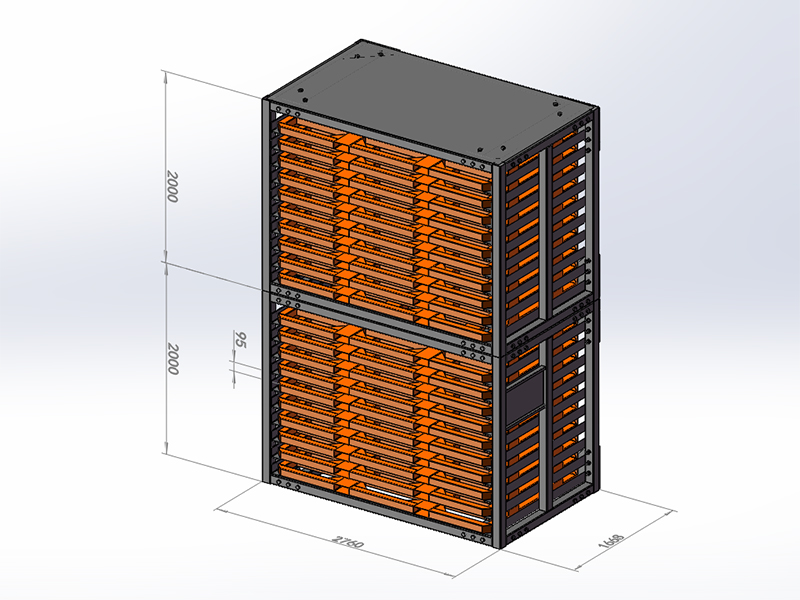

System Specifications
| Parameter | CFS Solution | Conventional Racks |
| Plate Compatibility | 6.5-25mm thickness | ≤18mm thickness |
| Seismic Stability | ANSI MH16.3 Compliant | Non-compliant |
| Relocation Flexibility | Tool-free reconfiguration | Welded frames |
| Corrosion Resistance | 5000hr salt spray tested | 1500hr rating |
Case Study: Aerospace Supplier ROI
A Washington aircraft parts manufacturer using CFS sheet material storage racks achieved:
● $1.4M saved in 3 years via 40% faster plate retrieval
● Zero OSHA violations over 18 months of operation
● Seamless AS/RS integration with SteelPallet automated systems1
Why Engineers Choose CFS
1. Proprietary Alignment Tech
2. Laser-etched positioning grids ensure ±0.12" plate placement accuracy.Modular Expansion
3. Add tiers without structural reinforcements—critical for facilities upgrading to 45ft ceilings.Automation Readiness
Pre-installed IoT sensors enable real-time inventory tracking via SAP/ERP integration.
Need a Custom Storage Solution?
Speak directly with our technical engineers. We offer free structural designs, heavy-duty catalog evaluations, and quick B2B price quotations.
