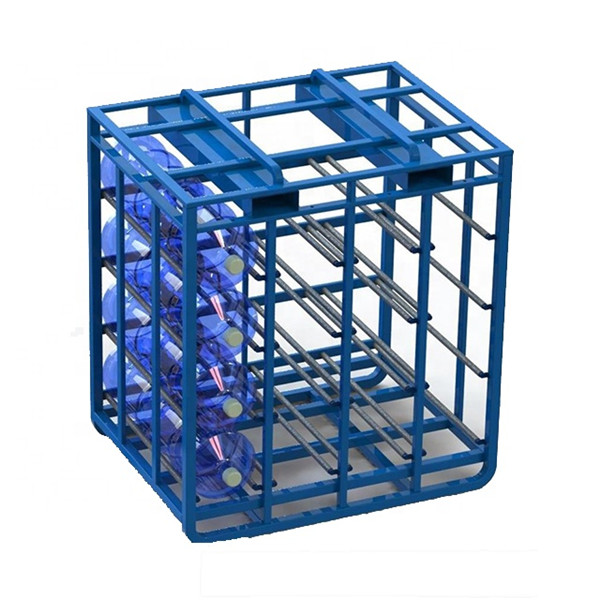

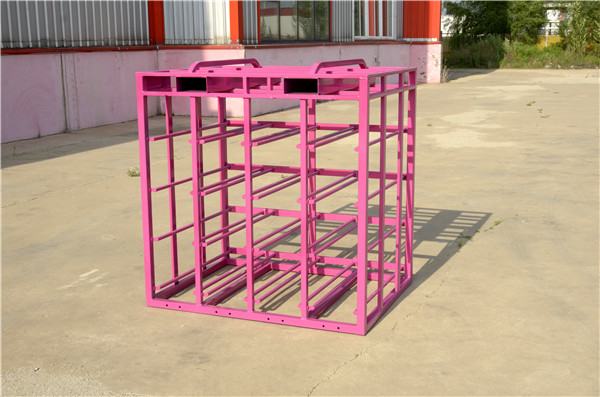

5 gallon Barrel Water Transport Rack
The stack barreled water rack is used for the transportation and storage of barreled drinking waterMeet the needs of large quantities of buckets of water repeatedly transferred and safe stacked storage bucket of warter rack products.
| Main materials | Carbon steel rectangular pipe |
| Anti-collision sheath material | Rubber |
| Bucket placement Form | Horizontal |
| Surface treatment | Electrostatic power coating |
| Number of loads in a single channel | 3～5 sets |
| Single channel loading capacity | 150kg |
| Maximum number of stacking layers | 4Layer |
| Products specification |
1265×950×1330（18.9L type bracket） Total 36 barrels |
| Static loading | 1000kg |
| Number of stackable layers | 4 layers |
| Deadweight | 124kg |

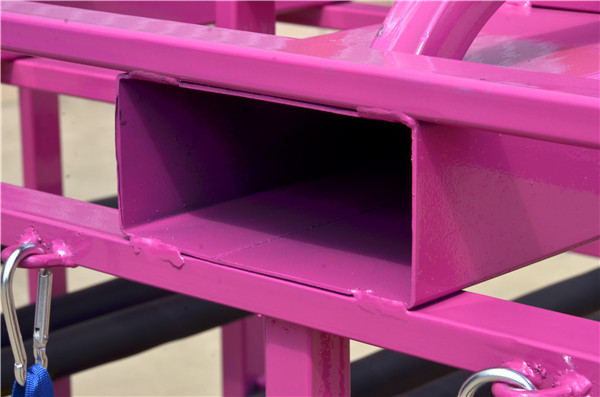

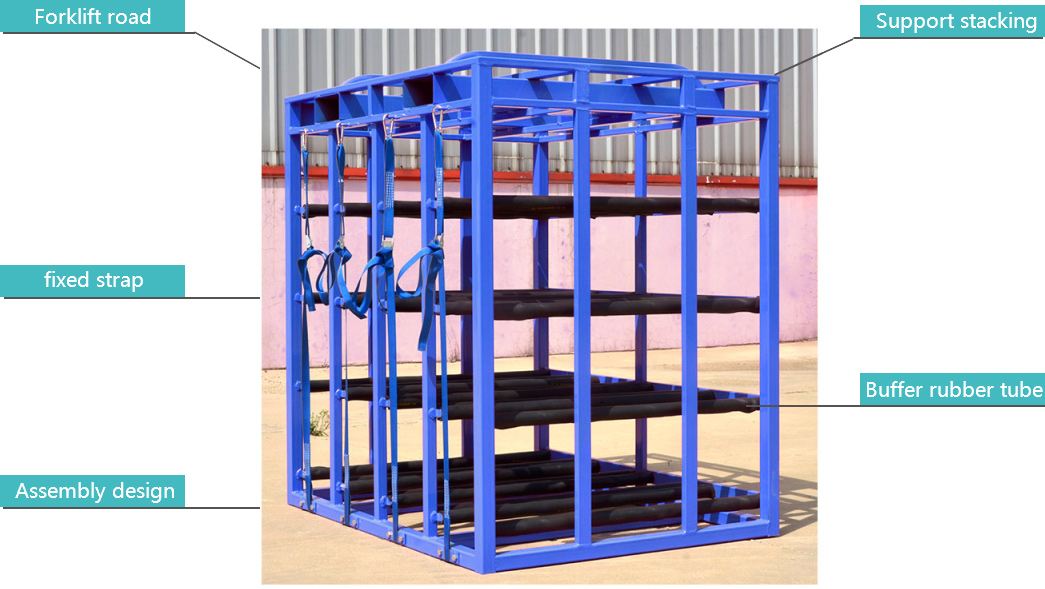

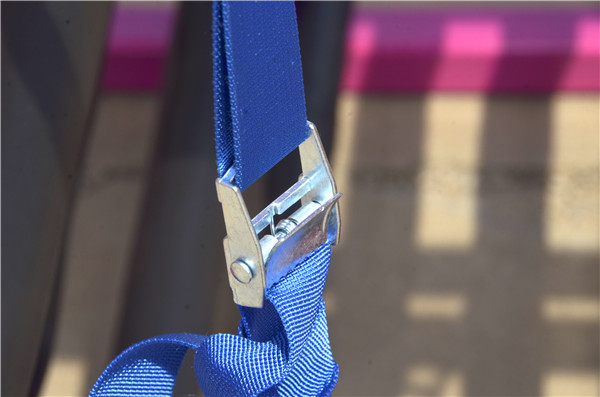

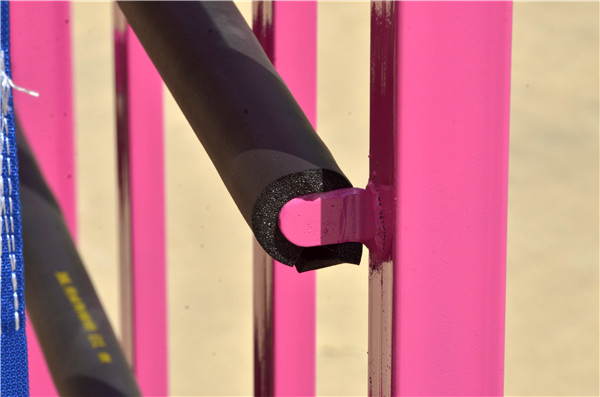

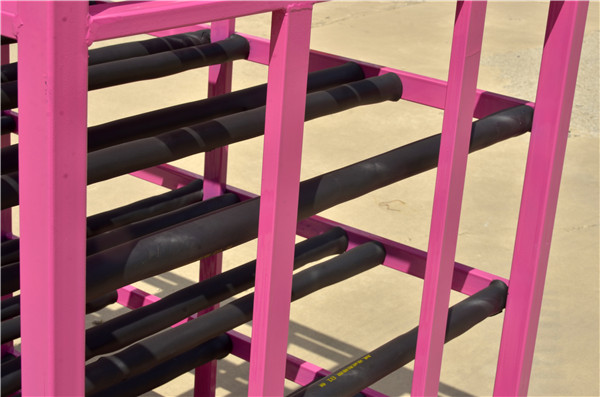

which is to meet the demand of manufacturers who need to transfer a lot of small bottled water by bottled water rack, our 5 gallon water bottle rack is the best choice. The water jug storage rack can be fully loaded palletized storage. With large capacity it can hold 32 barrels for each transport, the barrel space is independent,no need to stack and take out in sequence. Save space. The upper part is equipped with a forklift road, which can be stacked and transported during use. The rubber tube is equipped in the position of contact with water bucket and plays a vital role in protecting the surface of the bucket. The round tube kit is assembled with bolts, and the rubber tube is a consumable part, which is more convenient to replace. At the same time, the entrance and exit are tied with fixed strap to prevent the bucket from falling during transportation.
Storage and Access: When storing the bucket, the bucket is successively sent into the stack barreled water rack from the inlet and outlet. And then the barrier lashing hook at front end of the bucket storage rack hang on the top of the ring type buckle, the bucket storage completed. When taking out the bucket, return it according to the above procedure;

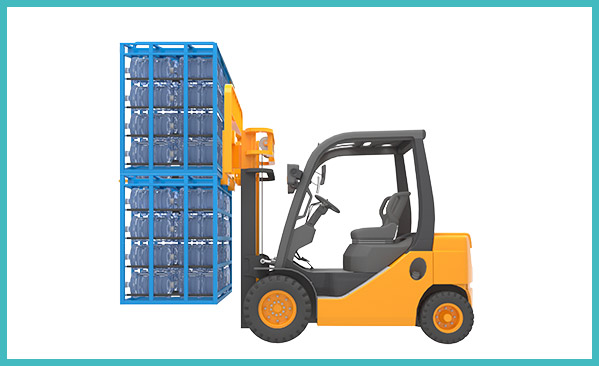

Stacking: Insert the fork teeth into the forklift road to be stacked onto the upper side of the bottled water rack,then lift to a sufficient height and adjust the position of the forklift so that the upper bucket rack and the lower bucket rack are aligned. And then slowly drop, confirming that the top beam of the bottom barreled water rack enters the upper barreled water rack’s frame slot. Drop and complete stacking.
